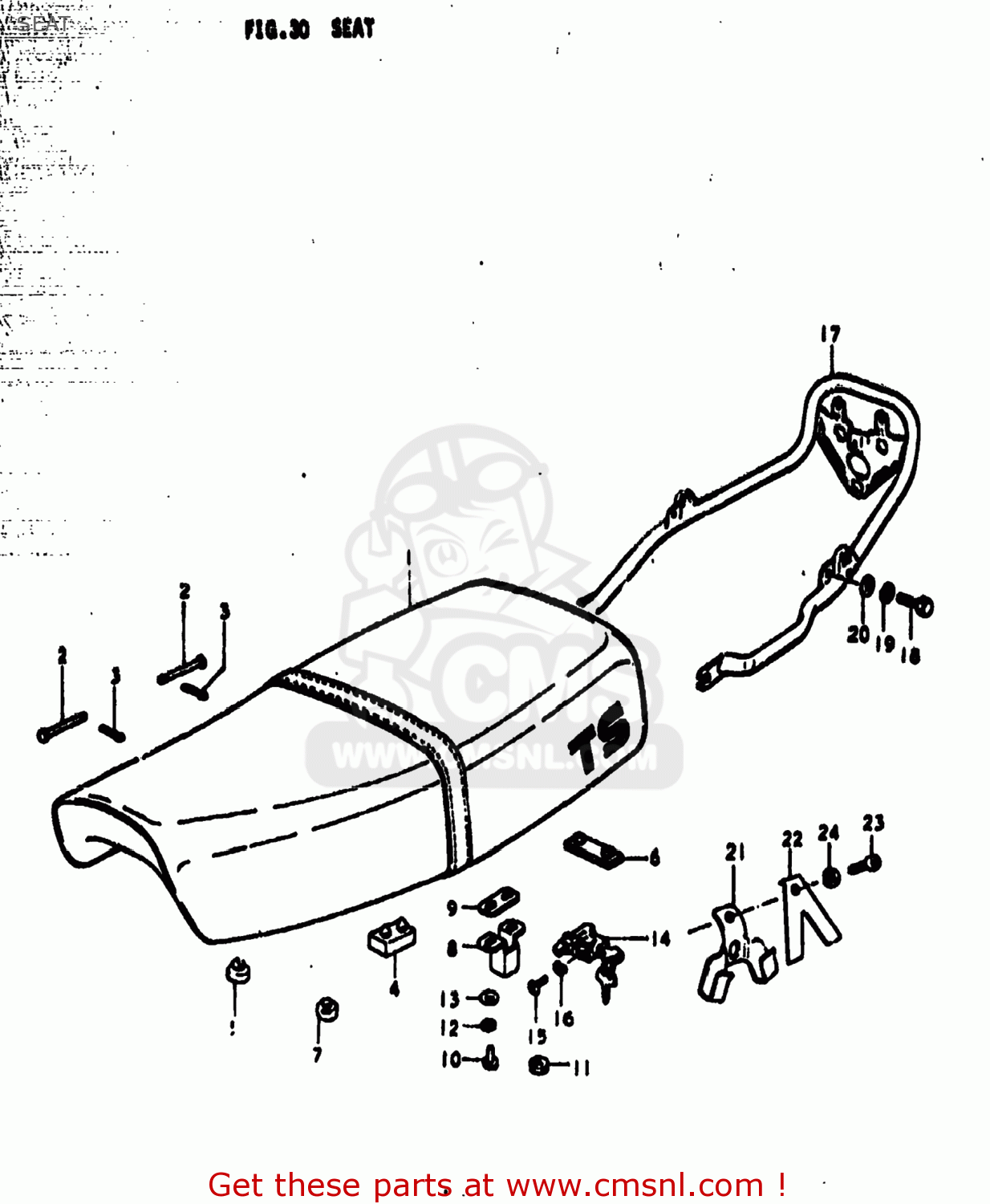

SEAT

ref

part #

description

quantity

1-1

4510029300865
ref: 1-1
45100-29320-865

SEAT ASSEMBLY

€ 233.50

1-2

4510029320865
ref: 1-2

SEAT ASSEMBLY

€ 233.50

2

0920006018
ref: 2

PIN

€ 2.00

3

0411120158
ref: 3
04111-2015A

PIN

€ 1.50

4

0932108006
ref: 4

CUSHION

€ 3.00

5

0932110002
ref: 5

CUSHION(11.5X22X20)

€ 2.00

6

0932108009
ref: 6

CUSHION

€ 4.00

7

0932110001
ref: 7

CUSHION

€ 2.50

8

4521329300
ref: 8

PLATE,CLAMP GUIDE

€ 7.00

9-1

4521745001
ref: 9-1

SHIM,SEAT LOCK STRIKER

€ 3.50

9-2

0916008043
ref: 9-2

WASHER(8.5X18X1)

€ 1.50

10

0110706128
ref: 10
01500-06127

BOLT

€ 2.00

11

0831011068
ref: 11
08310-00067

NUT

€ 2.50

12-1

0832121068
ref: 12-1
08321-01067

LOCK WASHER

€ 2.50

12-2

0832131068
ref: 12-2
08321-01067

LOCK WASHER

€ 2.50

13

0832221068
ref: 13
08322-01067

WASHER

€ 2.00

14-1

9570030831
ref: 14-1
95700-30832

LOCK ASSEMBLY,SEAT

€ 54.00

14-2

9570030832
ref: 14-2

LOCK ASSY,SEAT

€ 54.00

15

0211205128
ref: 15
02112-05127

SCREW

€ 2.50

16

0832121058
ref: 16
08321-0105A

LOCK WASHER

€ 2.00

17

4158029300
ref: 17

BAR,REAR COMBINATION LAMP

€ 37.50

18

0110708208
ref: 18
01500-08207

BOLT

€ 3.00

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0832221088
ref: 20
08322-01087

WASHER

€ 2.00

21

9572130500
ref: 21

HOLDER,HELMET

€ 12.50

22-1

9572230500
ref: 22-1
95722-30501

SPRING OPT

€ 6.00

22-2

9572230501
ref: 22-2

SPRING OPT

€ 6.00

23

0211206128
ref: 23
02112-06127

SCREW 6X12

€ 2.00

24

0832121068
ref: 24
08321-01067

LOCK WASHER

€ 2.50

all assemblies
