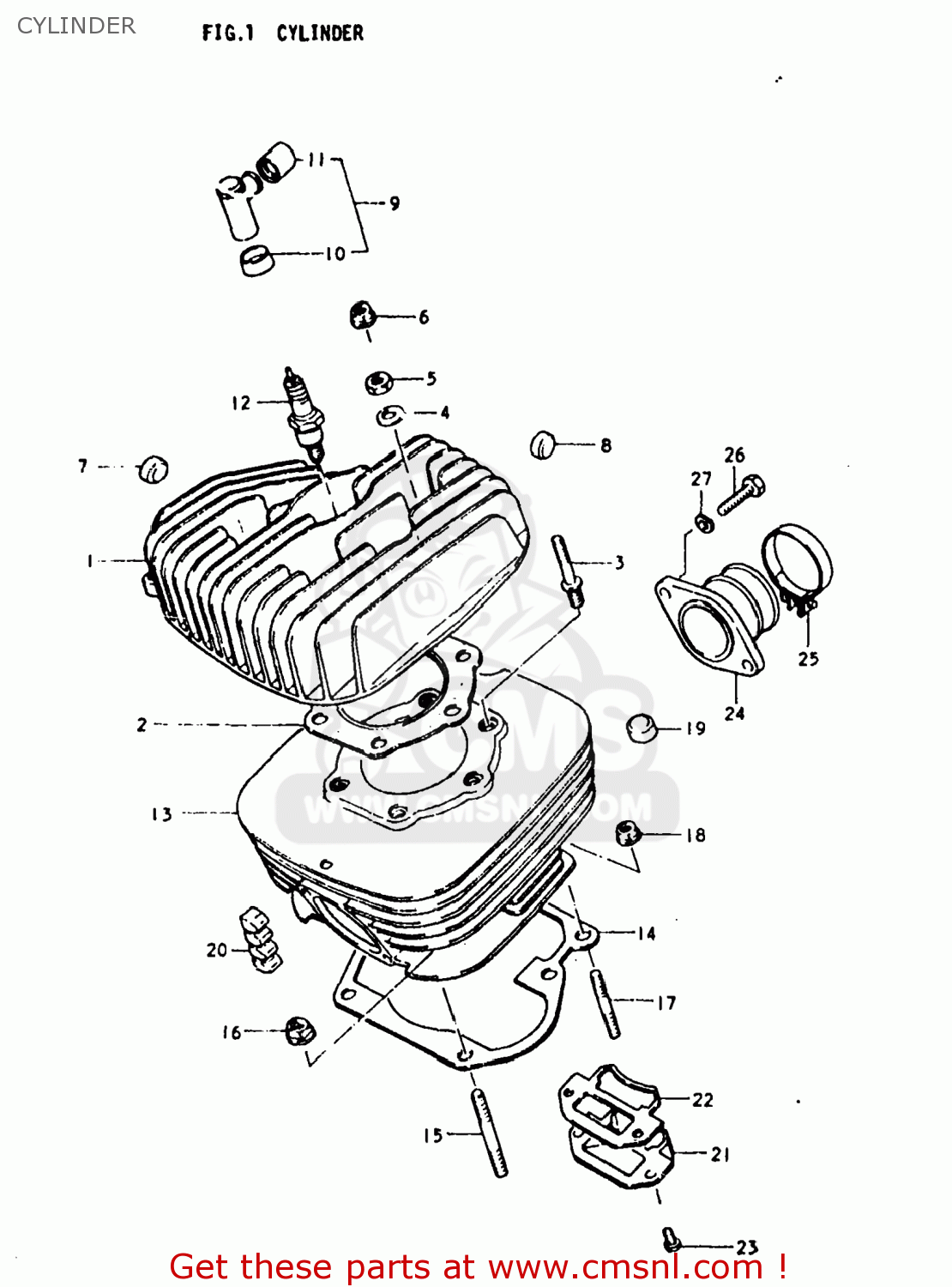

CYLINDER

ref

part #

description

quantity

1-1

1111130501
ref: 1-1
11111-30503

HEAD,CYLINDER

€ 275.00

1-2

1111130502
ref: 1-2
11111-30503

HEAD,CYLINDER

€ 275.00

2-1

1114130083
ref: 2-1
11141-30900

GASKET,CYLINDER HEAD (NAS)

€ 31.00

2-2

1114130084
ref: 2-2
11141-30900

GASKET,CYLINDER HEAD (MCA)

€ 31.00

3

0910808018
ref: 3

BOLT,STUD

€ 4.00

4

0832221088
ref: 4
08322-01087

WASHER

€ 2.00

5

0914008005
ref: 5
09140-08017

NUT (8MM)

€ 1.50

6

0831616088
ref: 6
08316-10087

NUT

€ 2.50

7

1125228000
ref: 7
11252-13630

PAD,CYLINDER

€ 2.00

8

1125238001
ref: 8

PAD,CYLINDER HEAD

€ 3.50

9

3350069810
ref: 9

CAP,SPARK PLUG

€ 29.50

10

3354169010
ref: 10

SEAL,SPARK PLUG

€ 5.00

11

3354298000
ref: 11
33542-38B00

SEAL,SPARK PLU

€ 4.50

12-1

0948200091
ref: 12-1

PLUG,SPARK

€ 3.00

12-2

0948200092
ref: 12-2
09482-00247-111

PLUG,SPARK(W24ES)

€ 3.50

12-3

0948200139
ref: 12-3

PLUG,SPARK(BP7ES)

€ 4.00

12-4

0948200140
ref: 12-4

SPARK PLUG W22EP

€ 3.00

13-1

1121030500
ref: 13-1
11210-30900

CYLINDER

€ 388.00

13-2

1121030510
ref: 13-2
11210-30900

CYLINDER

€ 388.00

14

1124141100
ref: 14
11241-41100-H17

GASKET,CYLINDER (MCA)

€ 12.50

15

0142110258
ref: 15
01421-1025B

STUD 10X25

€ 3.00

16

0831616108
ref: 16
08316-10107

NUT

€ 2.00

17

0142108258
ref: 17
01421-0825A

STUD 8X25

€ 2.50

18

0831616088
ref: 18
08316-10087

NUT

€ 2.50

19

1125238001
ref: 19

PAD,CYLINDER HEAD

€ 3.50

20

1125130500
ref: 20
11251-30530

PAD,CYLINDER

€ 6.00

21-1

1315041111
ref: 21-1
13150-41113

VALVE ASSEMBLY,REED

€ 118.50

21-2

1315041113
ref: 21-2

VALVE ASSY,REED

€ 118.50

22

1315641100
ref: 22
13156-41100-H17

GASKET,REED VALVE (MCA)

€ 4.50

23

0211206208
ref: 23
02112-06207

SCREW

€ 2.00

24

1311030500
ref: 24

PIPE,INTAKE

€ 47.50

25

0940246306
ref: 25
09402-46208

CLAMP

€ 4.50

26

0110708208
ref: 26
01500-08207

BOLT

€ 3.00

27

0832121068
ref: 27
08321-01067

LOCK WASHER

€ 2.50
