FRONT FORK
TS250 1977 (B) USA (E03)

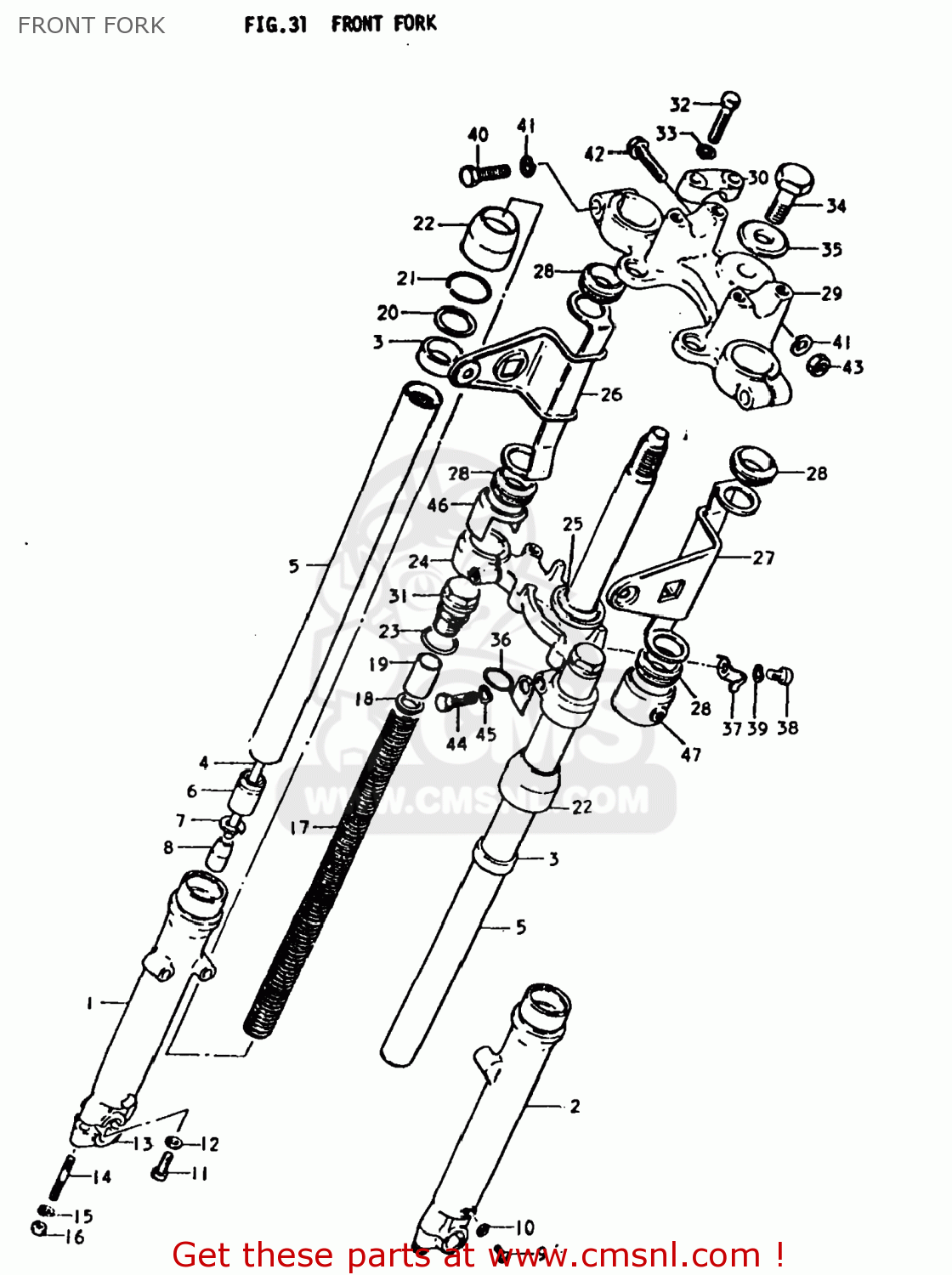

Front fork diagram TS250 1977 (B) USA (E03)
FRONT FORK TS250 1977 (B) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
0
5110030550291
ref: 0
51100-30551-291
DAMPER SET
€ 244.00
1
5113030540
ref: 1
TUBE,OUTER,RIGHT
€ 76.00
2
5114030540
ref: 2
TUBE,OUTER,LEFT
€ 62.00
3
5115334010
ref: 3
SEAL,OIL
€ 15.00
4
5115832110
ref: 4
RING,FORK BACK UP
€ 3.00
5
5115632110
ref: 5
CIRCLIP,FORK OIL SEAL
€ 6.00
6
5114716510
ref: 6
BOLT,FORK CYLINDER(10X25)
€ 3.50
7
5114841310
ref: 7
GASKET (NAS)
€ 2.50
8
5119541210
ref: 8
51195-49071
PIECE,OIL LOCK
€ 12.00
9
5114630540
ref: 9
CYLINDER,FRONT FORK
€ 30.00
10
5111030540
ref: 10
51110-30541
TUBE,FORK,INNER
€ 67.50
11
5157130540
ref: 11
51571-38215-34S
BOOT
€ 45.00
12
5157541410
ref: 12
BAND,BOOT
€ 8.00
13
0211204168
ref: 13
02112-0416A
SCREW
€ 1.00
14
5117130540
ref: 14
SPRING,FRONT FORK
€ 13.00
15
5117238010
ref: 15
GUIDE,FRONT FORK SPRING C
€ 9.50
16
5117649000
ref: 16
SPACER,FRONT FORK SPRING
€ 3.50
17
5135130520
ref: 17
CAP,FORK INNER TUBE
€ 9.00
18
5111716310
ref: 18
O RING
€ 4.50
19
5118930520
ref: 19
CAP,FR FORK
€ 11.50
20
5155641410
ref: 20
GASKET
€ 6.00
21
5153030550291
ref: 21
BRACKET,HEADLAMP HOUSING
€ 21.00
22
5154030550291
ref: 22
BRACKET,HEADLAMP,LEFT
€ 21.00
23
5141030540019
ref: 23
STEM,STEERING
€ 71.50
24
5162133001
ref: 24
RACE,STEERING OUTER LWR
€ 10.00
25
5131130540291
ref: 25
HEAD,STEERING STEM
€ 40.50
26
5621130540291
ref: 26
56211-29320-291
HOLDER,HANDLEBAR
€ 12.00
27
0832121088
ref: 27
08321-01087
LOCK WASHER
€ 2.00
28
0110708358
ref: 28
01500-0835B
BOLT
€ 3.50
29
5135641310
ref: 29
WASHER
€ 6.00
30
5135130540
ref: 30
BOLT,STEERING STEM HEAD
€ 5.00
31
0110412408
ref: 31
01500-12403
BOLT
€ 3.00
32
0832121128
ref: 32
08321-01127
WASHER,LOCK 12
€ 2.50
33
0110708558
ref: 33
01500-08557
BOLT 8X55
€ 3.00
34
0832221088
ref: 34
08322-01087
WASHER
€ 2.00
35
0831012088
ref: 35
08310-00087
NUT
€ 2.00
36
5145530540
ref: 36
CLIP
€ 5.50
37
0110712458
ref: 37
01500-12457
BOLT 12X45
€ 5.50
38
0832211128
ref: 38
08322-01127
WASHER
€ 2.00
39
5145532400
ref: 39
51455-29330
GUIDE,CABLE
€ 5.50
40
0110708608
ref: 40
01500-0860B
BOLT
€ 2.50
41
5145305110
ref: 41
CLIP,BRAKE CABLE
€ 4.50
42
0211206108
ref: 42
02112-06107
SCREW
€ 1.50
43
0832121068
ref: 43
08321-01067
LOCK WASHER
€ 2.50
44
0211104087
ref: 44
02112-04087
SCREW
€ 1.50
45
5118303010
ref: 45
GASKET,DRAIN,PLUG (NAS)
€ 3.00
