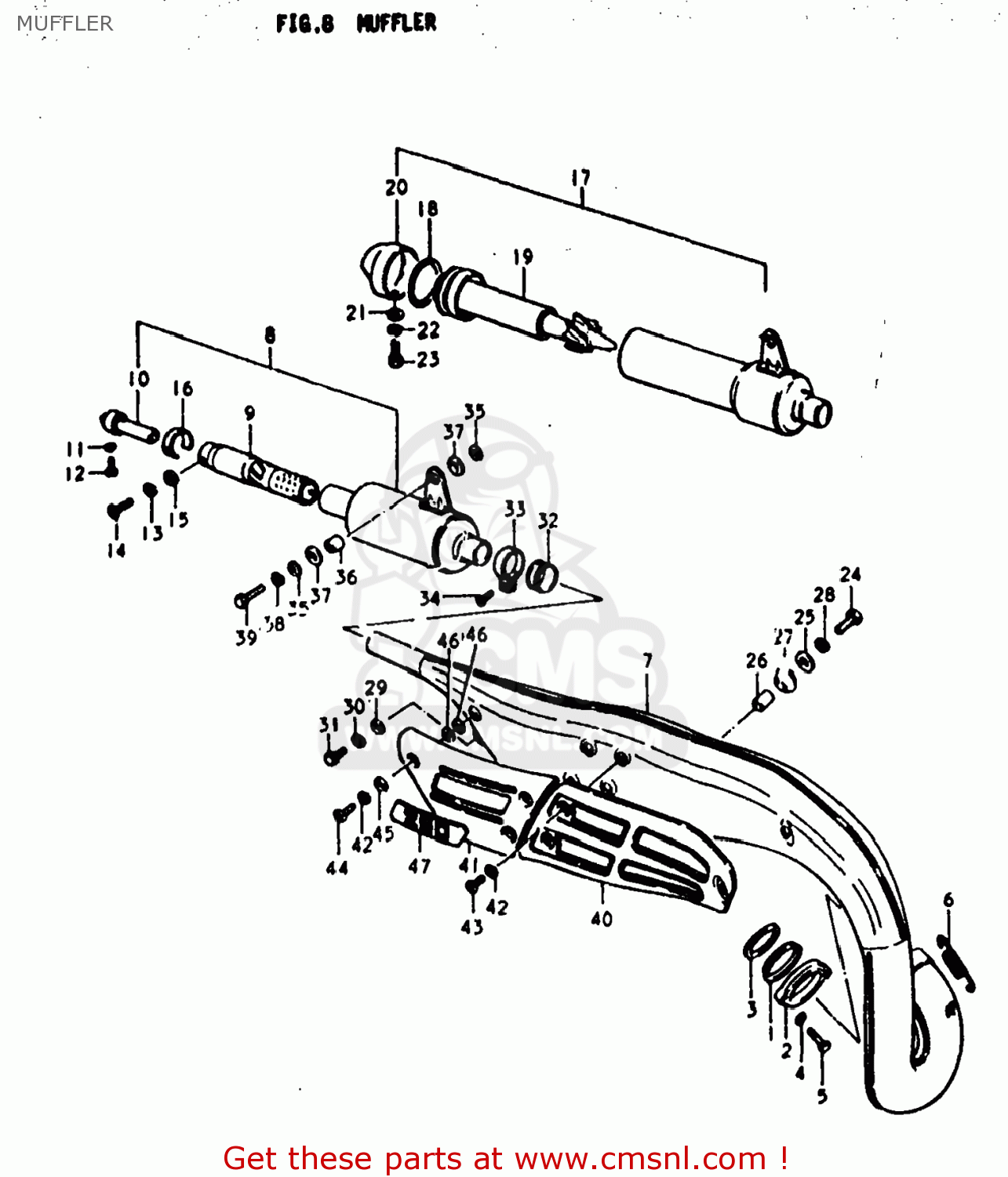

MUFFLER

ref

part #

description

quantity

1

1418130080
ref: 1

GASKET,EXHAUST PIPE (NAS)

€ 11.50

2

1418230000
ref: 2

CLAMP,EXHAUST PIPE

€ 36.50

3

1418430010
ref: 3
14184-30020

GASKET,EXHAUST PIPE

€ 5.50

4

0832121068
ref: 4
08321-01067

LOCK WASHER

€ 2.50

5

0110706258
ref: 5
01500-06257

BOLT

€ 2.00

6

0944311002
ref: 6

SPRING

€ 4.50

7

1431030500
ref: 7
14310-30500-H01

BODY,MUFFLER

€ 205.00

8

1430330600
ref: 8
14303-30600-H01

MUFFLER ASSEMBLY

€ 98.50

9

1481038601
ref: 9

ARRESTER,SPARK

€ 62.00

10

1485038601
ref: 10

TUBE,MUFFLER CLEAN OUT

€ 32.50

11

0832121058
ref: 11
08321-0105A

LOCK WASHER

€ 2.00

12

0211205088
ref: 12
02112-05087

SCREW

€ 2.00

13

0832121068
ref: 13
08321-01067

LOCK WASHER

€ 2.50

14

0912806013
ref: 14

SCREW(6X8)

€ 1.50

15

0832221068
ref: 15
08322-01067

WASHER

€ 2.00

16

1484338600
ref: 16

BAND,SPARK ARRESTER

€ 3.50

17

1430330510
ref: 17
14303-30510-H01

MUFFLER ASSEMBLY

€ 62.00

18

0928055001
ref: 18

O-RING (D:3.5 ID:54.4)

€ 5.50

19

1485030510
ref: 19

TUBE,MUFFLER CLEAN OUT

€ 22.50

20-1

1464930510
ref: 20-1
14649-30520

COVER,SECOND MUFFLER TAIL

€ 10.00

20-2

1464930511
ref: 20-2
14649-30520

COVER,SECOND MUFFLER TAIL

€ 10.00

21

0832221068
ref: 21
08322-01067

WASHER

€ 2.00

22

0832121068
ref: 22
08321-01067

LOCK WASHER

€ 2.50

23

0912806013
ref: 23

SCREW(6X8)

€ 1.50

24

0110708308
ref: 24
01500-08307

BOLT (8X30)

€ 2.50

25

0916008007
ref: 25
09160-08127

WASHER (8.7X22X2)

€ 2.00

26

0918008048
ref: 26
09180-08302

SPACER (8X12X15)

€ 3.50

27

1477230500
ref: 27

DAMPER,MUFFLER,FR

€ 3.00

28

0832121088
ref: 28
08321-01087

LOCK WASHER

€ 2.00

29

0832221088
ref: 29
08322-01087

WASHER

€ 2.00

30

0832121088
ref: 30
08321-01087

LOCK WASHER

€ 2.00

31

0110708168
ref: 31
01500-0816B

BOLT

€ 2.00

32

1477138000
ref: 32

CONNECTOR,MUFFLER

€ 25.00

33

0940237601
ref: 33

CLAMP

€ 5.50

34

0211206208
ref: 34
02112-06207

SCREW

€ 2.00

35

0916008005
ref: 35
09160-08134

WASHER

€ 2.50

36

0918008050
ref: 36
09180-08199

SPACER (8.6X13.8X9)

€ 2.50

37

0932014006
ref: 37

CUSHION

€ 3.50

38

0832121088
ref: 38
08321-01087

LOCK WASHER

€ 2.00

39

0110708258
ref: 39
01500-08257

BOLT

€ 2.50

40

1478130500
ref: 40

COVER,MUFFLER

€ 25.00

41-1

147823050003K
ref: 41-1
14782-30500-737

COVER,MUFFLER

€ 33.00

41-2

147823050005L
ref: 41-2
14782-30500-737

COVER,MUFFLER

€ 33.00

41-3

147823050007P
ref: 41-3
14782-30500-737

COVER,MUFFLER

€ 33.00

42

0832121068
ref: 42
08321-01067

LOCK WASHER

€ 2.50

43

0211206088
ref: 43
02112-06087

SCREW

€ 2.00

44

0211206128
ref: 44
02112-06127

SCREW 6X12

€ 2.00

45

0832221068
ref: 45
08322-01067

WASHER

€ 2.00

46

0916806005
ref: 46
09168-06105

GASKET 6.2X12X1.5 (MCA)

€ 2.00

47

1479930500
ref: 47

EMBLEM,MUFFLER COVER

€ 8.00

all assemblies
