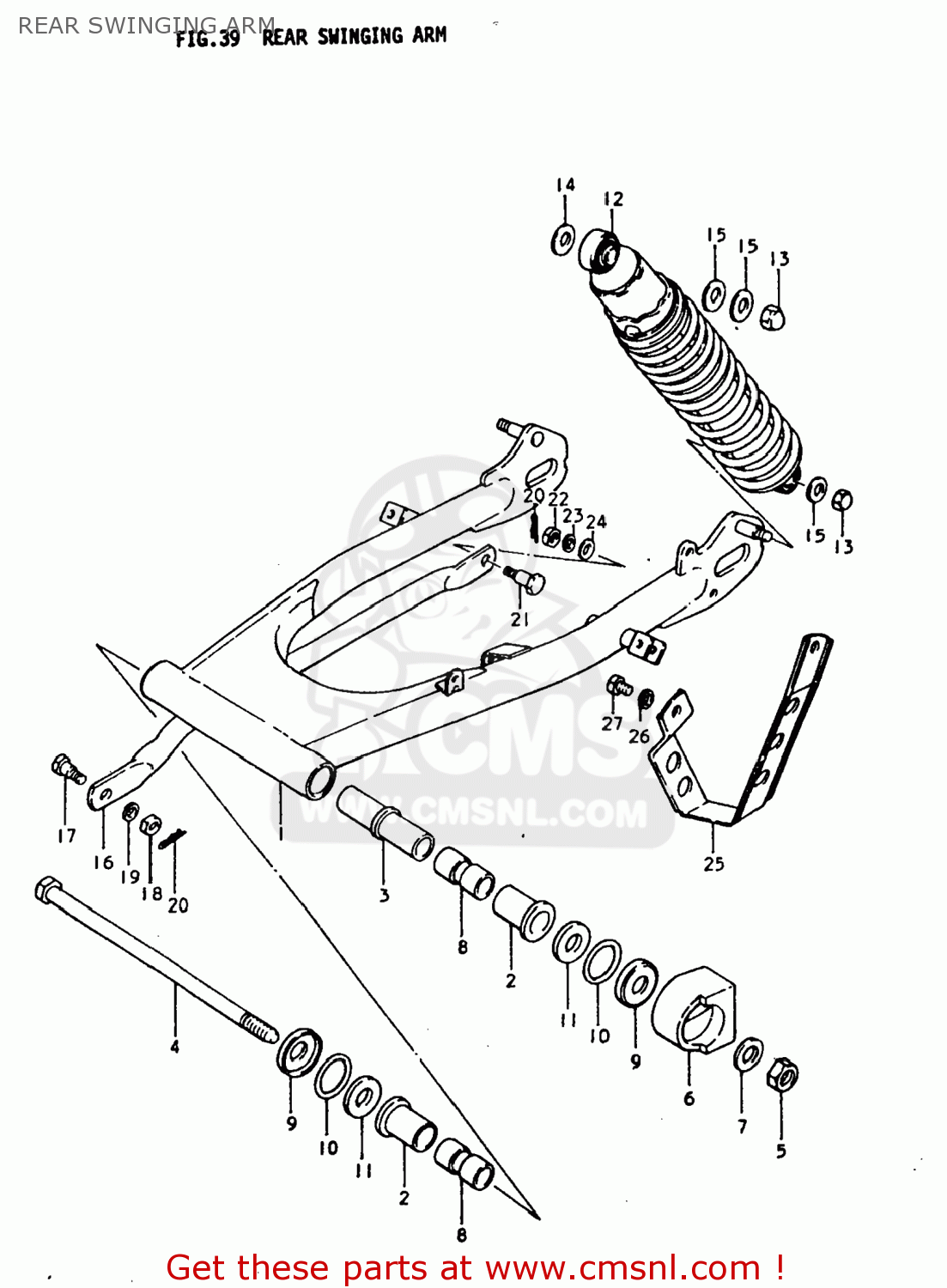

REAR SWINGING ARM

ref

part #

description

quantity

1

6110030870019
ref: 1
61100-30871-019

SWING ARM ASSEMBLY,REAR

€ 121.00

2

0930722003
ref: 2

BUSH

€ 18.00

3

6128032000
ref: 3

SPACER,SWING ARM,CENTER

€ 12.50

4

6121115006
ref: 4
61211-15007

SHAFT,REAR SWING ARM

€ 34.50

5

0831921148
ref: 5
08319-2114A

NUT 14MM

€ 3.00

6

6127332100
ref: 6

BUFFER,CHAIN TOUCH DEFLECTOR

€ 7.00

7

0832211148
ref: 7
08322-01147

WASHER

€ 2.00

8

6125115001
ref: 8

SPACER

€ 21.00

9

6126215000
ref: 9

COVER

€ 84.00

10

0928030001
ref: 10

O RING(D:3,ID:29.5)

€ 2.00

11

0916014009
ref: 11

WASHER(14.5X29X2.3)

€ 3.50

12-1

6210030510
ref: 12-1
62100-30530

ABSORBER ASSEMBLY,REAR SHOCK

€ 223.50

12-2

6210030520
ref: 12-2

ABSORBER ASSEMBLY,REAR SHOCK

€ 223.50

12-3

6210030530
ref: 12-3

ABSORBER ASSEMBLY,REAR SHOCK

€ 223.50

13

0831311108
ref: 13
08313-10107

NUT, LOWER LH

€ 2.50

14

0832211128
ref: 14
08322-01127

WASHER

€ 2.00

15

0916010001
ref: 15
09160-10093

WASHER

€ 2.00

16

6431132100
ref: 16
64311-32101-019

TORQUE LINK,REAR

€ 8.50

17

0911108012
ref: 17

BOLT(8X22.5)

€ 3.00

18

0914008008
ref: 18

NUT

€ 1.50

19

0832121088
ref: 19
08321-01087

LOCK WASHER

€ 2.00

20

0938510001
ref: 20
09385-10005

CLIP

€ 1.50

21

0911110009
ref: 21

BOLT(10X32.5)

€ 5.00

22

0831022108
ref: 22
08310-00107

NUT

€ 2.50

23

0832121108
ref: 23
08321-01107

LOCK WASHER

€ 2.00

24

0832211128
ref: 24
08322-01127

WASHER

€ 2.00

25

6134130500
ref: 25
61341-30501

GUIDE,CHAIN

€ 13.00

26

0832121088
ref: 26
08321-01087

LOCK WASHER

€ 2.00

27

0110708128
ref: 27
01500-08127

BOLT 8X12

€ 2.50
