WIRING HARNESS
TS250 1979 (N) USA (E03)

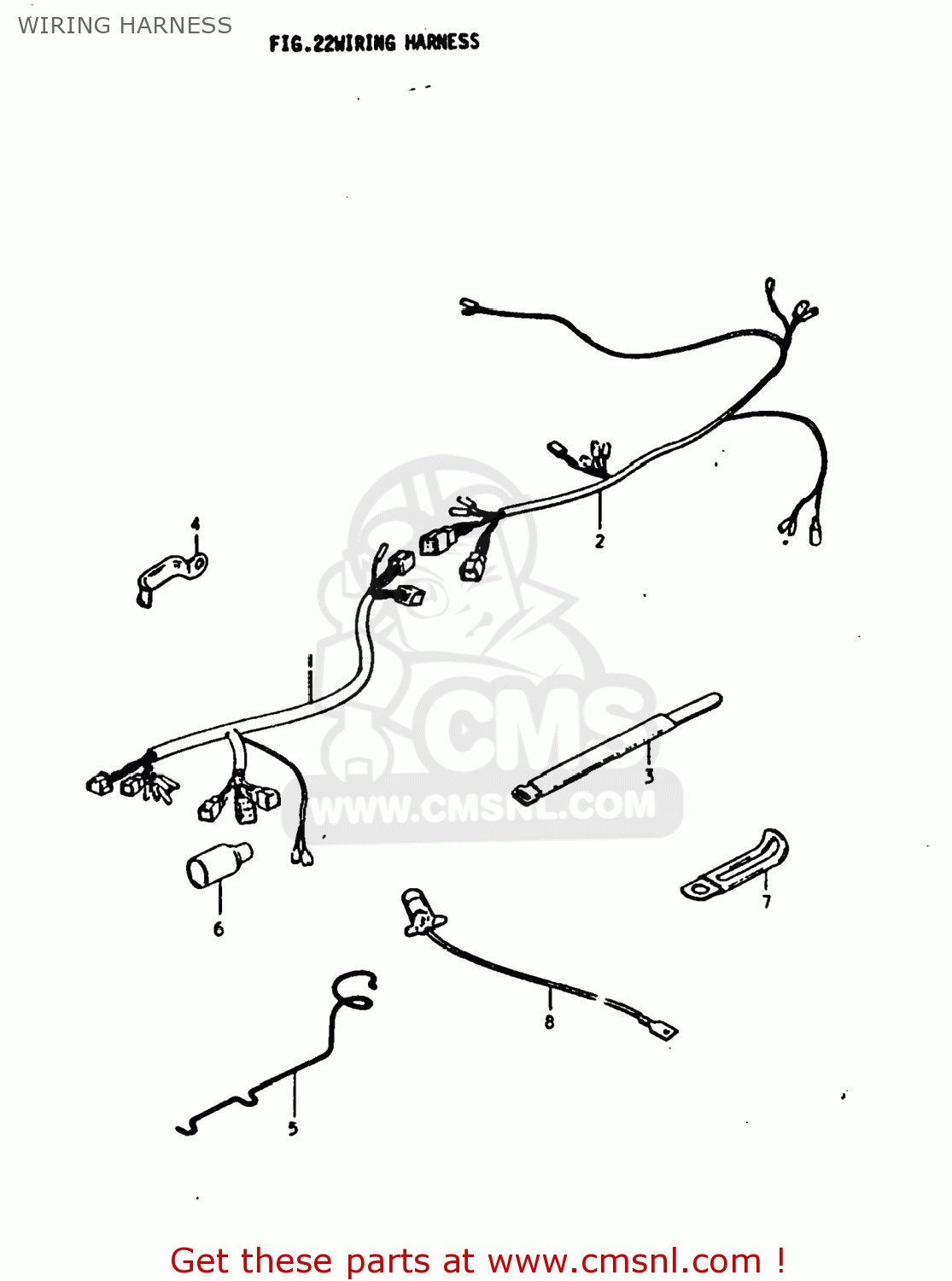

Wiring harness diagram TS250 1979 (N) USA (E03)
WIRING HARNESS TS250 1979 (N) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
3661030500
ref: 1-1
36610-30503
HARNESS,WIRING
€ 54.00
1-2
3661030504
ref: 1-2
HARNESS,WIRING
€ 58.50
2-1
3662030500
ref: 2-1
HARNESS,WIRING NO.2
€ 69.00
2-2
3662030504
ref: 2-2
HARNESS,WIRING NO.2
€ 69.00
2-3
3662030505
ref: 2-3
HARNESS,WIRING NO.2
€ 29.50
3-1
0940711302
ref: 3-1
09407-18301
CLAMP
€ 6.00
3-1
0940711302
ref: 3-1
09407-18301
CLAMP
€ 6.00
3-2
0940718301
ref: 3-2
CLAMP
€ 6.00
3-2
0940718301
ref: 3-2
CLAMP
€ 6.00
4
0940309307
ref: 4
CLAMP
€ 2.50
5
3661930500
ref: 5
GUIDE,WIRING HARNESS
€ 1.50
6
3661830000
ref: 6
BOOT,WIRING HARNESS
€ 8.50
7
0940406404
ref: 7
09404-06433
CLAMP
€ 3.00
8
3681127610
ref: 8
WIRE,WIRING HARNESS LEAD
€ 4.50
