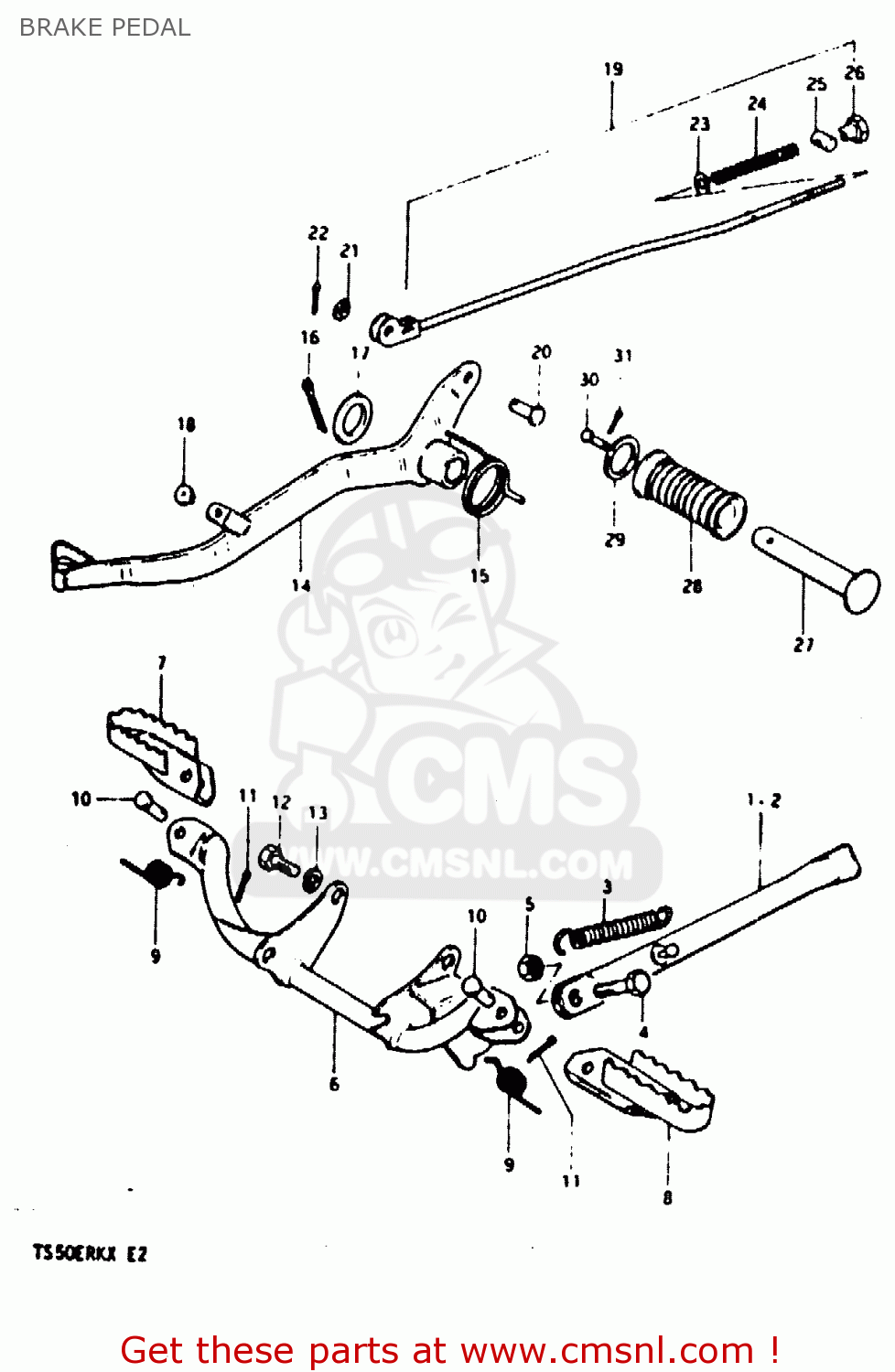

BRAKE PEDAL

ref

part #

description

quantity

1-1

4231026520
ref: 1-1
~F.NO.111533

STAND,SIDE

€ 31.00

1-2

4231026540
ref: 1-2
F.NO.111534~

STAND, PROP

€ 31.00

2-1

NOTUSED
ref: 2-1

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

2-2

NOTUSED
ref: 2-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

3

0944314017
ref: 3

SPRING

€ 6.50

4

0910010007
ref: 4

BOLT

€ 4.50

5

0831022108
ref: 5

NUT

€ 2.50

6-1

4351026500
ref: 6-1
~F.NO.111533

BAR, FRONT FOOTREST

€ 83.50

6-2

4351026502
ref: 6-2
F.NO.111534~

BAR, FRONT FOOTREST

€ 83.50

7

4355046000
ref: 7

FOOTREST,FRONT,RIGHT

€ 9.00

8

4356046000
ref: 8

FOOTREST

€ 9.00

9

0944814012
ref: 9

SPRING

€ 3.00

10

0920008002
ref: 10

PIN

€ 2.00

11

0411120208
ref: 11

PIN 20X20

€ 1.50

12

0110708168
ref: 12

BOLT

€ 2.00

13

0832121088
ref: 13

LOCK WASHER

€ 2.00

14-1

4311026500
ref: 14-1
MODEL T

PEDAL, BRAKE

€ 43.50

14-2

4311026501
ref: 14-2
MODEL X

PEDAL, BRAKE

€ 43.50

15

0944832004
ref: 15

SPRING

€ 4.50

16

0411130308
ref: 16

COTTER PIN

€ 1.50

17

0916015002
ref: 17

WASHER(15.5X26X2.3)

€ 2.00

18

4315530500
ref: 18

STOPPER,BRAKE PEDAL

€ 2.00

19-1

4330026500
ref: 19-1

ROD ASSEMBLY,REAR BRAKE

€ 18.50

19-2

NOTUSED
ref: 19-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

20

0920006013
ref: 20

PIN(L:13.5)

€ 2.00

21

0832221068
ref: 21

WASHER

€ 2.00

22

0411120208
ref: 22

PIN 20X20

€ 1.50

23

0832221068
ref: 23

WASHER

€ 2.00

24

0944009004
ref: 24

SPRING

€ 2.00

25

0920911002
ref: 25

PIN(11X18)

€ 2.00

26

0915006001
ref: 26

NUT

€ 3.50

27

4361003001
ref: 27

BAR,FOOTREST RUBBER

€ 5.50

28

4361203001
ref: 28

RUBBER,PILLION FOOTREST

€ 3.50

29

0916019006
ref: 29

WASHER (19.5X32X2)

€ 2.00

30

0920006010
ref: 30

PIN

€ 2.50

31

0411120208
ref: 31

PIN 20X20

€ 1.50
