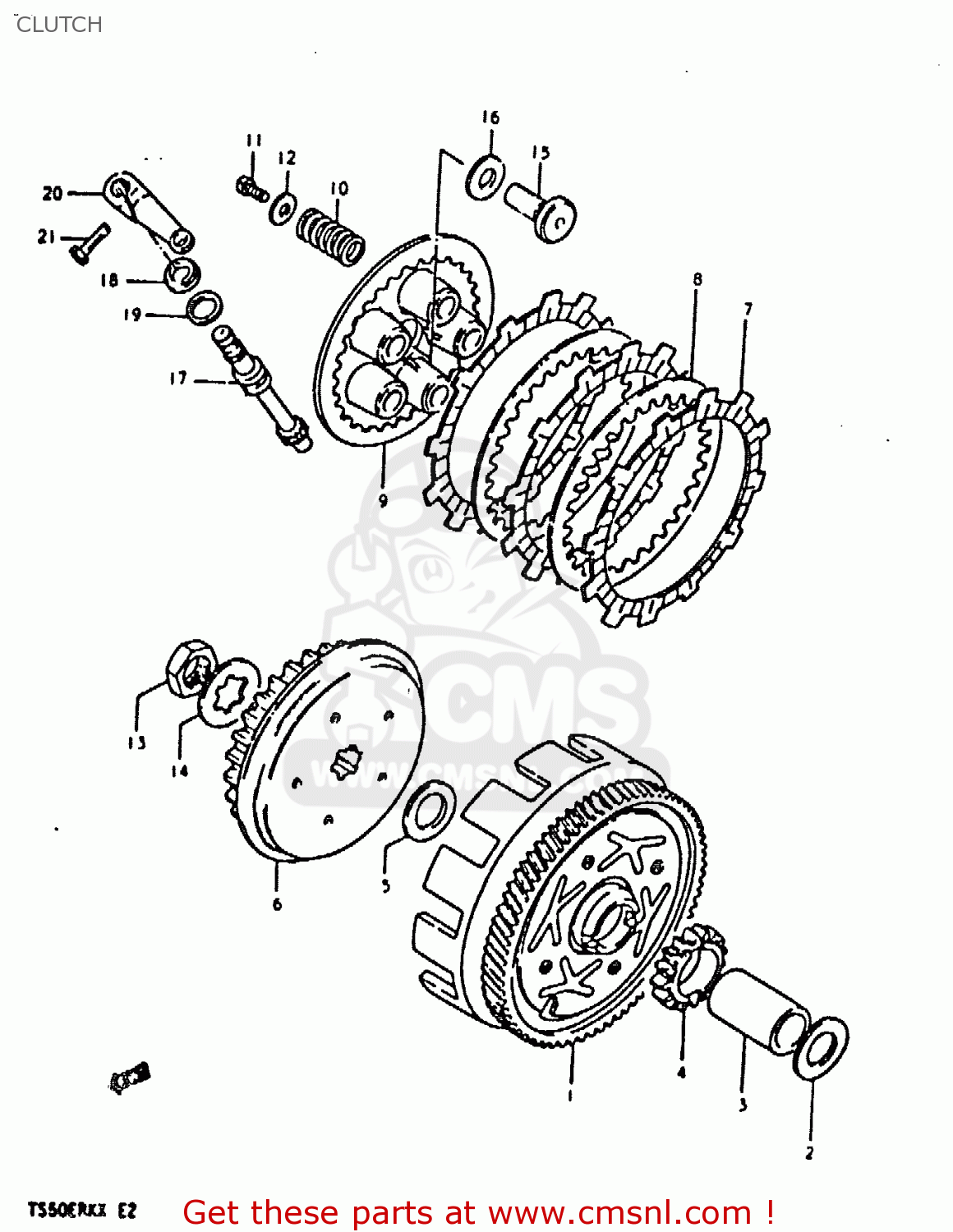

CLUTCH

ref

part #

description

quantity

1

2120046000
ref: 1

GEAR ASSEMBLY,PRIMARY DRIVE

€ 154.00

2

0821117301
ref: 2

WASHER,THRUST

€ 3.00

3

0918017045
ref: 3

SPACER

€ 12.50

4

2628146000
ref: 4

GEAR,KICK STARTER DRIVE

€ 48.00

5

0821117282
ref: 5

WASHER

€ 3.00

6

2141146100
ref: 6

HUB,CLUTCH SLEEVE

€ 83.00

7

2144128300
ref: 7

PLATE,CLUTCH DRIVE

€ 8.50

8

2145128000
ref: 8

PLATE,CLUTCH DRIVEN (NAS)

€ 4.50

9

2146246000
ref: 9

DISC,CLUTCH PRESSURE

€ 19.50

10

0944015008
ref: 10

SPRING

€ 2.00

11

0910005002
ref: 11

BOLT(5X16)

€ 2.00

12

0916005017
ref: 12

WASHER (5.5X16X1.2)

€ 2.50

13

0914016002
ref: 13

NUT

€ 4.00

14

0916717002
ref: 14

WASHER,LOCK

€ 2.00

15

2316546000
ref: 15

RACK,CLUTCH RELEASE

€ 20.00

16

0926310002
ref: 16

BEARING(10X22X2.8)

€ 8.50

17

2326141301
ref: 17

PINION,CLUTCH RELEASE

€ 27.50

18

0928510002
ref: 18

OIL SEAL

€ 3.50

19

0916012035
ref: 19

WASHER (12X17X1)

€ 2.00

20

2327146000
ref: 20

ARM,CLUTCH RELEASE

€ 14.50

21

0110706168
ref: 21

BOLT, UPPER

€ 3.00

all assemblies
