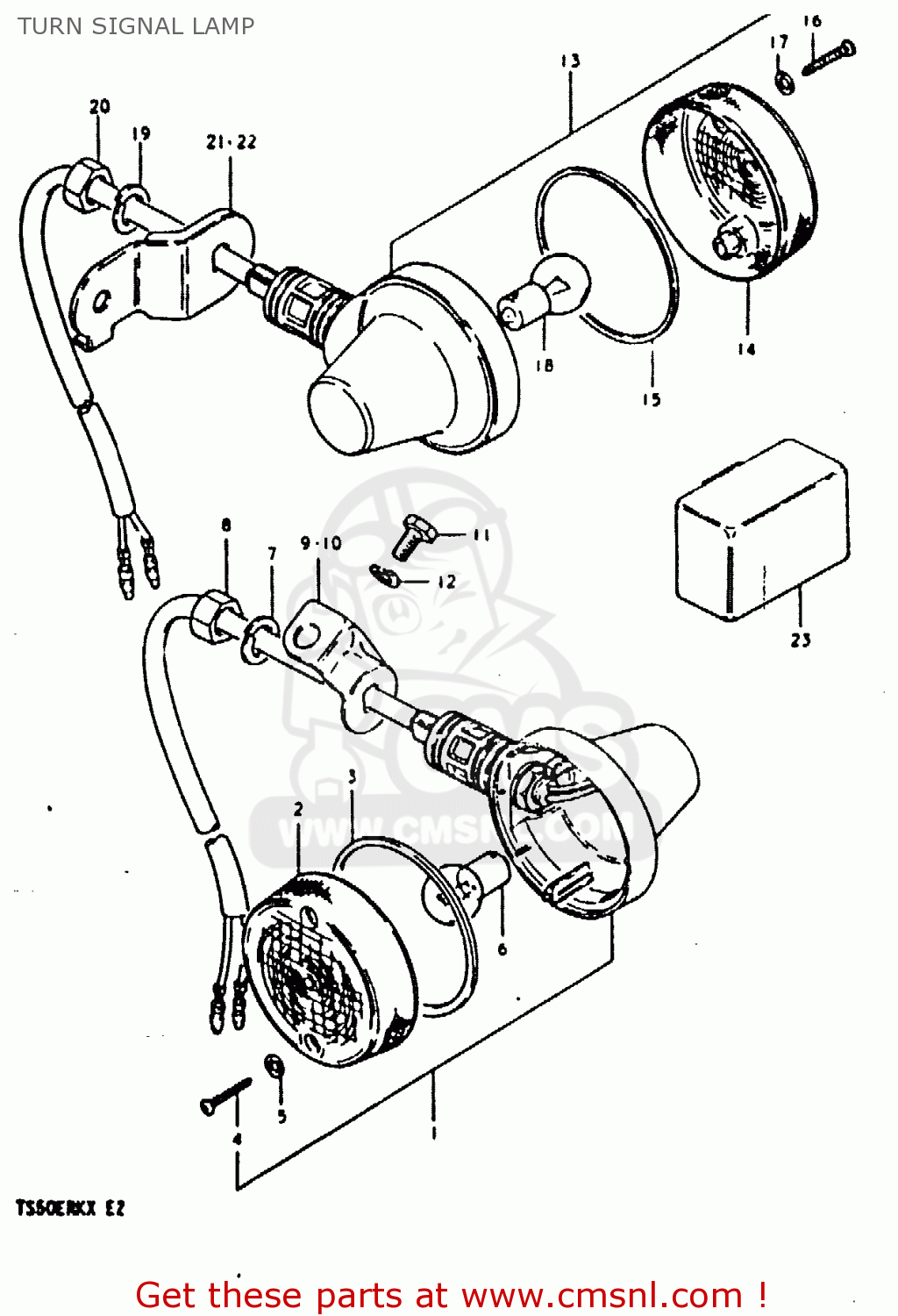

TURN SIGNAL LAMP

ref

part #

description

quantity

1

3560348521999
ref: 1

LAMP ASSY,RR TURNSIGNAL

€ 72.50

2

3561248510
ref: 2

LENS

€ 10.50

3

3561328620
ref: 3

GASKET (NAS)

€ 7.00

4

0321104258
ref: 4

SCREW TAPP.

€ 2.00

5

3562743010
ref: 5

GASKET (NAS)

€ 2.00

6

0947106048
ref: 6

BULB (6V,18W)

€ 0.00

7

0832121128
ref: 7

WASHER,LOCK 12

€ 2.50

8

0831012128
ref: 8

NUT

€ 3.00

9

5125129900291
ref: 9

BRACKET,TURNSIGNAL LAMP,R

€ 7.50

10

5125229900291
ref: 10

BRACKET,TURNSIGNAL LAMP,L

€ 7.50

11

0110706128
ref: 11

BOLT

€ 2.00

12

0832121068
ref: 12

LOCK WASHER

€ 2.50

13

3560348521999
ref: 13

LAMP ASSY,RR TURNSIGNAL

€ 72.50

14

3561248510
ref: 14

LENS

€ 10.50

15

3561328620
ref: 15

GASKET (NAS)

€ 7.00

16

0321104258
ref: 16

SCREW TAPP.

€ 2.00

17

3562743010
ref: 17

GASKET (NAS)

€ 2.00

18

0947106048
ref: 18

BULB (6V,18W)

€ 0.00

19

0832121128
ref: 19

WASHER,LOCK 12

€ 2.50

20

0831012128
ref: 20

NUT

€ 3.00

21

4158048500
ref: 21

BRACKET,REAR TURN SIGNAL

€ 14.00

22

4159048500
ref: 22

BRACKET,REAR TURN SIGNAL

€ 14.50

23

3861048600
ref: 23

RELAY,TURN SIGNAL

€ 46.50

all assemblies
