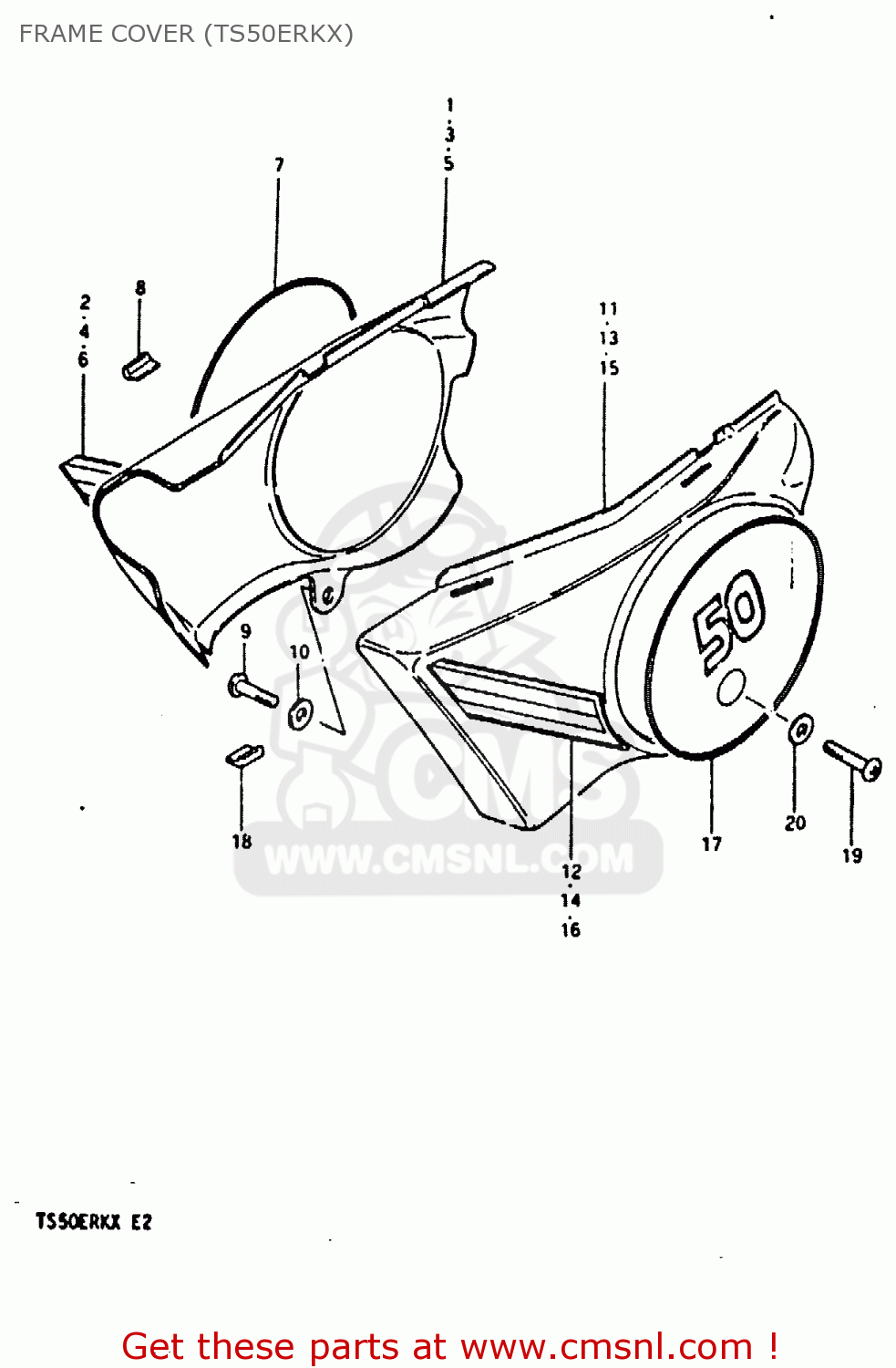

FRAME COVER (TS50ERKX)

ref

part #

description

quantity

1

471112650107P
ref: 1

COVER, FRAME RH (RED)

€ 73.00

2

681362653074T
ref: 2

TAPE, STRIPING RH

€ 8.50

3

471112650108Y
ref: 3

COVER,FRAME RH

€ 73.00

4

681362653074U
ref: 4

TAPE, STRIPING RH

€ 8.50

5-1

4711126501189
ref: 5-1

COVER,FRAME RH

€ 73.00

5-2

4711126501163
ref: 5-2

COVER,FRAME RH

€ 73.00

6

681362653067H
ref: 6

TAPE, STRIPING RH

€ 9.50

7

6813126560064
ref: 7

EMBLEM, RH (WHITE)

€ 7.50

8

4711745000
ref: 8

CUSHION,FRAME COVER

€ 1.50

9

0214206128
ref: 9

SCREW

€ 1.50

10

0916006007
ref: 10

WASHER

€ 2.00

11

472112650107P
ref: 11

COVER, FRAME LH (RED)

€ 119.00

12

681462653074T
ref: 12

TAPE, STRIPING LH

€ 8.00

13

472112650108Y
ref: 13

COVER, FRAME LH (BLUE)

€ 119.00

14

681462653074U
ref: 14

TAPE, STRIPING LH

€ 9.50

15-1

4721126501189
ref: 15-1

COVER, FRAME LH (WHITE)

€ 119.00

15-2

4721126501163
ref: 15-2

COVER, FRAME LH (YELLW)

€ 119.00

16

681462653067H
ref: 16

TAPE, STRIPING LH

€ 10.00

17

6814126560064
ref: 17

EMBLEM, LH (WHITE)

€ 8.00

18

4711745000
ref: 18

CUSHION,FRAME COVER

€ 1.50

19

0214206458
ref: 19

SCREW

€ 2.00

20

0916006007
ref: 20

WASHER

€ 2.00

all assemblies
