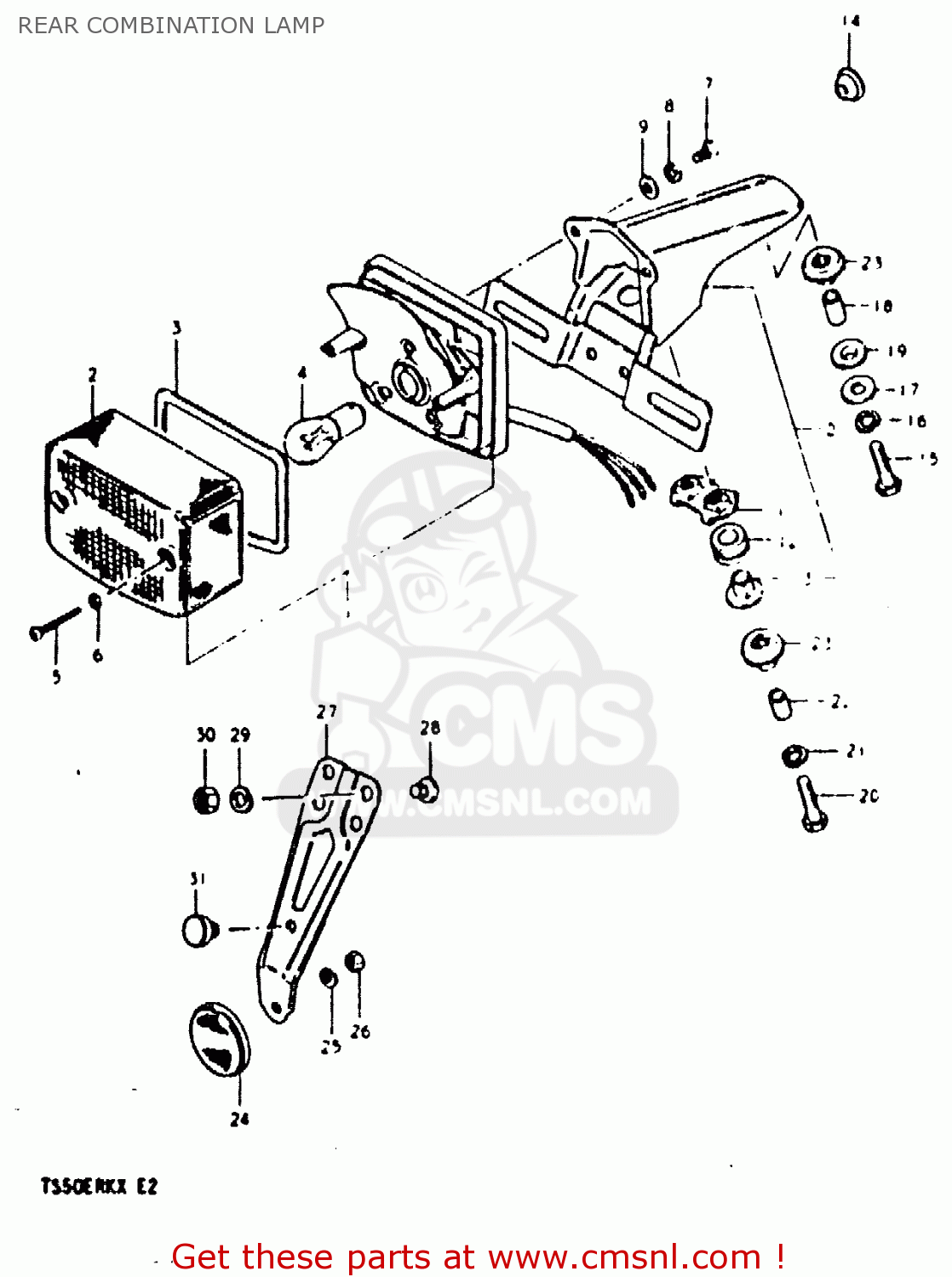

REAR COMBINATION LAMP

ref

part #

description

quantity

1

3572048521
ref: 1
FROM 35720-48520

LAMP UNIT, TAIL

€ 115.00

2-1

3571248521
ref: 2-1
MODEL T FROM 35712-4

LENS

€ 26.00

2-2

3571248523
ref: 2-2
MODEL X FROM 35712-4

LENS

€ 26.00

3

3571348510
ref: 3

GASKET (NAS)

€ 8.50

4

0947106042
ref: 4

BULB (6V,21/5W)

€ 12.50

5

0321104308
ref: 5
FROM 35625-49030

SCREW

€ 1.50

6

3562743010
ref: 6

GASKET (NAS)

€ 2.00

7

0211205128
ref: 7

SCREW

€ 2.50

8

0832121058
ref: 8

LOCK WASHER

€ 2.00

9

0832221058
ref: 9

WASHER

€ 2.50

10

3573048510
ref: 10

BRACKET ASSY

€ 61.00

11

3571630950
ref: 11

PLATE

€ 10.50

12

3576530950
ref: 12

CUSHION

€ 18.00

13

3576630950
ref: 13

SPACER

€ 2.00

14

0930807004
ref: 14

GROMMET

€ 2.50

15

0110706308
ref: 15

BOLT

€ 2.50

16

0832121068
ref: 16

LOCK WASHER

€ 2.50

17

0916006060
ref: 17

WASHER

€ 2.00

18

0918006072
ref: 18

SPACER

€ 2.00

19

0932009003
ref: 19

CUSHION

€ 2.00

20

0110706408
ref: 20

BOLT 6X40

€ 2.00

21

0832121068
ref: 21

LOCK WASHER

€ 2.50

22

0918006006
ref: 22

SPACER (6.8X10X11.5)

€ 3.00

23

0932009010
ref: 23

CUSHION

€ 2.50

24

3597030910
ref: 24

REFLEX REFLECTOR,RR

€ 47.50

25

0832121058
ref: 25

LOCK WASHER

€ 2.00

26

0831011058
ref: 26

NUT

€ 2.50

27-1

3597448520
ref: 27-1

BRACKET

€ 6.00

27-2

NOTUSED
ref: 27-2

NO PRODUCT DESCRIPTION AVAILABLE

€ 0.00

28

0214206108
ref: 28

SCREW

€ 2.00

29

0832121068
ref: 29

LOCK WASHER

€ 2.50

30

0831011068
ref: 30

NUT

€ 2.50

31

0932105010
ref: 31

CUSHION

€ 3.50
