SEAT

TS50ERKD 1981 (X) (E17 E21 E41)

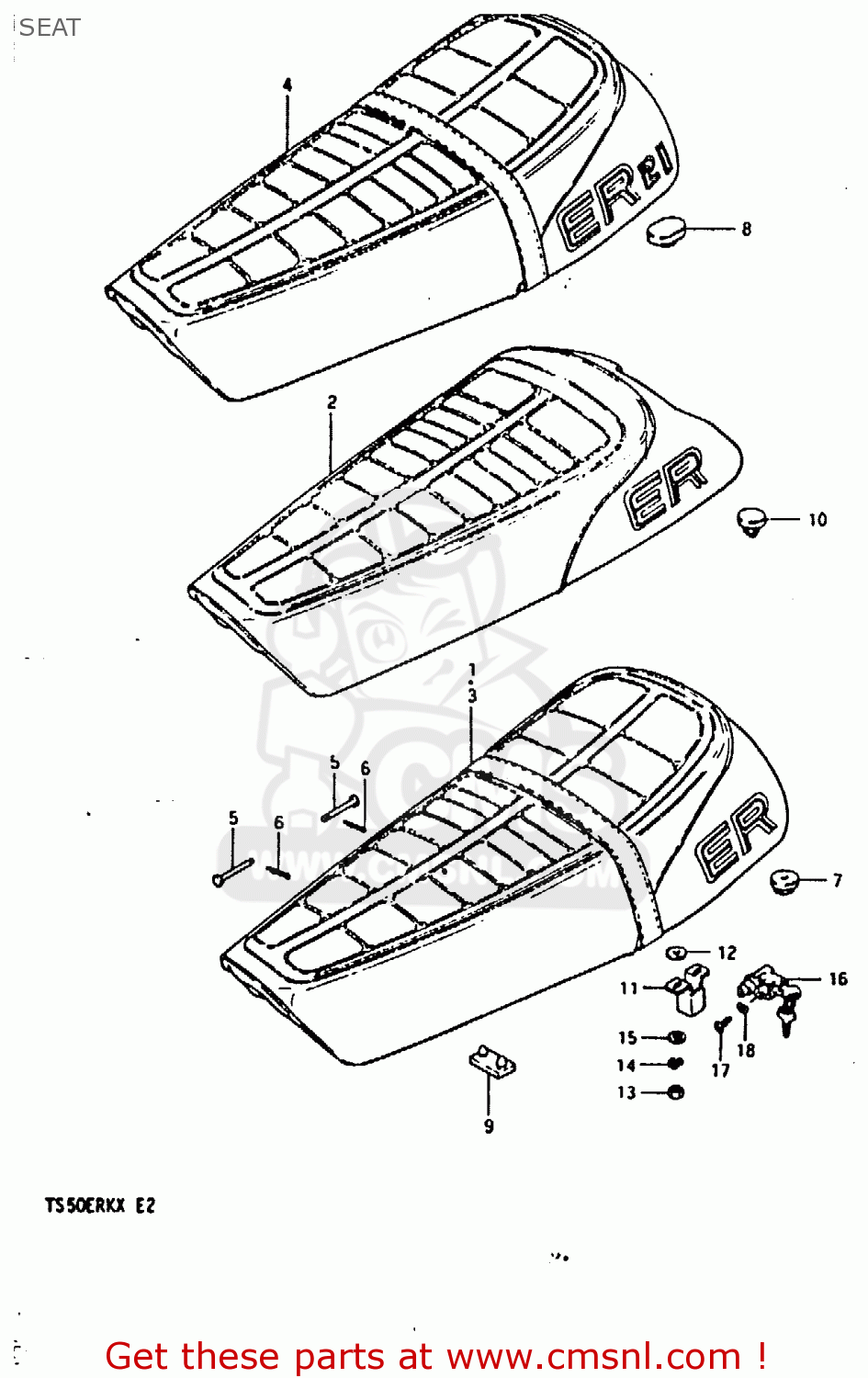

Seat diagram TS50ERKD 1981 (X) (E17 E21 E41)

SEAT TS50ERKD 1981 (X) (E17 E21 E41)
SEAT TS50ERKD 1981 (X) (E17 E21 E41)
SEAT TS50ERKD 1981 (X) (E17 E21 E41)
prices are in EUR
ref
part #
description
quantity
1
4510026500866
ref: 1
SEAT ASSY (BLACK)
€ 209.00
2
NOTUSED
ref: 2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3-1
NOTUSED
ref: 3-1
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
3-2
NOTUSED
ref: 3-2
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
4
NOTUSED
ref: 4
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
5
0920006018
ref: 5
PIN
0920006018
€ 2.00
6
0411120158
ref: 6
PIN
0411120158
€ 1.50
7
0932100010
ref: 7
CUSHION
€ 0.00
8
NOTUSED
ref: 8
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
9
0932020004
ref: 9
CUSHION
0932020004
€ 4.50
10
NOTUSED
ref: 10
NO PRODUCT DESCRIPTION AVAILABLE
€ 0.00
11
4521329300
ref: 11
PLATE,CLAMP GUIDE
4521329300
€ 7.50
12
0916008043
ref: 12
WASHER(8.5X18X1)
0916008043
€ 1.50
13
0831011068
ref: 13
NUT
0831011068
€ 2.50
14
0832131068
ref: 14
LOCK WASHER
€ 2.50
15
0832221068
ref: 15
WASHER
0832221068
€ 2.00
16
9570030832
ref: 16
LOCK ASSY,SEAT
9570030832
€ 54.00
17
0211205128
ref: 17
SCREW
€ 2.50
18
0832121058
ref: 18
LOCK WASHER
0832121058
€ 2.00
