FRONT WHEEL
TS75 1976 (A) USA (E03)

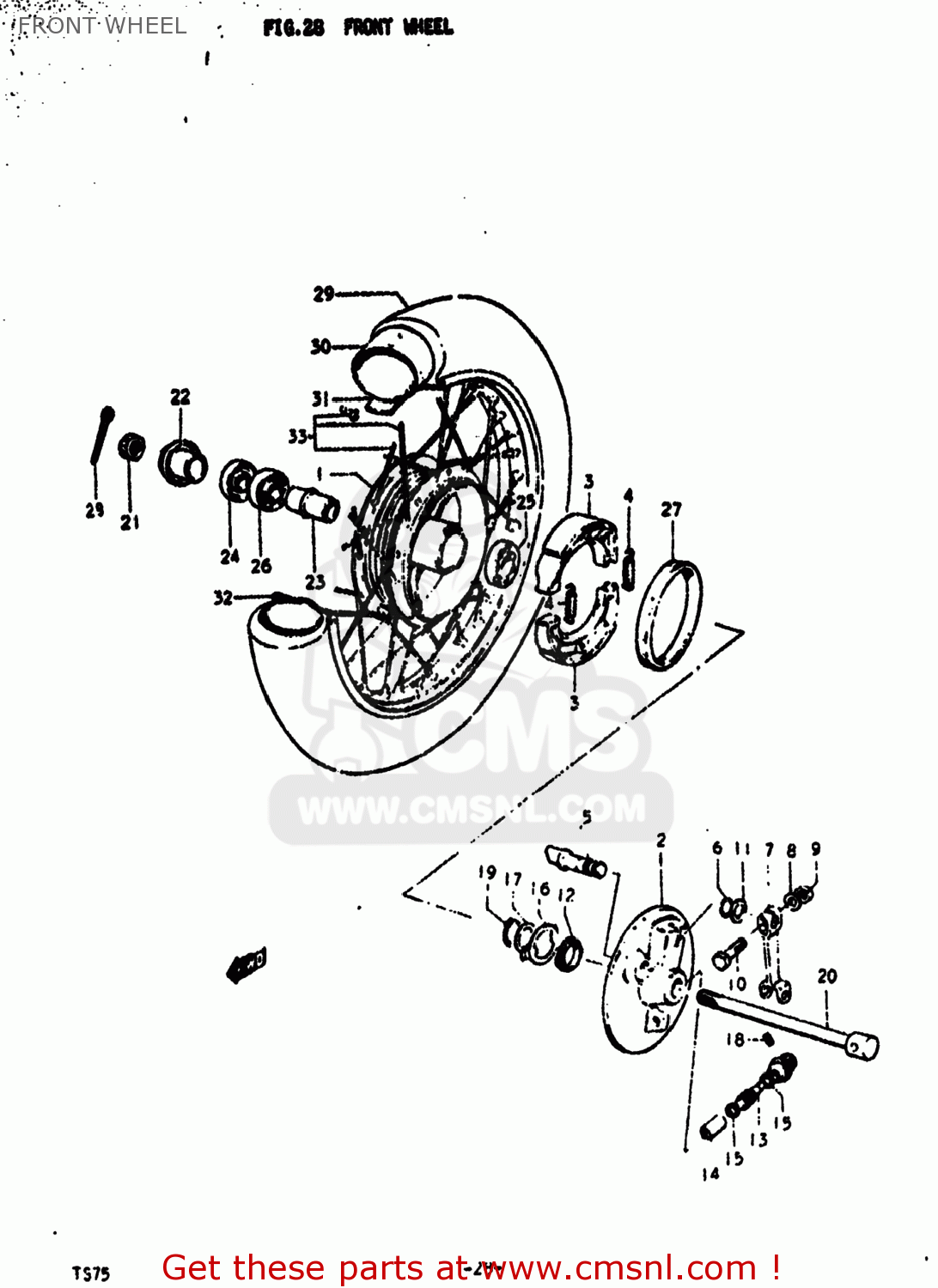

Front wheel diagram TS75 1976 (A) USA (E03)
FRONT WHEEL TS75 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
5411001004
ref: 1-1
HUB,FRONT
€ 91.00
1-2
5411026100
ref: 1-2
HUB,FRONT
€ 38.00
2-1
5444101002
ref: 2-1
CAM,FR BRAKE
€ 19.50
2-2
5421003006
ref: 2-2
PANEL,FRONT BRAKE ANCHOR
€ 60.00
2-2
5421026101
ref: 2-2
PANEL,FRONT HUB
€ 0.00
3
5441001005
ref: 3
54400-35860
SHOE,BRAKE
€ 39.00
4
0944307001
ref: 4
09443-07025
SPRING(L:34)
€ 2.50
6
0928012001
ref: 6
O RING(D:2.5,ID:11.4)
€ 2.50
7
5445103002
ref: 7
LEVER,FR BRAKE CAM
€ 10.50
8
0832221068
ref: 8
08322-01067
WASHER
€ 2.00
9
0831111068
ref: 9
08310-00067
NUT
€ 2.50
10
0910006050
ref: 10
09100-06150
BOLT
€ 1.50
11
0916012011
ref: 11
WASHER(12.5X20X1)
€ 1.50
12-1
5461103000
ref: 12-1
54611-03002
GEAR,SPEEDOMETER
€ 16.00
12-2
5461103600
ref: 12-2
54611-03601
GEAR,SPEEDOMETER
€ 0.00
13
5462103000
ref: 13
54621-03001
PINION,SPEEDOMETER
€ 15.50
14
5463201001
ref: 14
BUSH,METER GEAR OUTER
€ 9.00
15
0916005001
ref: 15
09160-05001-A05
WASHER (5.1X9X0.4)
€ 2.00
16
5466103000
ref: 16
DRIVER,SPEEDOMETER GEAR
€ 3.00
17
0916016005
ref: 17
WASHER(16X22X1)
€ 1.50
18
0913403101
ref: 18
09134-03101-A05
SCREW
€ 1.50
19
0833111159
ref: 19
08331-3115A
CIRCLIP
€ 2.00
20
5471126100
ref: 20
54711-04711
AXLE,FRONT
€ 19.50
21
0831411108
ref: 21
08314-3110A
NUT
€ 1.50
22
5474026100
ref: 22
54740-26101
SPACER,FRONT AXLE,RIGHT
€ 11.00
23
5473001000
ref: 23
SPACER,FRONT HUB BEARING
€ 11.50
24
0928415001
ref: 24
SEAL,OIL(15X31X5)
€ 4.00
25
0814363000
ref: 25
08143-63007
BEARING, LH
€ 12.50
26
0811362000
ref: 26
BEARING
€ 7.50
27
0928543001
ref: 27
09283-43004
OIL SEAL (43X58X7)
€ 10.00
28
0411120308
ref: 28
04111-2030A
COTTER PIN
€ 1.00
29-1
5510026310
ref: 29-1
55100-26610
TIRE,FRONT
€ 0.00
29-2
5510026610
ref: 29-2
TIRE,FRONT
€ 0.00
30
5520026110
ref: 30
55200-08011
TUBE,INNER
€ 25.00
31
5526108010
ref: 31
65261-37300
PROTECTOR,WHEEL,INNER
€ 4.50
32
5531126120
ref: 32
RIM,FRONT WHEEL
€ 28.50
33
5530026820
ref: 33
55320-26120
SPOKE SET,FRONT
€ 31.50
