GEAR SHIFTING
TS75 1976 (A) USA (E03)

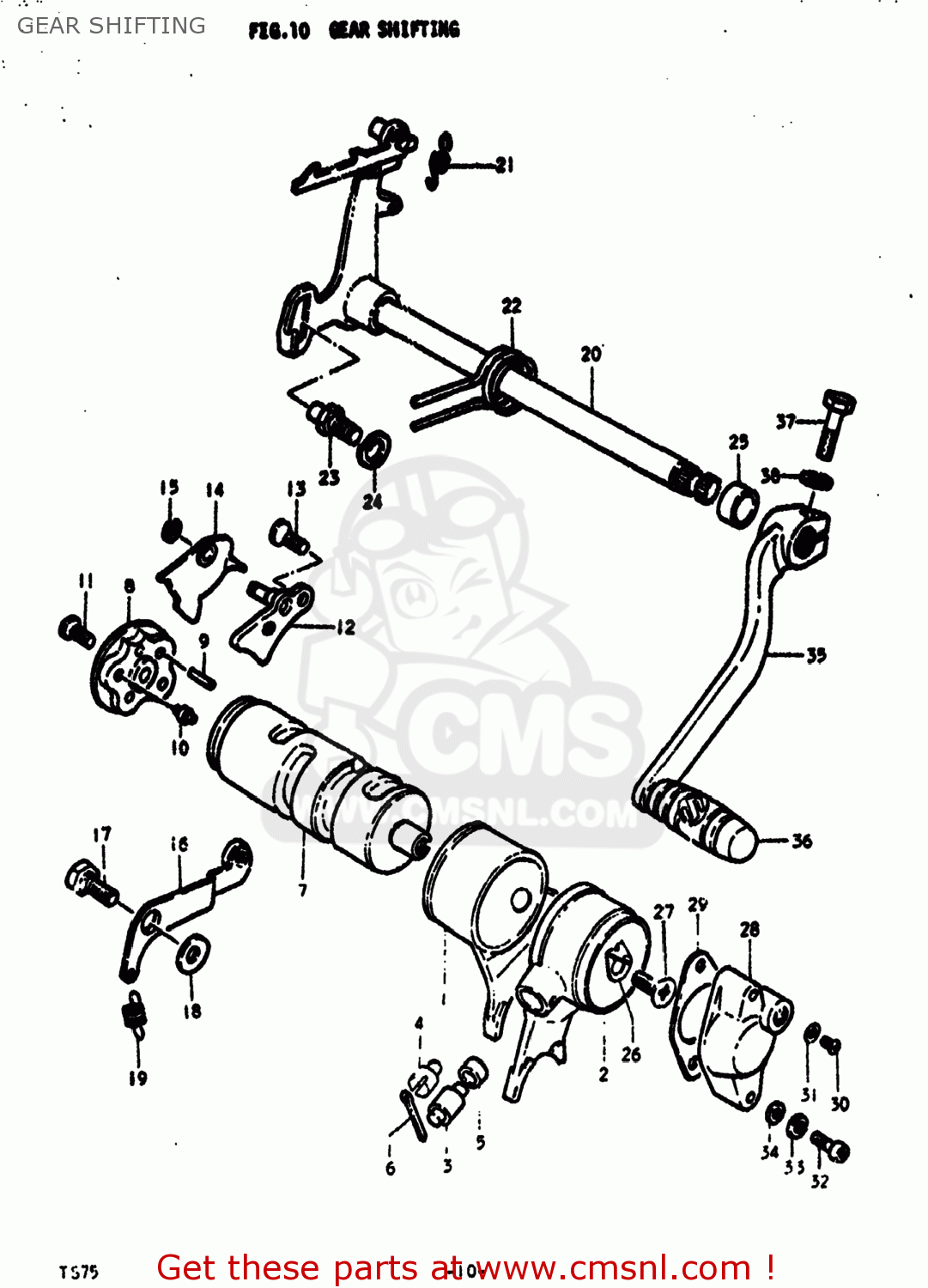

Gear shifting diagram TS75 1976 (A) USA (E03)
GEAR SHIFTING TS75 1976 (A) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1-1
2521126101
ref: 1-1
25211-25101
FORK,GEAR SHIFT NO.1
€ 26.50
1-2
2521125101
ref: 1-2
FORK,GEAR SHIFT NO.1
€ 26.50
2
2522112100
ref: 2
FORK,GEAR SHIFT NO.2
€ 40.00
3
0920910003
ref: 3
PIN
€ 8.50
4
0920910002
ref: 4
PIN
€ 8.50
5
0918006004
ref: 5
09180-06086
SPACER
€ 2.50
6
0411125208
ref: 6
04111-2520A
PIN 25X20
€ 2.00
7
2531112102
ref: 7
CAM,GEAR SHIFT
€ 69.50
8
2538026100
ref: 8
PLATE,GEAR SHIFT CAM
€ 5.00
9
0926104001
ref: 9
PIN(4X18.5)
€ 1.50
10
0920904012
ref: 10
PIN
€ 2.50
11
0212206208
ref: 11
02122-0620A
SCREW
€ 2.00
12
2534012101
ref: 12
GUIDE,GEAR SHIFT CAM
€ 11.50
13
0212206168
ref: 13
02122-06167
SCREW
€ 2.00
14
2537027100
ref: 14
PAWL,GEAR SHIFTING CAM
€ 5.50
15
0833211059
ref: 15
08332-1105A
E RING
€ 1.50
16
2535026100
ref: 16
STOPPER,SHIFT CAM
€ 3.00
17
0911106003
ref: 17
BOLT(6X16.1)
€ 1.50
18
0916006022
ref: 18
WASHER(6.5X16X2.3)
€ 1.50
19
0944307013
ref: 19
SPRING
€ 2.50
20
2551026100
ref: 20
SHAFT,GEAR SHIFT
€ 35.50
21
0944307013
ref: 21
SPRING
€ 2.50
22
0944426008
ref: 22
SPRING
€ 4.50
23
2567119000
ref: 23
STOPPER,GEAR SHIFT ARM
€ 5.50
24
0832121108
ref: 24
08321-01107
LOCK WASHER
€ 2.00
25
0928512002
ref: 25
09285-12006
OIL SEAL
€ 7.00
26
3771105101
ref: 26
CONTACT,GEAR SHIFT SWITCH
€ 4.00
27
0212206128
ref: 27
02122-06127
SCREW
€ 3.00
28
3772126000
ref: 28
BODY,GEAR SHIFT SWITCH
€ 10.50
29
3771226000
ref: 29
3771226000
30
0211103048
ref: 30
02112-03047
SCREW
€ 2.00
31
0832221038
ref: 31
08322-01037
WASHER
€ 2.00
32
0211104208
ref: 32
02112-0420A
SCREW
€ 1.00
33
0832121048
ref: 33
08321-0104A
LOCK WASHER
€ 2.00
34
0832221048
ref: 34
08322-01047
WASHER
€ 2.00
35-1
2560005104
ref: 35-1
LEVER ASSY,GEAR SHIFT
€ 60.00
35-2
2560026100
ref: 35-2
25600-05104
LEVER ASSEMBLY,GEAR SHIFTING
€ 60.00
36
2565216500
ref: 36
RUBBER,GEAR SHIFT PEDAL
€ 4.00
37
0111206208
ref: 37
01500-06207
BOLT
€ 2.00
38
0832121068
ref: 38
08321-01067
LOCK WASHER
€ 2.50
