CRANKCASE

TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

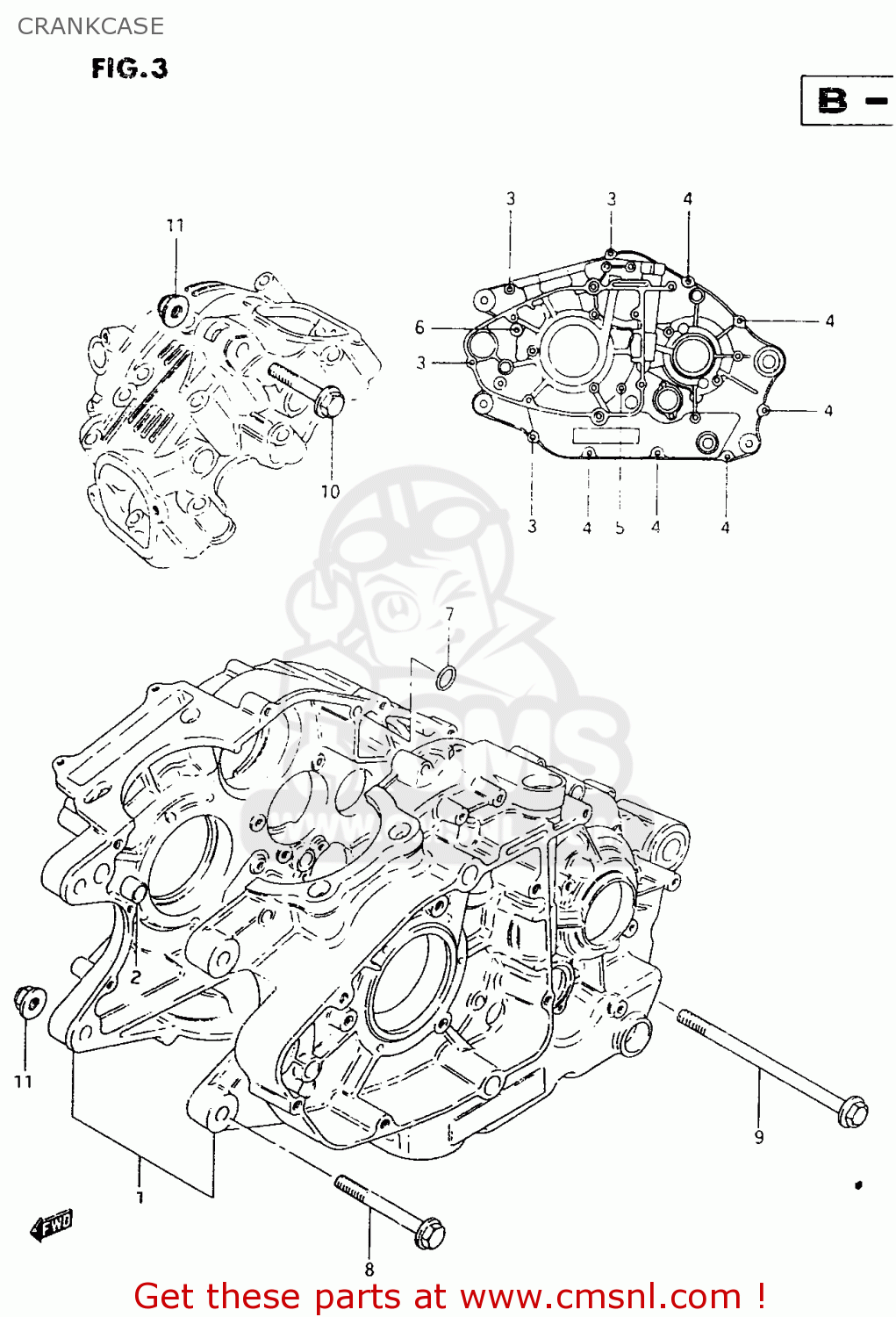

Crankcase diagram TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

CRANKCASE TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

CRANKCASE TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1

1130038863
ref: 1

CRANKCASE SET

€ 622.50

2

0421113189
ref: 2

PIN

€ 2.50

3

0154706357
ref: 3

BOLT

€ 2.50

4

0154706457
ref: 4

BOLT

€ 2.50

5

0154706553
ref: 5

BOLT

€ 3.00

6

0154706603
ref: 6

BOLT

€ 3.50

7

0928010016
ref: 7
<-09280-10015

O RING(D:1.9,ID:9.8)

€ 3.50

8

0910308037
ref: 8

BOLT(8X67)

€ 6.50

9

0910308070
ref: 9

BOLT(8X100)

€ 5.00

10

0910308081
ref: 10

BOLT(8X50)

€ 3.50

11

0831931087
ref: 11

NUT

€ 2.50
