STARTER CLUTCH

TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

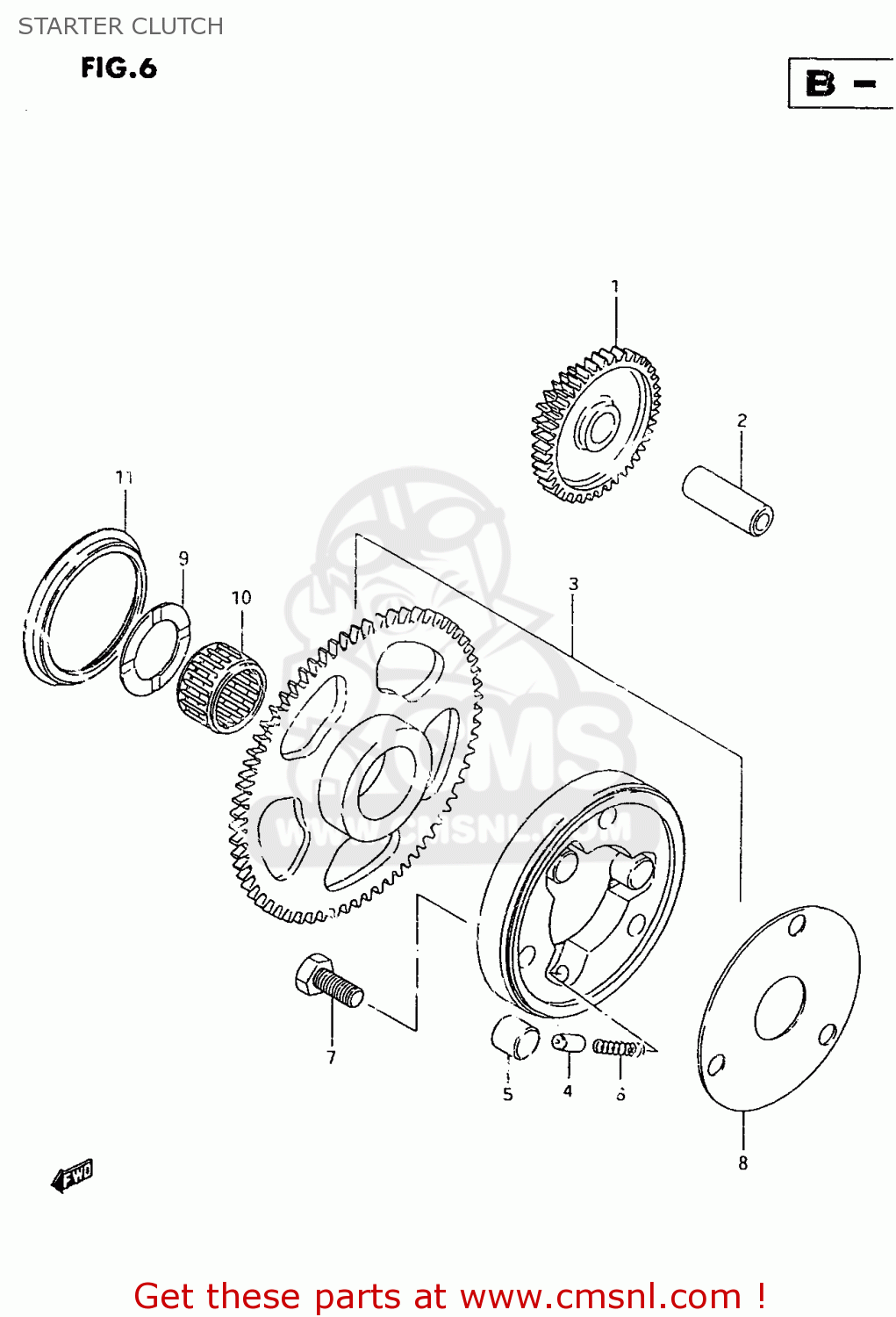

Starter clutch diagram TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

1261138300
ref: 1

GEAR,STARTER IDLE

€ 68.50

0920613007
ref: 2

PIN(7.4X13X40)

€ 9.00

1260038813
ref: 3

CLUTCH SET,STARTER

€ 158.00

1263331000
ref: 4

PIECE,PUSH

€ 9.00

0926114001
ref: 5

PIN(14X13)

€ 5.00

0944004015
ref: 6

SPRING

€ 2.50

0150008203
ref: 7

BOLT

€ 2.00

1264949300
ref: 8

SHIM,STARTER CLUTCH HUB

€ 13.50

0916027005
ref: 9

WASHER(27X40X2.5)

€ 10.00

0926327004
ref: 10

BEARING(27X32X21.8)

€ 23.00

0928952002
ref: 11

SEAL,OIL(52X62X6.8)

€ 62.00

all assemblies
