REAR SWINGING ARM

TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

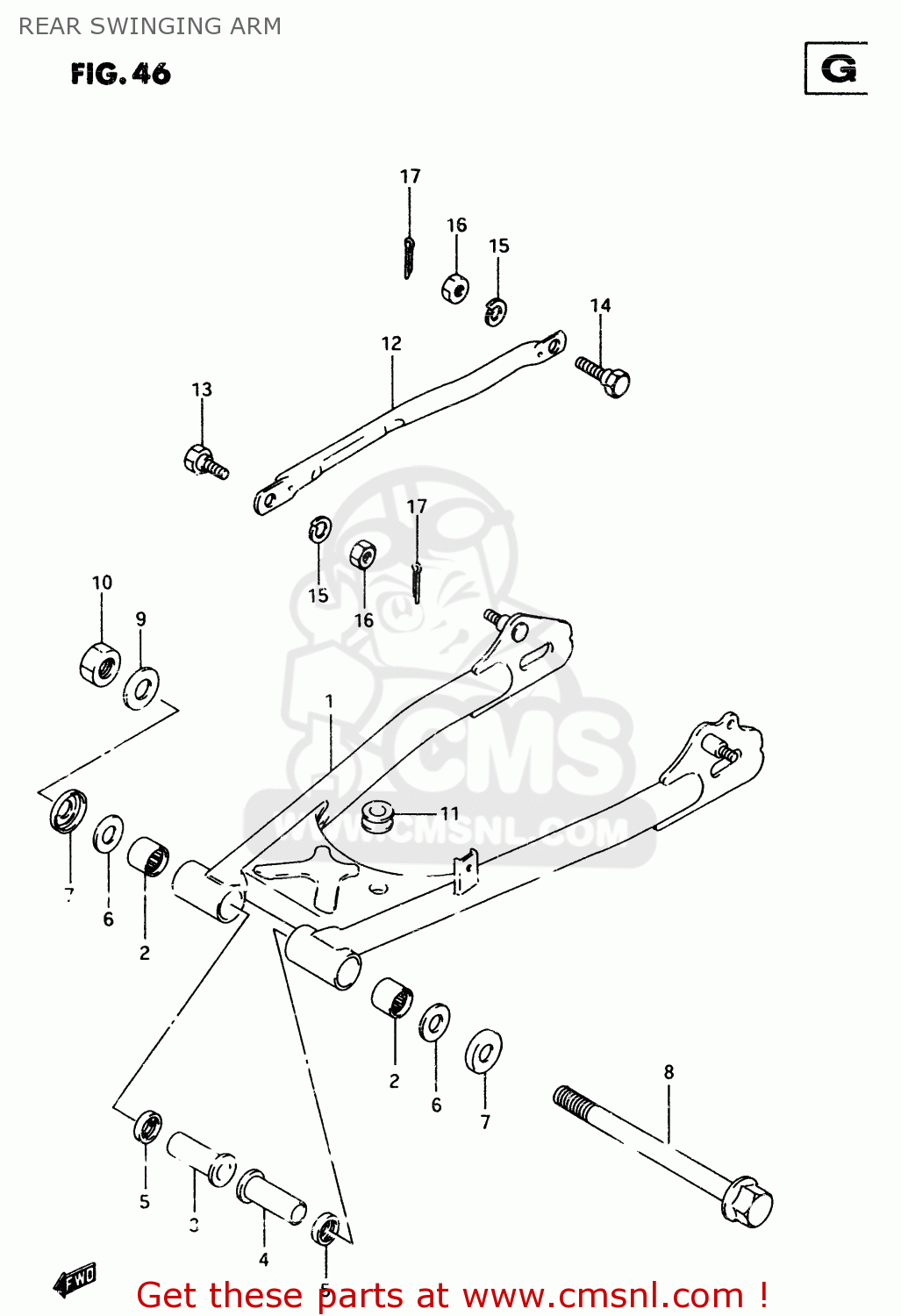

Rear swinging arm diagram TU250X 1998 (W) (E02 E04 E17 E24 E25 E34 E39)

prices are in EUR

ref

part #

description

quantity

6100038300019
ref: 1

SWINGINGARM ASSY,RR

€ 210.00

0926320041
ref: 2

BEARING(20X27X20)

€ 15.00

6125138300
ref: 3

SPACER,RR SWGARM PIVOT,R

€ 17.00

6125238300
ref: 4

SPACER,RR SWGARM PIVOT,L

€ 18.50

0928620001
ref: 5

SEAL,OIL(20X27X5)

€ 2.50

0821115321
ref: 6

WASHER

€ 2.50

6126238300
ref: 7

COVER,RR SWINGINGARM PIVOT

€ 6.00

6121138301
ref: 8

SHAFT,RR SWINGINGARM PIVOT

€ 23.50

0832201143
ref: 9

WASHER

€ 2.00

0831921148
ref: 10

NUT 14MM

€ 3.00

0932008020
ref: 11

CUSHION

€ 3.00

6431138301019
ref: 12

TORQUE LINK,REAR BRAKE (

€ 12.00

0911108012
ref: 13

BOLT(8X22.5)

€ 3.00

0911108013
ref: 14

BOLT(8X26.5)

€ 3.00

0916208008
ref: 15

WASHER,LOCK

€ 2.00

0914008008
ref: 16

NUT

€ 1.50

0411120208
ref: 17

PIN 20X20

€ 1.50
