CAM CHAIN

VL1500 BOULEVARD C90 2005 (K5) USA (E03)

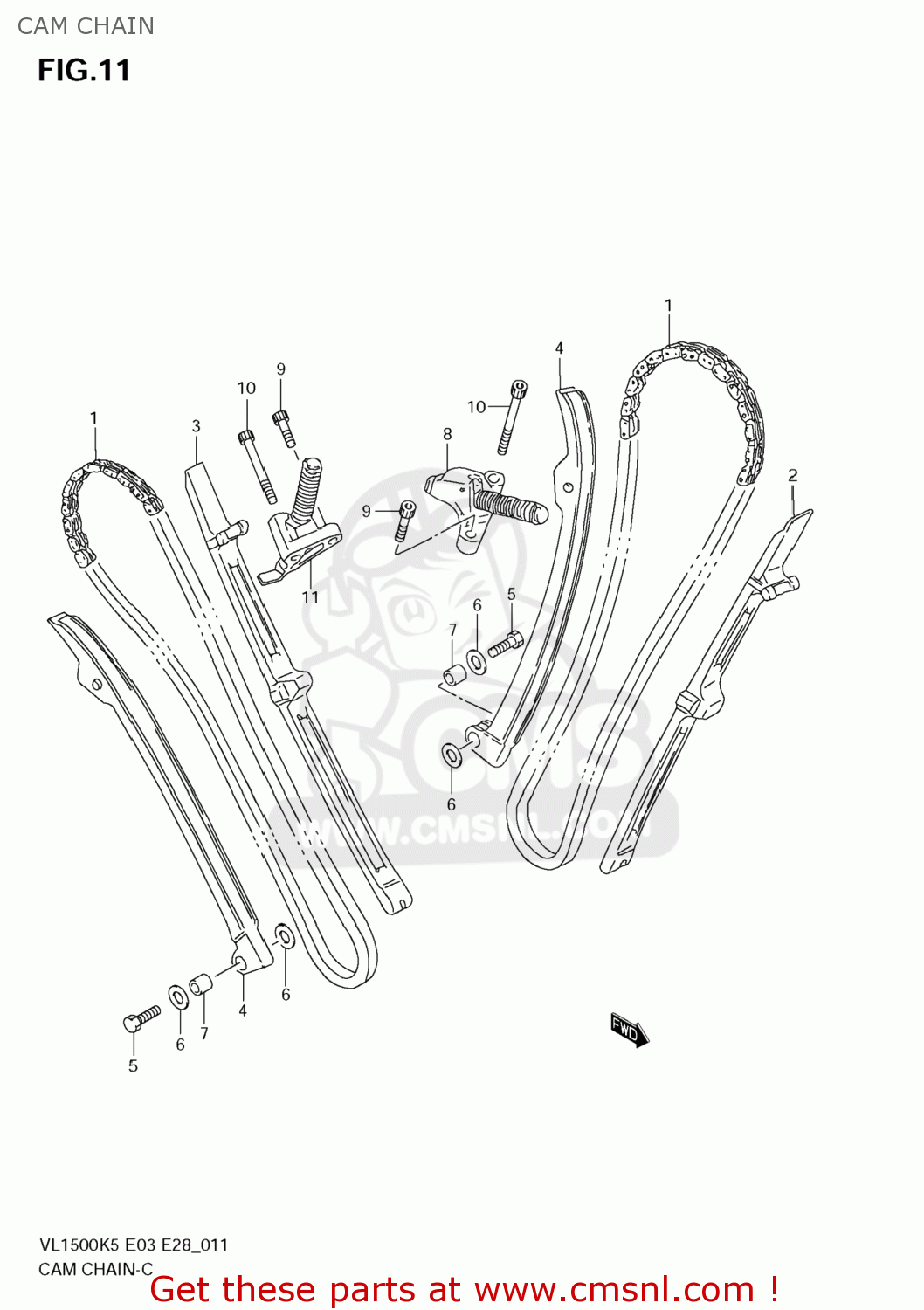

Cam chain diagram VL1500 BOULEVARD C90 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

1276038B00
ref: 1

CHAIN,CAMSHAFT DRIVE

€ 109.50

1277138B00
ref: 2

GUIDE,CAM CHAIN

€ 44.50

1277110F00
ref: 3

GUIDE,CAM CHAIN RR

€ 44.50

1281138B00
ref: 4

TENSIONER,CAM CHAIN

€ 43.00

0910006129
ref: 5

BOLT(6X26)

€ 2.00

0821106182
ref: 6

WASHER

€ 2.00

0918006184
ref: 7

SPACER(6X11X9)

€ 5.00

1283138A01
ref: 8

ADJUSTER ASSY,FR TENSIONER

€ 70.50

071300620B
ref: 9

BOLT

€ 3.00

071300645B
ref: 10

BOLT

€ 2.50

1283238A01
ref: 11

ADJUSTER ASSY,RR TENSIONER

€ 99.00
