STEERING STEM

VL1500 BOULEVARD C90 2005 (K5) USA (E03)

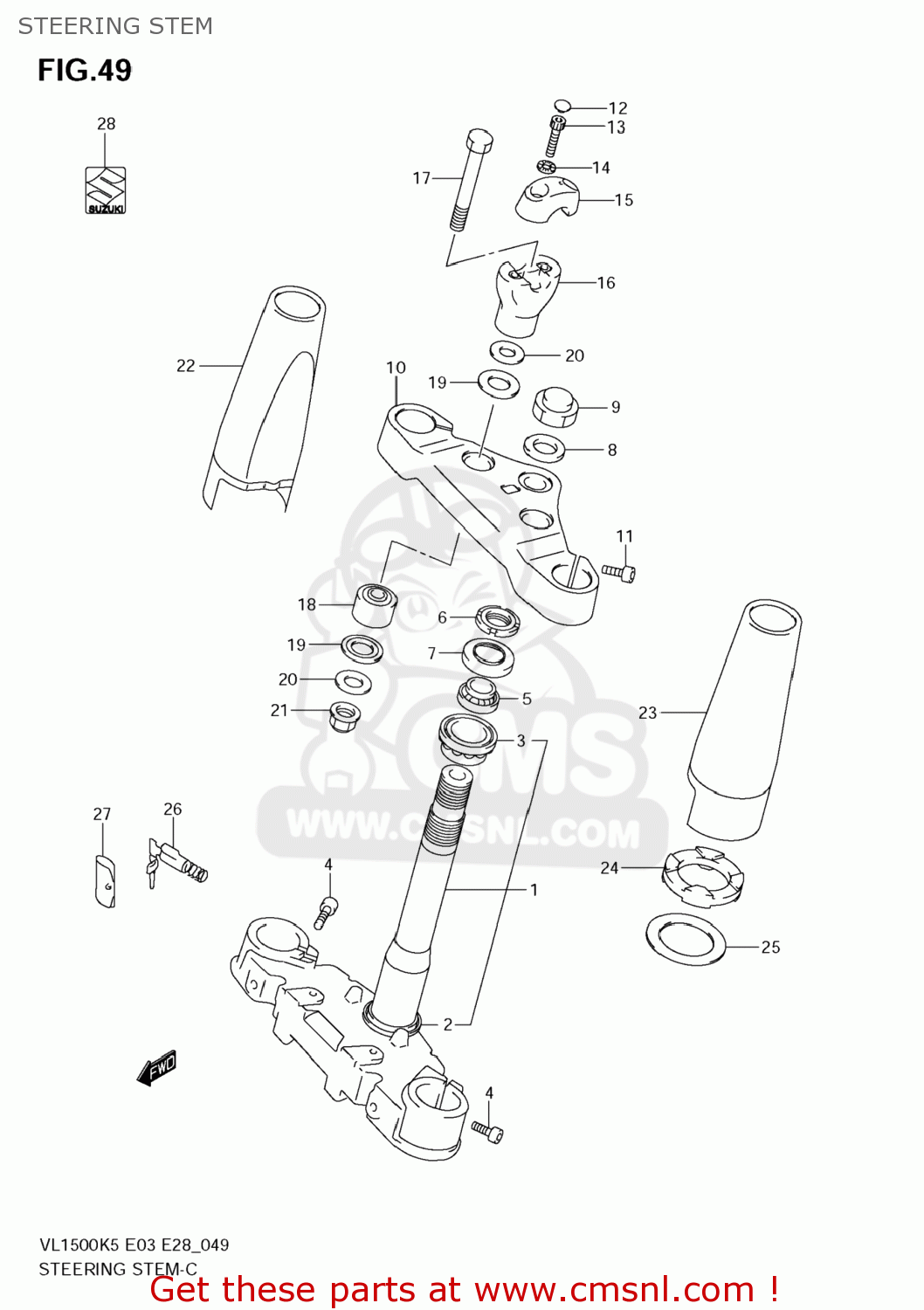

Steering stem diagram VL1500 BOULEVARD C90 2005 (K5) USA (E03)

STEERING STEM VL1500 BOULEVARD C90 2005 (K5) USA (E03)
STEERING STEM VL1500 BOULEVARD C90 2005 (K5) USA (E03)
STEERING STEM VL1500 BOULEVARD C90 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
5141010F70
ref: 1-1
BRACKET,UNDER
€ 1,030.50
1-2
5141010F90
ref: 1-2
BRACKET,UNDER
€ 465.00
2
5164412C00
ref: 2
SEAL,STEERING LWR
5164412C00
€ 5.50
3-1
0926730010
ref: 3-1
BEARING(30X55X17)
0926730010
€ 46.50
3-2
0926530020
ref: 3-2
BEARING(30X55X17)
0926530020
€ 45.50
4
5145110F70
ref: 4
BOLT,STEM
€ 6.00
5-1
0926725009
ref: 5-1
BEARING(25X47X15)
0926725009
€ 40.00
5-2
0926525038
ref: 5-2
BEARING(25X47X15)
0926525038
€ 49.00
6
5163128000
ref: 6
NUT,STEERING STEM(25X44X10)
5163128000
€ 12.50
7
5164340502
ref: 7
DUST SEAL,STEERING UPR
5164340502
€ 8.00
8
5135624B01
ref: 8
WASHER(22.5X32X1.6)
5135624B01
€ 3.00
9
5135324B00
ref: 9
NUT,CAP
5135324B00
€ 21.50
10
5131110F70
ref: 10
HEAD,STEERING STEM
€ 506.00
11
5132106G00
ref: 11
BOLT
5132106G00
€ 5.00
12
0925006009
ref: 12
CAP(OD:14.5)
0925006009
€ 3.50
13
5132110F00
ref: 13
07130-08307
BOLT,HANDLE HOLDER
5132110F00
€ 4.50
14
0916408015
ref: 14
WASHER
0916408015
€ 3.00
15
5621141F20
ref: 15
HOLDER,HANDLE UPR
5621141F20
€ 41.50
16
5622110F70
ref: 16
HOLDER,HANDLE UNDER
€ 86.50
17
5122610F70
ref: 17
BOLT
€ 42.00
18
5624041F20
ref: 18
DAMPER,RUBBER
5624041F20
€ 27.00
19
5624541F20
ref: 19
SEAT,RUBBER
5624541F20
€ 3.50
20
5135441F20
ref: 20
WASHER
€ 6.00
21
5624641F20
ref: 21
NUT
5624641F20
€ 8.00
22
5153010F70
ref: 22
COVER,UPR,R
€ 220.00
23
5154010F70
ref: 23
COVER,UPR,L
5154010F70
€ 278.50
24
5146810F00
ref: 24
SEAT,RUBBER
€ 13.50
25
5146710F70
ref: 25
WASHER
€ 8.50
26
5190038810
ref: 26
LOCK SET,STEERING
5190038810
€ 168.50
27
5192048E00
ref: 27
CASE,STEERING KEY
5192048E00
€ 13.00
28
6828135F00
ref: 28
EMBLEM,S
6828135F00
€ 13.00
