CRANKCASE
VL1500 BOULEVARD C90 2005 (K5) USA (E03)

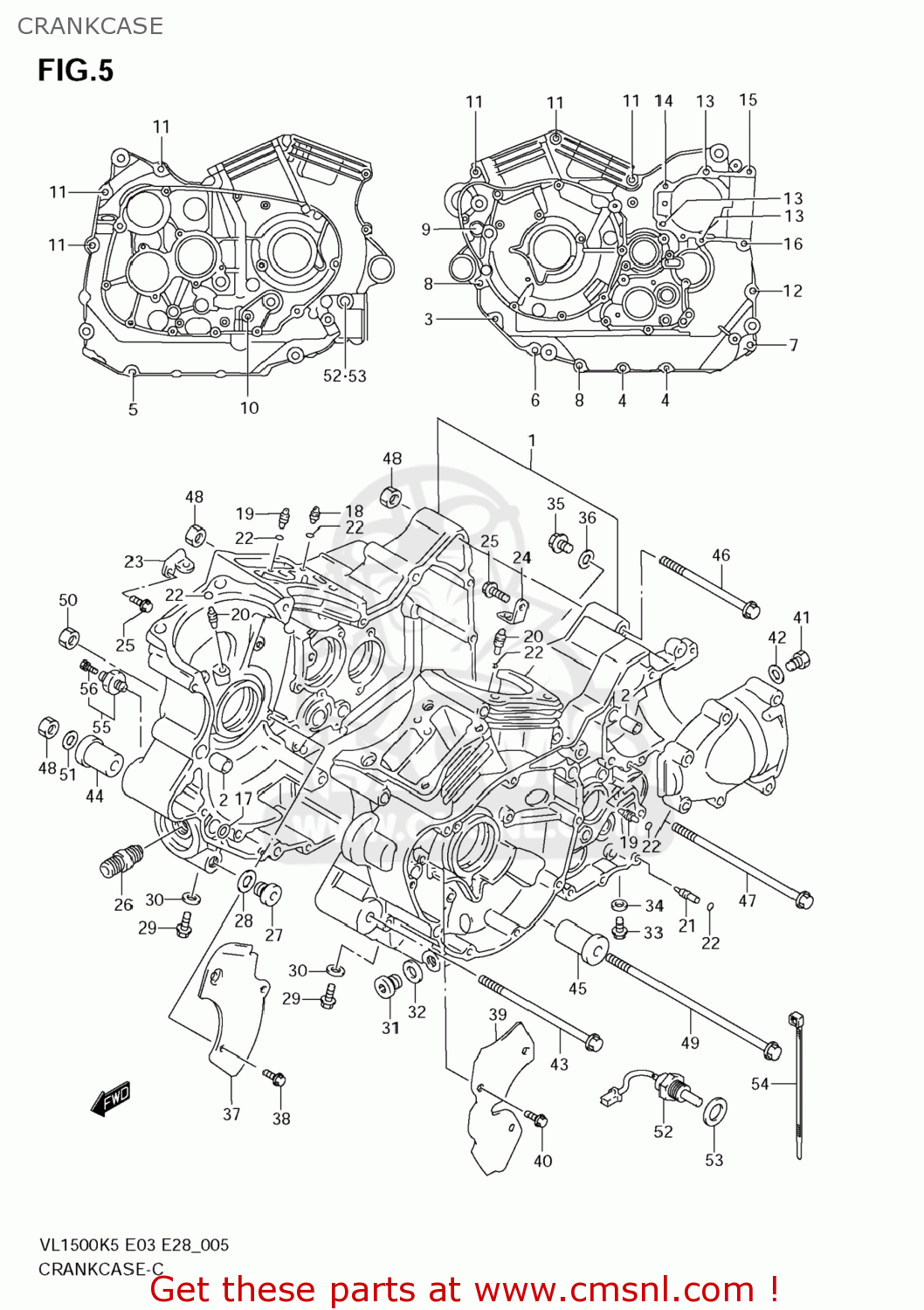

Crankcase diagram VL1500 BOULEVARD C90 2005 (K5) USA (E03)
CRANKCASE VL1500 BOULEVARD C90 2005 (K5) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
1130010872
ref: 1
CRANKCASE SET
€ 2,774.50
2
0920611007
ref: 2
PIN(8.4X11X20)
€ 1.50
3
015500655B
ref: 3
BOLT
€ 2.00
4
015500665B
ref: 4
BOLT
€ 3.00
5
015500685B
ref: 5
BOLT
€ 2.50
6
015500855B
ref: 6
BOLT
€ 3.00
7
015500865B
ref: 7
BOLT
€ 3.00
8
015500870B
ref: 8
BOLT
€ 2.50
9
015500890B
ref: 9
BOLT
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
€ 3.50
12
015500880B
ref: 12
BOLT
€ 4.00
13
015500840B
ref: 13
BOLT
€ 3.50
14
015500850B
ref: 14
BOLT
€ 2.50
15
015500855B
ref: 15
BOLT
€ 3.00
16
015500865B
ref: 16
BOLT
€ 3.00
17
0928012009
ref: 17
O RING(D:1.9,ID:12.6)
€ 2.50
18
0949344002
ref: 18
JET(2.2)
€ 12.00
19
0949328010
ref: 19
JET,AIR(14)
€ 10.50
20
0949380009
ref: 20
JET,PISTON COOLING(0.8)
€ 14.00
21
0949324011
ref: 21
JET,MISSION OIL(1.4)
€ 9.00
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
€ 2.00
23
1643838B00
ref: 23
PLATE,PISTON JET FR
€ 1.50
24
1643938B00
ref: 24
PLATE,PISTON JET RR
€ 2.00
25
015500612B
ref: 25
BOLT
€ 2.50
26
1659106B00
ref: 26
16591-06B01
UNION,OIL STAND
€ 6.00
27
0924816012
ref: 27
PLUG,16X8
€ 4.50
28
0916816002
ref: 28
GASKET(16X22X2) (NAS)
€ 2.00
29
015500812B
ref: 29
BOLT
€ 3.50
30
0916808016
ref: 30
GASKET(8.2X14X1) (NAS)
€ 1.00
31
0924814005
ref: 31
PLUG,14X12
€ 5.00
32
0916814002
ref: 32
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
€ 2.50
33
015500610B
ref: 33
BOLT
€ 2.50
34
0916806023
ref: 34
GASKET(5.8X13X1.2) (NAS)
€ 2.00
35
0924712006
ref: 35
PLUG(12X10)
€ 2.50
36
0916812002
ref: 36
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
37
1152138B01
ref: 37
PLATE,OIL SEPARATOR
€ 4.00
38
0912506110
ref: 38
BOLT(6X12)
€ 2.50
39
1152210F00
ref: 39
PLATE,OIL SEPARATOR FR
€ 4.00
40
015470612B
ref: 40
BOLT
€ 2.00
41
0924712106
ref: 41
PLUG,12X20
€ 2.50
42
0916812002
ref: 42
GASKET(12.1X16.2X3.7) (NAS)
€ 2.00
43
0910310145
ref: 43
BOLT(10X205)
€ 13.00
44
1162110F10
ref: 44
SPACER,ENG MTG
€ 16.50
45
1161020C00
ref: 45
SPACER,ENGINE MOUNT(L27)
€ 10.00
46
0910310119
ref: 46
BOLT(10X140)
€ 7.50
47
0910310278
ref: 47
BOLT(10X160)
€ 9.50
48
083193110B
ref: 48
NUT
€ 3.00
49
0910310226
ref: 49
BOLT(10X265)
€ 12.00
50
0915910047
ref: 50
NUT
€ 7.50
51
0916010502
ref: 51
WASHER (10.5X20X3.2)
€ 2.50
51
0916010502
ref: 51
WASHER (10.5X20X3.2)
€ 2.50
52
1365042F10
ref: 52
SENSOR,OIL TEMP
€ 108.00
53
0916814015
ref: 53
GASKET(14X20X1.5) (NAS)
€ 1.50
54-1
0940714407
ref: 54-1
CLAMP(L:145)
€ 4.00
54-2
0940710404
ref: 54-2
CLAMP(L:100)
€ 4.00
55
3782033D10
ref: 55
SWITCH ASSY,OIL PRESSURE
€ 29.00
56
3782233D00
ref: 56
BOLT,OIL PRESSURE SWITCH
€ 3.00
