BATTERY

VL1500 BOULEVARD C90 2006 (K6) USA (E03)

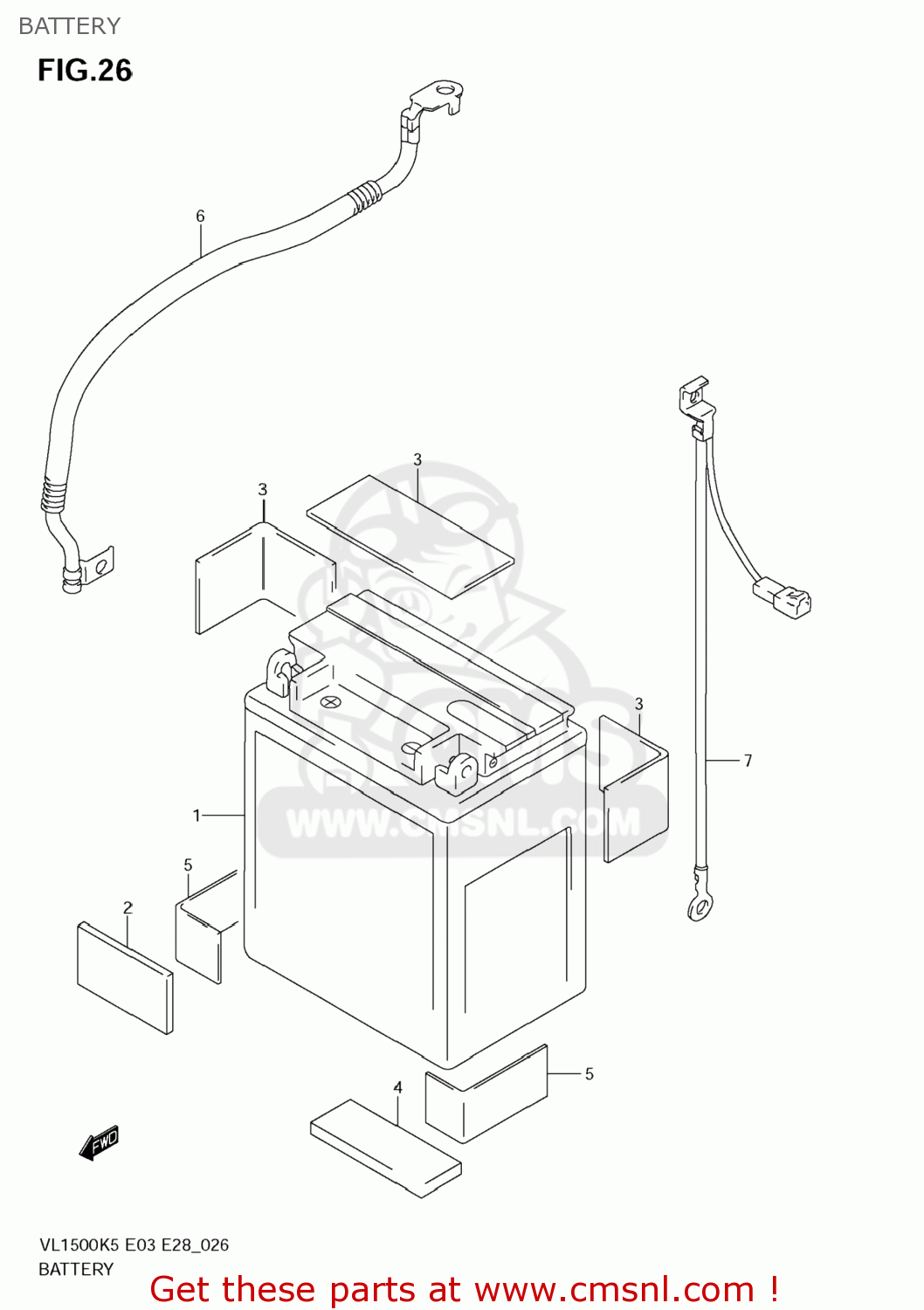

Battery diagram VL1500 BOULEVARD C90 2006 (K6) USA (E03)

BATTERY VL1500 BOULEVARD C90 2006 (K6) USA (E03)

BATTERY VL1500 BOULEVARD C90 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3361010F10
ref: 1

BATTERY ASSY,F

€ 99.00

2

3365210F10
ref: 2

PROTECTOR(40X70X5.0)

€ 5.50

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

3

3365137000
ref: 3

PROTECTOR(170X95X3.0)

€ 5.00

4

3365210F00
ref: 4

PROTECTOR,BATTERY(50X90X4)

€ 4.50

5

3365249000
ref: 5

PROTECTOR(20X90)X4

€ 2.00

6

3382010F00
ref: 6

WIRE,BATTERY PLUS LEAD

€ 30.00

7

3386010F20
ref: 7

WIRE,BATTERY MINUS LEAD

€ 38.00
