REAR SWINGING ARM

VL1500 BOULEVARD C90 2006 (K6) USA (E03)

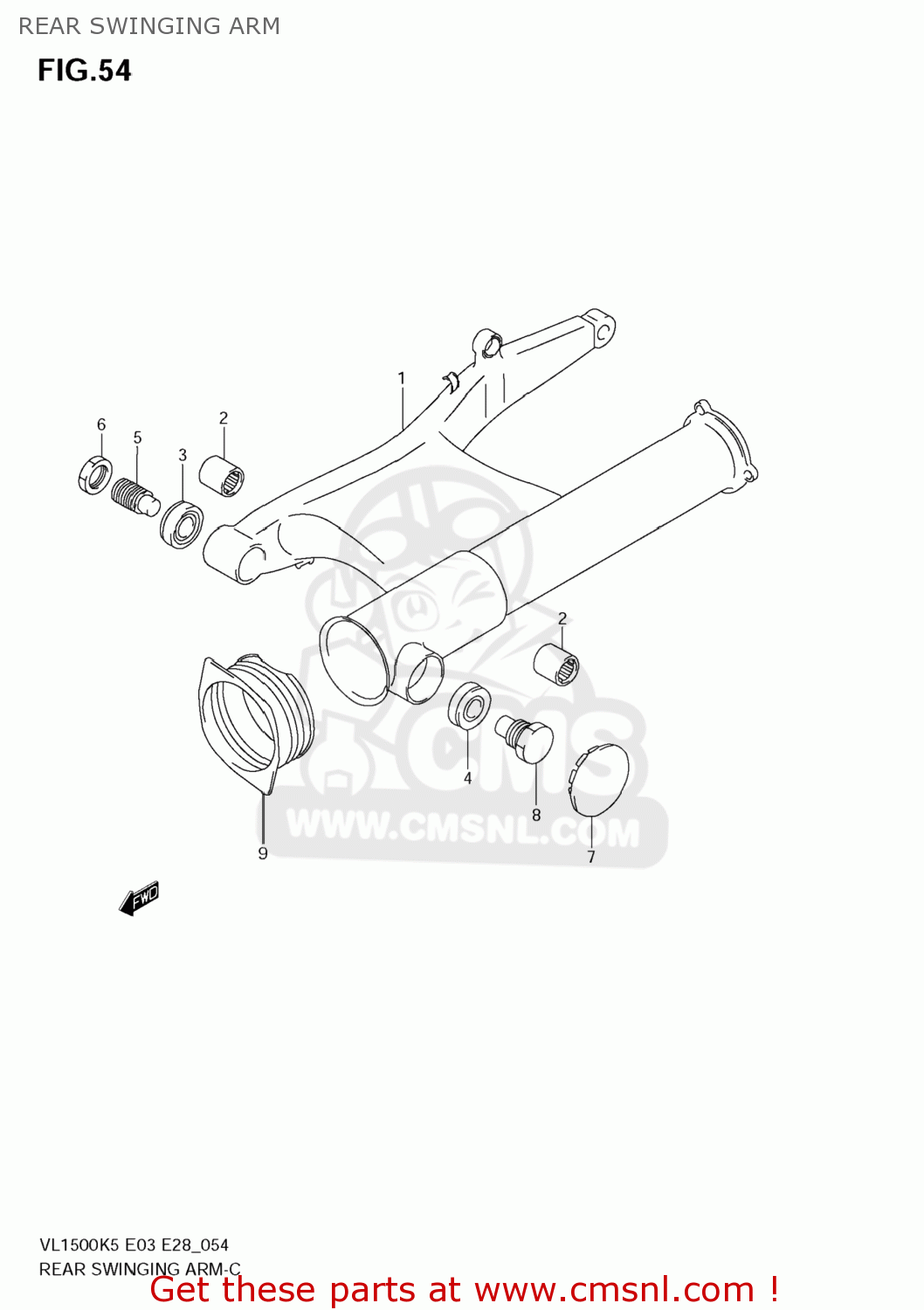

Rear swinging arm diagram VL1500 BOULEVARD C90 2006 (K6) USA (E03)

prices are in EUR

ref

part #

description

quantity

6110010860019
ref: 1

SWINGINGARM SET,RR

€ 932.50

0926320071
ref: 2

BEARING(20X27X23.5)

€ 21.50

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

0926517013
ref: 3

BEARING(17X40X13.25)

€ 47.00

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

0926517012
ref: 4

BEARING(17X40X13.25)

€ 35.00

6121324A00
ref: 5

BOLT,RR SWGARM PIVOT

€ 17.00

0914024007
ref: 6

NUT

€ 4.50

6122205A01
ref: 7

CAP,RR SWINGING ARM PIVOT NUT

€ 8.00

6121310F00
ref: 8

BOLT,SWINGINGARM PIVOT,L

€ 16.00

6137210F00
ref: 9

BOOT,PROPELLER SHAFT

€ 18.50
