FUEL INLET

VL1500 BOULEVARD C90 2006 (K6) USA (E03)

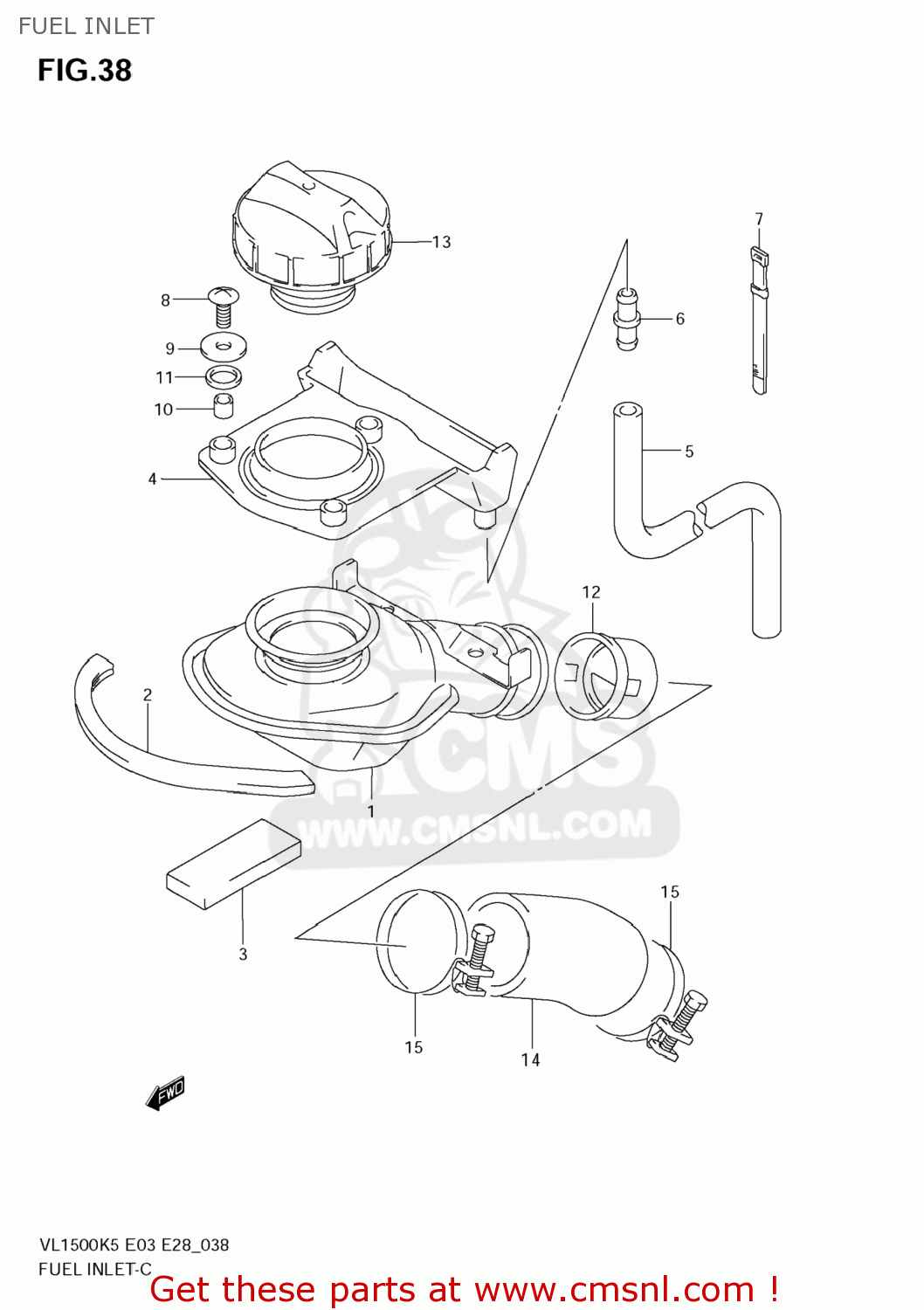

Fuel inlet diagram VL1500 BOULEVARD C90 2006 (K6) USA (E03)

FUEL INLET VL1500 BOULEVARD C90 2006 (K6) USA (E03)
FUEL INLET VL1500 BOULEVARD C90 2006 (K6) USA (E03)
FUEL INLET VL1500 BOULEVARD C90 2006 (K6) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4419010F00
ref: 1
INLET,FUEL TANK
4419010F00
€ 172.50
2
6824104X50300
ref: 2
MOLDING
6824104X50300
€ 6.00
3
1117945D00
ref: 3
CUSHION
1117945D00
€ 4.50
4
4426110F00
ref: 4
TRAY,FUEL TANK INLET
4426110F00
€ 23.00
5
093527010300B
ref: 5
HOSE(7X10.2X2000)
093527010300B
€ 17.50
6
0936708001
ref: 6
JOINT
0936708001
€ 2.50
7
0940718402
ref: 7
CLAMP(L:165)
0940718402
€ 2.50
8
021420516B
ref: 8
SCREW
021420516B
€ 2.50
9
0916005046
ref: 9
WASHER(5.5X20X1.4)
0916005046
€ 2.00
10
0918005047
ref: 10
SPACER(5.5X8X7.5)
0918005047
€ 2.50
11
4455910F00
ref: 11
CUSHION,FUEL TANK INLET UPR
4455910F00
€ 4.50
12
8928050F00
ref: 12
VALVE,FUEL TANK INLET
8928050F00
€ 17.00
13
4420010F01
ref: 13
CAP ASSY,FUEL TANK
4420010F01
€ 69.00
14
4442210F00
ref: 14
HOSE,FUEL TANK FILLER
4442210F00
€ 46.00
15
0940052313
ref: 15
CLAMP
€ 2.50
