FRONT FENDER (MODEL Y/K1/K2)

VL1500 INTRUDER 2002 (K2) USA (E03)

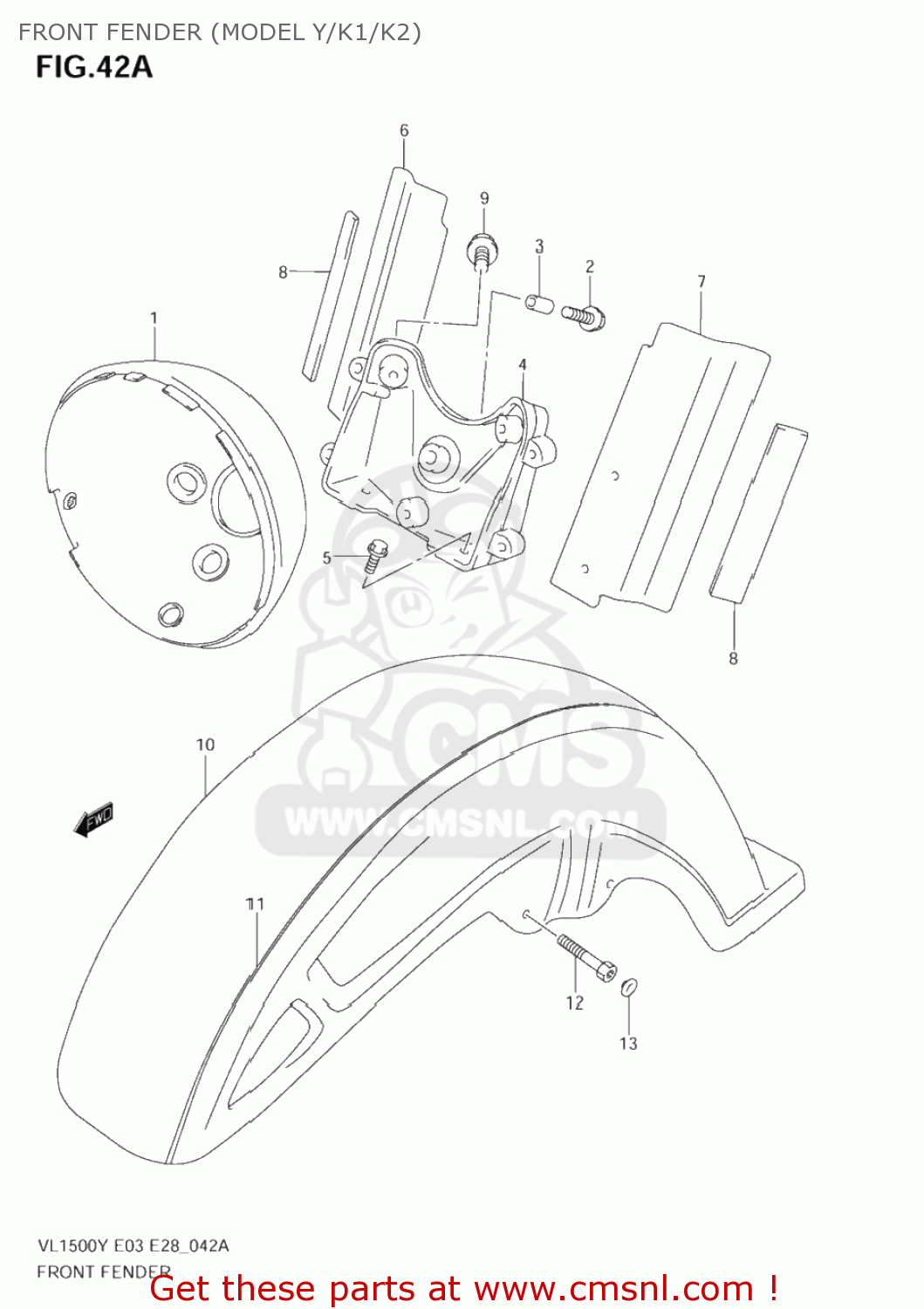

Front fender (model y/k1/k2) diagram VL1500 INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL Y/K1/K2) VL1500 INTRUDER 2002 (K2) USA (E03)

FRONT FENDER (MODEL Y/K1/K2) VL1500 INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181010F00
ref: 1

HOUSING,HEADLAMP

€ 205.00

2

0911606147
ref: 2

BOLT(6X25)

€ 4.00

3

0918006076
ref: 3

SPACER(6.8X12X11)

€ 3.00

4

5185010F01
ref: 4

BRACKET,HEADLAMP HOUSING

€ 121.00

5

0155006163
ref: 5
01550-0616A

BOLT

€ 2.50

6

5187110F00
ref: 6

PLATE,HEADLAMP BRACKET,R

€ 26.00

7

5188110F00
ref: 7

PLATE,HEADLAMP BRACKET,L

€ 27.50

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

0913906027
ref: 9

SCREW(6X12)

€ 3.00

10-1

5311010F1033J
ref: 10-1
53110-10F11-33J

FENDER COMP,FRONT

€ 707.50

10-2

5311010F10BU6
ref: 10-2
53110-10F11-BU6

FENDER COMP,FRONT

€ 638.50

10-3

5311010F10BU7
ref: 10-3
53110-10F11-BU7

FENDER COMP,FRONT

€ 657.00

10-4

5311010F10FG1
ref: 10-4
53110-10F11-FG1

FENDER,FR

€ 708.00

10-5

5311010F10FG2
ref: 10-5
53110-10F11-FG2

FENDER,FRONT

€ 428.50

10-6

5311010F202AX
ref: 10-6
53110-10F21-2AX

FENDER COMP,FR

€ 707.50

10-7

5311010F20JE2
ref: 10-7
53110-10F21-JE2

FENDER COMP,FR

€ 657.00

10-8

5311010F20JE3
ref: 10-8
53110-10F21-JE3

FENDER COMP,FR

€ 665.50

11-1

6815010F00BU8
ref: 11-1

TAPE SET,FR FENDER

€ 70.00

11-2

6815010F00BU9
ref: 11-2

TAPE SET,FRONT FENDER

€ 87.50

11-3

6815010F00BV1
ref: 11-3

TAPE SET,FR FENDER

€ 96.00

11-4

6815010F00EZ7
ref: 11-4

TAPE SET,FR FENDER

€ 73.00

11-5

6815010F00EZ9
ref: 11-5

TAPE SET,FR FENDER

€ 0.00

11-6

6815010F00FH5
ref: 11-6

TAPE SET,FR FENDER

€ 69.00

11-7

6815010F00JE5
ref: 11-7

TAPE SET,FR FENDER

€ 73.00

11-8

6815010F00JE4
ref: 11-8

TAPE SET,FR FENDER

€ 73.00

12

0713008407
ref: 12

BOLT

€ 3.50

13

0925006011
ref: 13

CAP(OD:11)

€ 2.50
