REAR COMBINATION LAMP

VL1500 INTRUDER 2002 (K2) USA (E03)

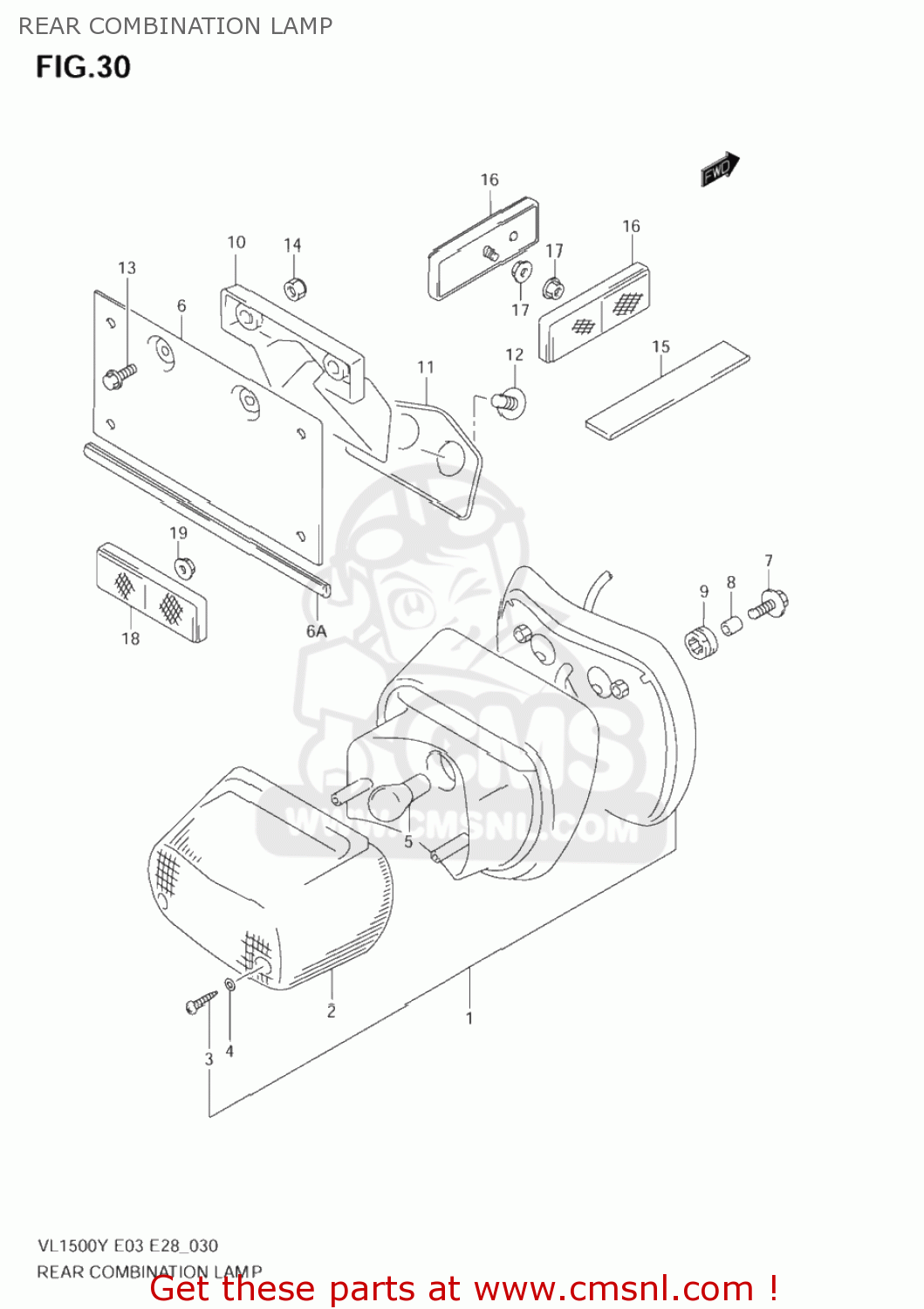

Rear combination lamp diagram VL1500 INTRUDER 2002 (K2) USA (E03)

REAR COMBINATION LAMP VL1500 INTRUDER 2002 (K2) USA (E03)

REAR COMBINATION LAMP VL1500 INTRUDER 2002 (K2) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

3571010F30
ref: 1

LAMP ASSY,RR COMBINATION

€ 504.00

2

3571210F30
ref: 2

LENS

€ 50.00

3

0321104207
ref: 3

SCREW

€ 1.50

4

3562743010
ref: 4

GASKET (NAS)

€ 2.00

5

0947112083
ref: 5
09471-12128

BULB(12V21/5W)

€ 6.00

6

6346110F30
ref: 6

HOLDER,LICENSE PLATE

€ 0.00

6A

9463519C00
ref: 6A

MOLDING

€ 6.00

7

0911606115
ref: 7

BOLT(6X20)

€ 2.00

8

0918006310
ref: 8

SPACER(6.5X10X10)

€ 2.00

9

0932009010
ref: 9

CUSHION

€ 2.50

10

3592810F00
ref: 10

STAY,LICENSE PLATE HOLDER

€ 119.00

11

3592910F00
ref: 11

CUSHION,LICENSE PLATE HOLDER

€ 8.00

12

0911606168
ref: 12

BOLT(6X16)

€ 2.50

13

0913906067
ref: 13

SCREW(6X16)

€ 3.00

14

0831310067
ref: 14

NUT

€ 2.00

15

3365226E00
ref: 15

PROTECTOR(20X90)X1.0

€ 3.00

16

3597038B00
ref: 16

REFLEX REFLECTOR ASSY,RR

€ 27.00

17

0831610053
ref: 17
08316-1005A

NUT

€ 2.50

18

3597007F00
ref: 18
35970-07F01

REFLECTOR ASSEMBLY,REAR

€ 20.50

19

0831610053
ref: 19
08316-1005A

NUT

€ 2.50
