TURNSIGNAL LAMP (MODEL K4)

VL1500 INTRUDER 2002 (K2) USA (E03)

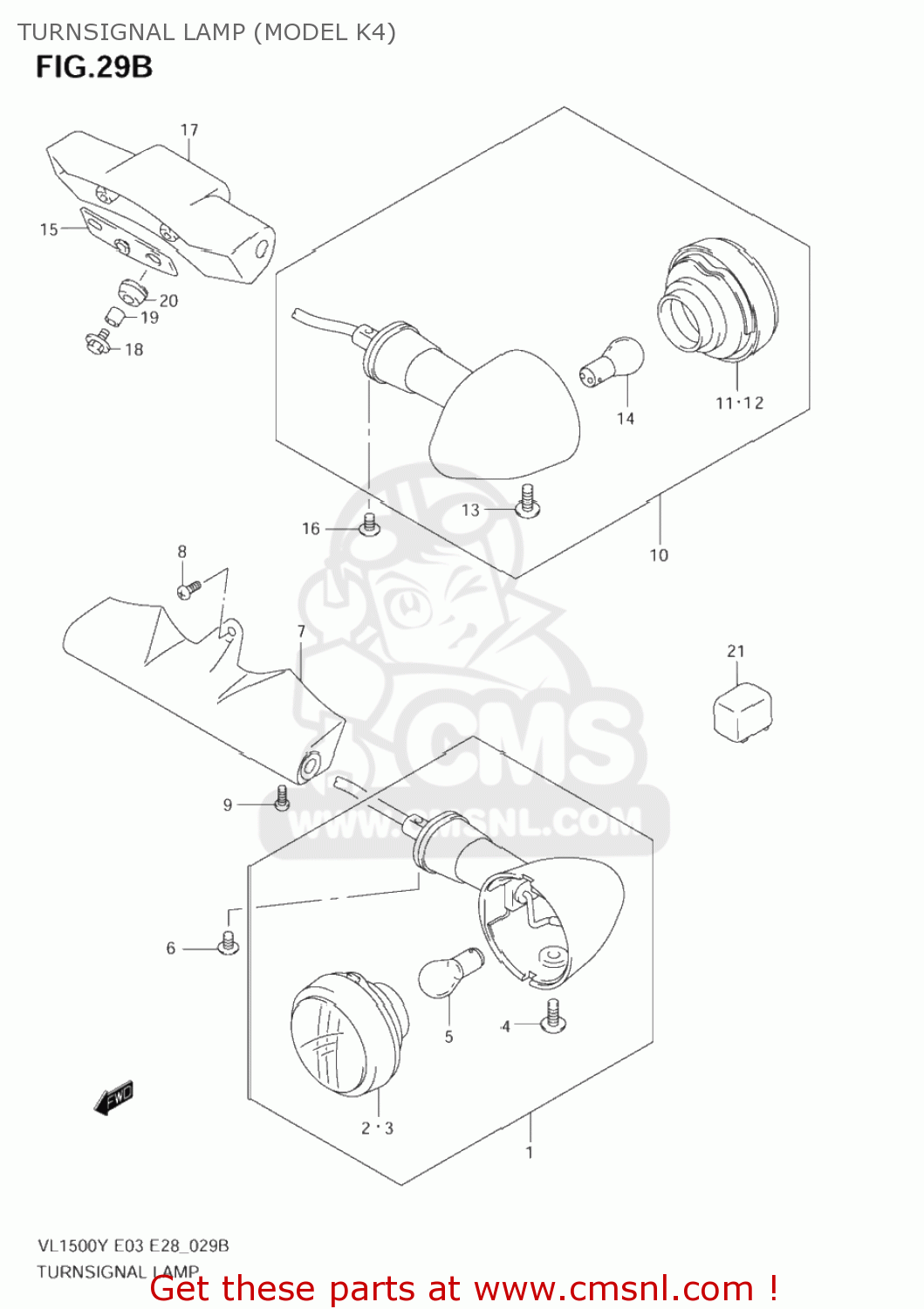

Turnsignal lamp (model k4) diagram VL1500 INTRUDER 2002 (K2) USA (E03)

TURNSIGNAL LAMP (MODEL K4) VL1500 INTRUDER 2002 (K2) USA (E03)
TURNSIGNAL LAMP (MODEL K4) VL1500 INTRUDER 2002 (K2) USA (E03)
TURNSIGNAL LAMP (MODEL K4) VL1500 INTRUDER 2002 (K2) USA (E03)
prices are in EUR
ref
part #
description
quantity
1-1
3560138AB0
ref: 1-1
LAMP ASSY,FR TURN SIGNAL,R
3560138AB0
€ 99.50
1-2
3560238AB0
ref: 1-2
LAMP ASSY,FR TURN SIGNAL,L
3560238AB0
€ 99.50
2
3561038AA0
ref: 2
LENS
3561038AA0
€ 19.50
3
3563038AA0
ref: 3
LENS
3563038AA0
€ 19.50
4
3562338AA0
ref: 4
SCREW(4X10)
3562338AA0
€ 4.00
5
0947112083
ref: 5
09471-12128
BULB(12V21/5W)
0947112083
€ 6.00
6
0214206107
ref: 6
SCREW
0214206107
€ 2.00
7
3567110F00
ref: 7
STAY,FR TURNSIGNAL
3567110F00
€ 396.00
8
0913906027
ref: 8
SCREW(6X12)
0913906027
€ 3.00
9
0913908007
ref: 9
SCREW(8X16)
0913908007
€ 4.50
10-1
3560338AB0
ref: 10-1
35603-38AB3
LAMP ASSY,REAR
€ 99.50
10-2
3560438AB0
ref: 10-2
35604-38AB3
LAMP ASSY,REAR
€ 99.50
11
3563038AE0
ref: 11
35630-38AE1
LENS
€ 19.50
12
3561038AE0
ref: 12
35610-38AE1
LENS
3561038AE0
€ 19.50
13
3562338AA0
ref: 13
SCREW(4X10)
3562338AA0
€ 4.00
14
0947112045
ref: 14
BULB(12V21W)
0947112045
€ 5.00
15
3567410F00
ref: 15
CUSHION,RR TURN STAY
3567410F00
€ 10.50
16
0214206107
ref: 16
SCREW
0214206107
€ 2.00
17
3562110F00
ref: 17
STAY,RR TURNSIGNAL
€ 326.50
18
0911606115
ref: 18
BOLT(6X20)
0911606115
€ 2.00
19
0918006310
ref: 19
SPACER(6.5X10X10)
0918006310
€ 2.00
20
0932009010
ref: 20
CUSHION
0932009010
€ 2.50
21
3861003F00
ref: 21
RELAY ASSY,TURNSIGNAL LAMP
3861003F00
€ 88.50
