FRONT FENDER (MODEL W/X)

VL1500B INTRUDER 2003 (K3) USA (E03)

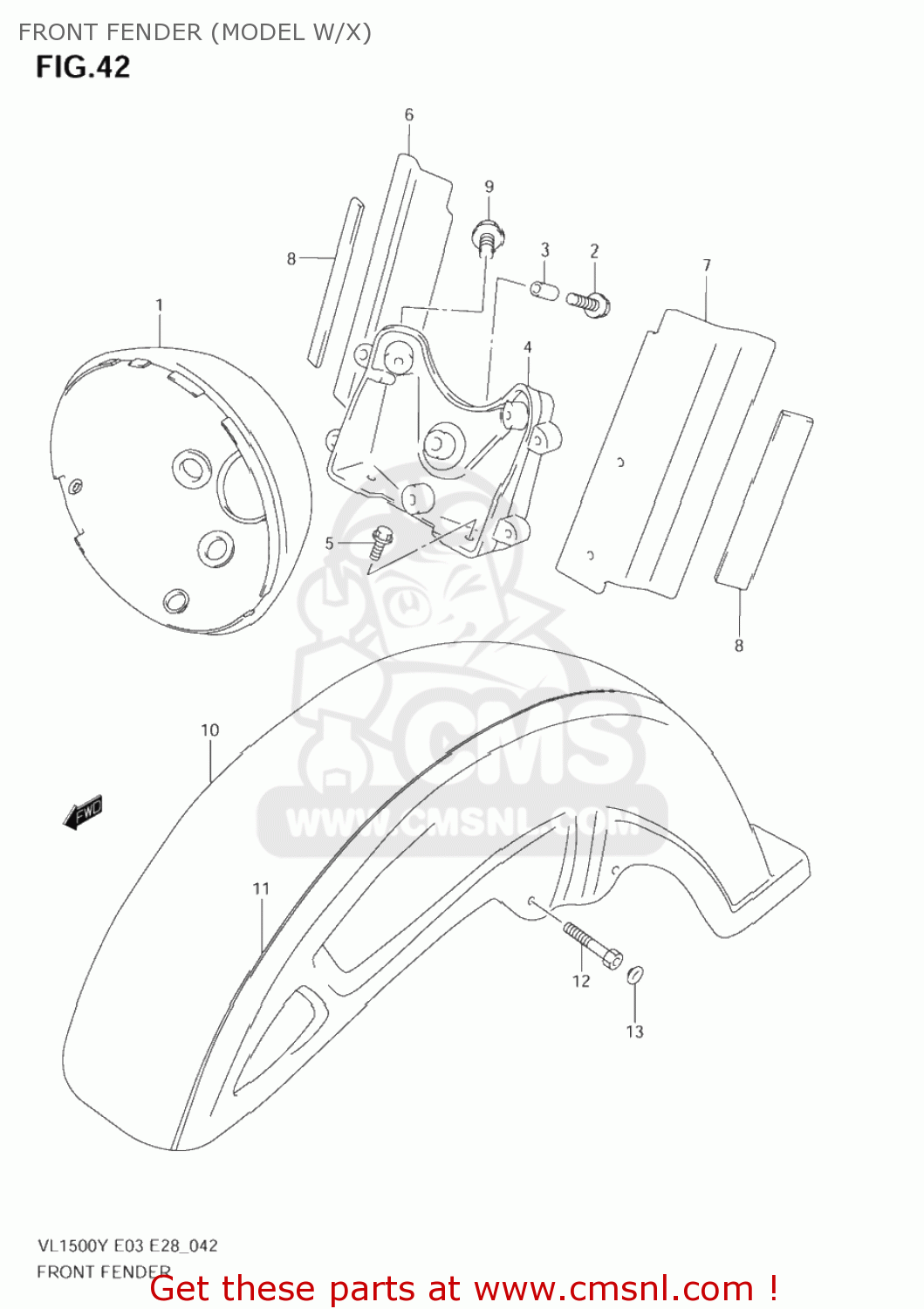

Front fender (model w/x) diagram VL1500B INTRUDER 2003 (K3) USA (E03)

FRONT FENDER (MODEL W/X) VL1500B INTRUDER 2003 (K3) USA (E03)

FRONT FENDER (MODEL W/X) VL1500B INTRUDER 2003 (K3) USA (E03)

prices are in EUR

ref

part #

description

quantity

1

5181010F00
ref: 1

HOUSING,HEADLAMP

€ 205.00

2

0911606147
ref: 2

BOLT(6X25)

€ 4.00

3

0918006076
ref: 3

SPACER(6.8X12X11)

€ 3.00

4

5185010F00
ref: 4
51850-10F01

BRACKET,HEADLAMP HOUSING

€ 121.00

5

0155006163
ref: 5
01550-0616A

BOLT

€ 2.50

6

5187110F00
ref: 6

PLATE,HEADLAMP BRACKET,R

€ 26.00

7

5188110F00
ref: 7

PLATE,HEADLAMP BRACKET,L

€ 27.50

8

3365137000
ref: 8

PROTECTOR(170X95X3.0)

€ 5.00

9

0913906027
ref: 9

SCREW(6X12)

€ 3.00

10-1

5311010F00E6M
ref: 10-1
53110-10F01-E6M

FENDER,FRONT

€ 496.00

10-2

5311010F00K7D
ref: 10-2
53110-10F01-K7D

FENDER,FRONT

€ 633.00

10-3

5311010F00K7E
ref: 10-3
53110-10F11-K7E

FENDER,FRONT

€ 708.00

10-4

5311010F00M4P
ref: 10-4
53110-10F01-M4P

FENDER COMP,FRONT

€ 708.00

10-5

5311010F00M4R
ref: 10-5

FENDER FRONT

€ 588.00

11-1

6815010F00K7W
ref: 11-1

TAPE SET,FR FENDER

€ 83.50

11-2

6815010F00K7Y
ref: 11-2

TAPE SET,FR FENDER

€ 74.00

11-3

6815010F00K8A
ref: 11-3

TAPE SET,FR FENDER

€ 73.00

11-4

6815010F00M5M
ref: 11-4

TAPE SET,FRONT FENDER

€ 73.50

11-5

6815010F00M5N
ref: 11-5

TAPE SET,FR FENDER

€ 73.00

12

0713008457
ref: 12

BOLT

€ 3.00

13

0925006011
ref: 13

CAP(OD:11)

€ 2.50
