HEADLAMP
VL1500B INTRUDER 2003 (K3) USA (E03)

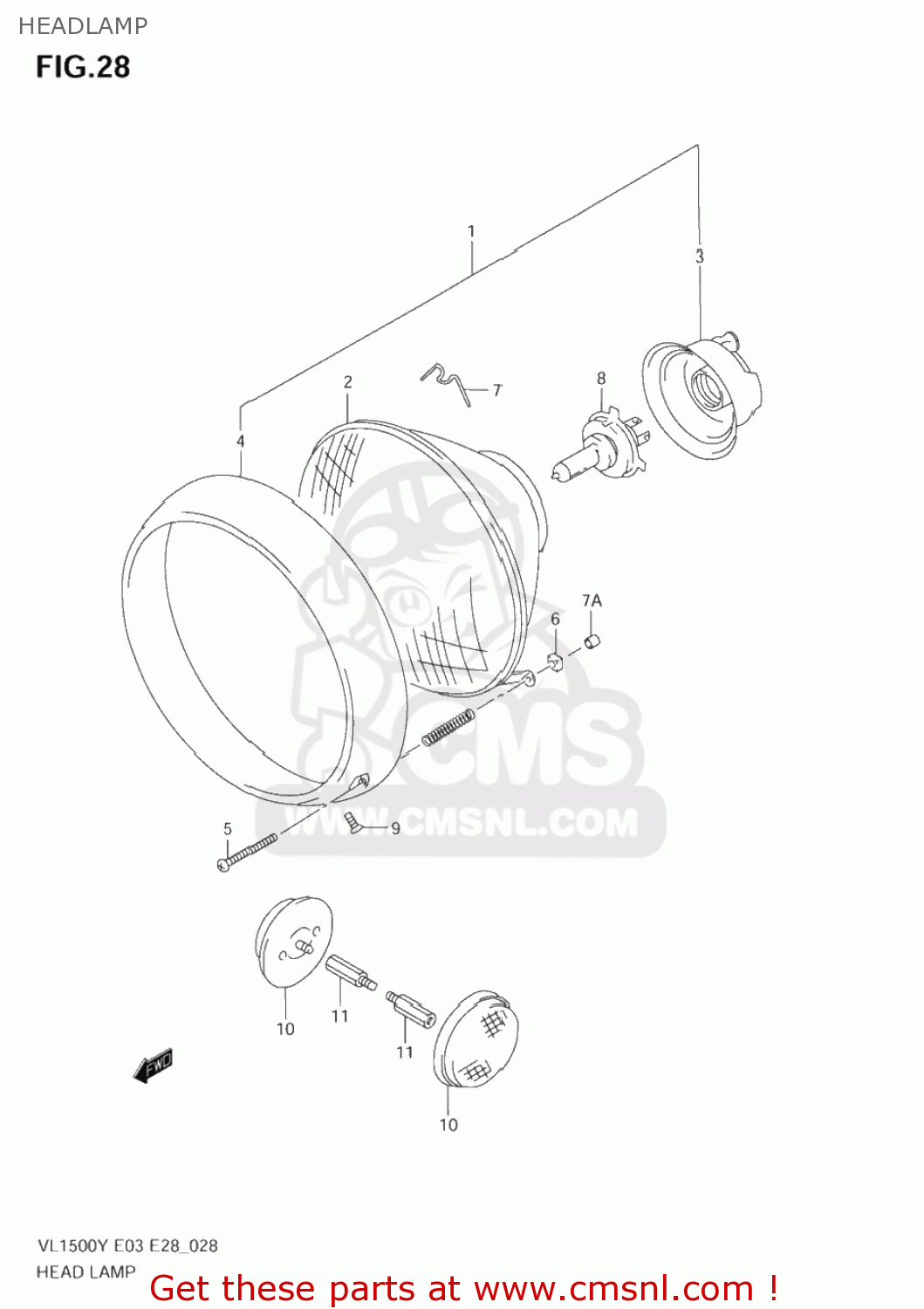

Headlamp diagram VL1500B INTRUDER 2003 (K3) USA (E03)
HEADLAMP VL1500B INTRUDER 2003 (K3) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
3510010F30999
ref: 1
HEADLAMP ASSY
€ 265.00
2
3512110F30
ref: 2
LAMP UNIT
€ 233.00
2A
3512710F00
ref: 2A
RETAINING RING ASSY
€ 25.00
3
3517320A01
ref: 3
COVER,SOCKET
€ 14.50
4
3511110F20
ref: 4
RIM ASSY
€ 114.50
5
3515145900
ref: 5
SCREW
€ 4.00
6
3515215611
ref: 6
NUT
€ 3.50
7
3512810F00
ref: 7
SPRING
€ 4.50
7A
3515843400
ref: 7A
CAP,SCREW
€ 2.00
8
0947112060
ref: 8
BULB(12V60/55W,H4)
€ 8.00
9
0912605003
ref: 9
SCREW(5X12)
€ 2.50
10
3595049080
ref: 10
REFLEX REFLECTOR,RR
€ 17.50
11-1
3595905900
ref: 11-1
09119-05023
BOLT,FRONT SIDE,REAR
€ 7.50
11-2
0911905023
ref: 11-2
BOLT(5X10)
€ 7.50
