TRANSMISSION

VL1500B INTRUDER 2003 (K3) USA (E03)

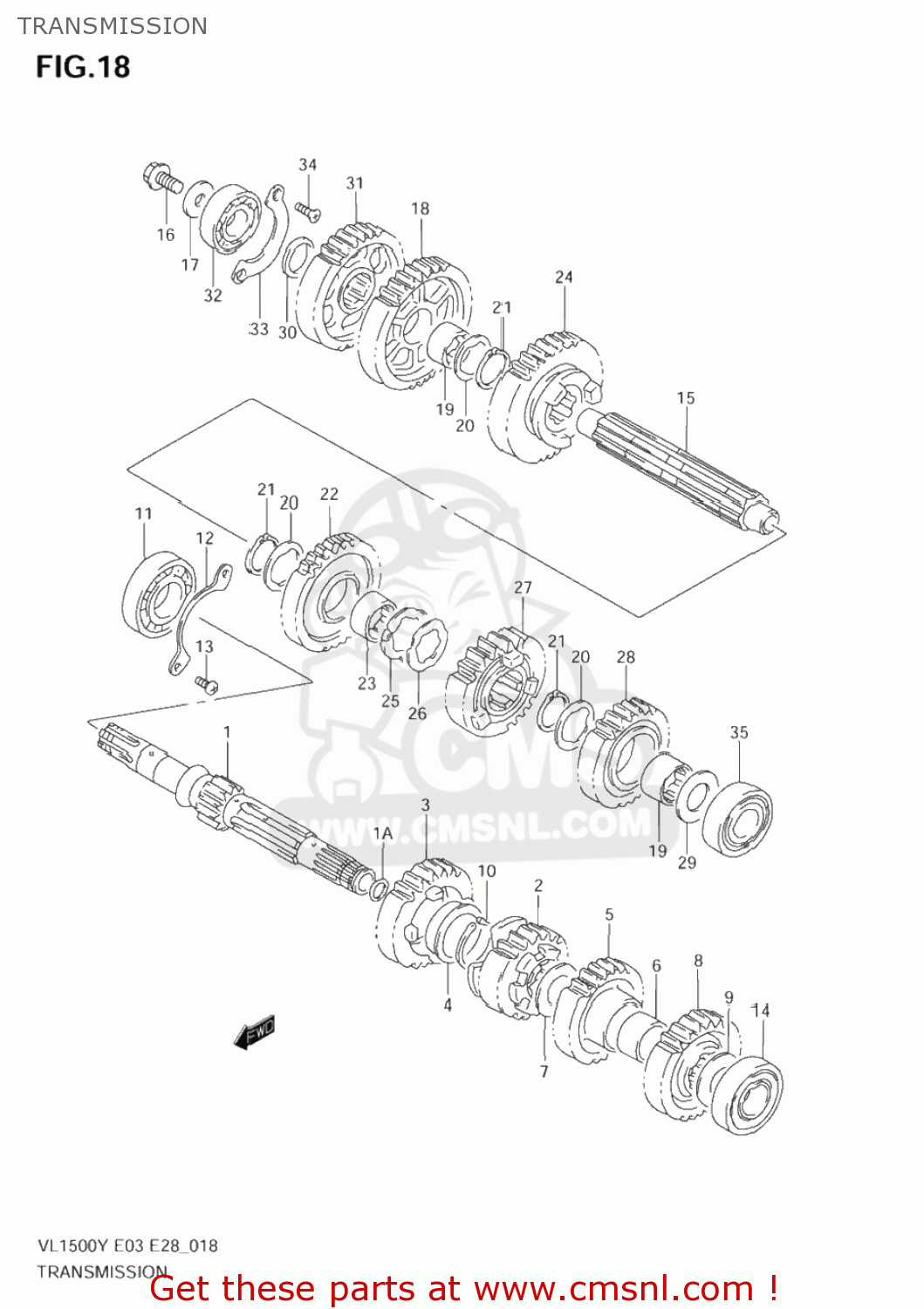

Transmission diagram VL1500B INTRUDER 2003 (K3) USA (E03)

TRANSMISSION VL1500B INTRUDER 2003 (K3) USA (E03)
TRANSMISSION VL1500B INTRUDER 2003 (K3) USA (E03)
TRANSMISSION VL1500B INTRUDER 2003 (K3) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
2412038B20
ref: 1
SHAFT,COUNTER(NT:12)
2412038B20
€ 285.00
1A
0928017004
ref: 1A
O RING(D:1.9,ID:16.6)
0928017004
€ 3.00
2-1
2422138B11
ref: 2-1
24221-38B12
GEAR,SECOND DRIVE (NT:17)
€ 160.50
2-2
2422138B12
ref: 2-2
GEAR,2ND DRIVE(NT:17)
2422138B12
€ 160.50
3
2423138B11
ref: 3
GEAR,3RD DRIVE(NT:21)
2423138B11
€ 129.50
4
0930128001
ref: 4
BUSH(28X32X2)
0930128001
€ 19.50
5
2424138B21
ref: 5
GEAR,4TH DRIVE(NT:24)
2424138B21
€ 146.50
6
2424238B10
ref: 6
BUSH,4TH DRIVE GEAR
2424238B10
€ 27.50
7
0918122195
ref: 7
SHIM(22X32X1)
€ 4.00
8
2425138B20
ref: 8
GEAR,5TH DRIVE(NT:26)
€ 121.50
9
0918120223
ref: 9
SHIM(20X32X1)
0918120223
€ 3.00
10
0833131286
ref: 10
08331-3128A
CIRCLIP
0833131286
€ 2.50
11
0926225080
ref: 11
BEARING(25X62X17)
0926225080
€ 21.50
12
2474138A00
ref: 12
RETAINER,CNTR SHAFT BEARING
2474138A00
€ 4.00
13
0211206123
ref: 13
02112-0612A
SCREW
0211206123
€ 1.50
14
0926220080
ref: 14
BEARING(20X52X15)
0926220080
€ 21.50
15
2413138B20
ref: 15
SHAFT,DRIVE
2413138B20
€ 245.00
16
0910310112
ref: 16
BOLT(10X24)
0910310112
€ 4.00
17
0821110305
ref: 17
WASHER
0821110305
€ 3.00
18
2431138B20
ref: 18
GEAR,1ST DRIVEN(NT:36)
€ 169.50
19
2433224A00
ref: 19
BUSH
2433224A00
€ 18.00
20
0916728001
ref: 20
WASHER,LOCK
0916728001
€ 3.00
21
0833131286
ref: 21
08331-3128A
CIRCLIP
0833131286
€ 2.50
22
2432138B20
ref: 22
GEAR,2ND DRIVEN(NT:31)
2432138B20
€ 188.50
23
2433249000
ref: 23
BUSH,3RD DRIVEN GEAR
2433249000
€ 13.50
24-1
2433138B11
ref: 24-1
24331-38B12
GEAR,THIRD DRIVEN (NT:28)
€ 177.50
24-2
2433138B12
ref: 24-2
GEAR,3RD DRIVEN(NT:28)
2433138B12
€ 177.50
25
0916928001
ref: 25
WASHER
0916928001
€ 3.00
26
0916728002
ref: 26
WASHER,LOCK
0916728002
€ 3.00
27-1
2434138B11
ref: 27-1
24341-38B12
GEAR,FOURTH DRIVEN (NT:25)
€ 181.00
27-2
2434138B12
ref: 27-2
GEAR,4TH DRIVEN(NT:25)
2434138B12
€ 181.00
28
2435138B20
ref: 28
GEAR,5TH DRIVEN(NT:23)
2435138B20
€ 127.00
29
0821120382
ref: 29
WASHER
0821120382
€ 3.00
30
0916022032
ref: 30
WASHER(22X32X3)
0916022032
€ 4.00
31
2462138B00
ref: 31
GEAR,OVER DRIVING DRIVE(NT:34)
€ 183.50
32
0926222029
ref: 32
BEARING(22X56X16)
€ 45.50
33
2474138401
ref: 33
RETAINER,CNTR SHAFT BEARING
€ 5.50
34
0212206123
ref: 34
02122-0612A
SCREW
0212206123
€ 3.00
35
0926220080
ref: 35
BEARING(20X52X15)
0926220080
€ 21.50
