CYLINDER

VL1500B INTRUDER 2004 (K4) USA (E03)

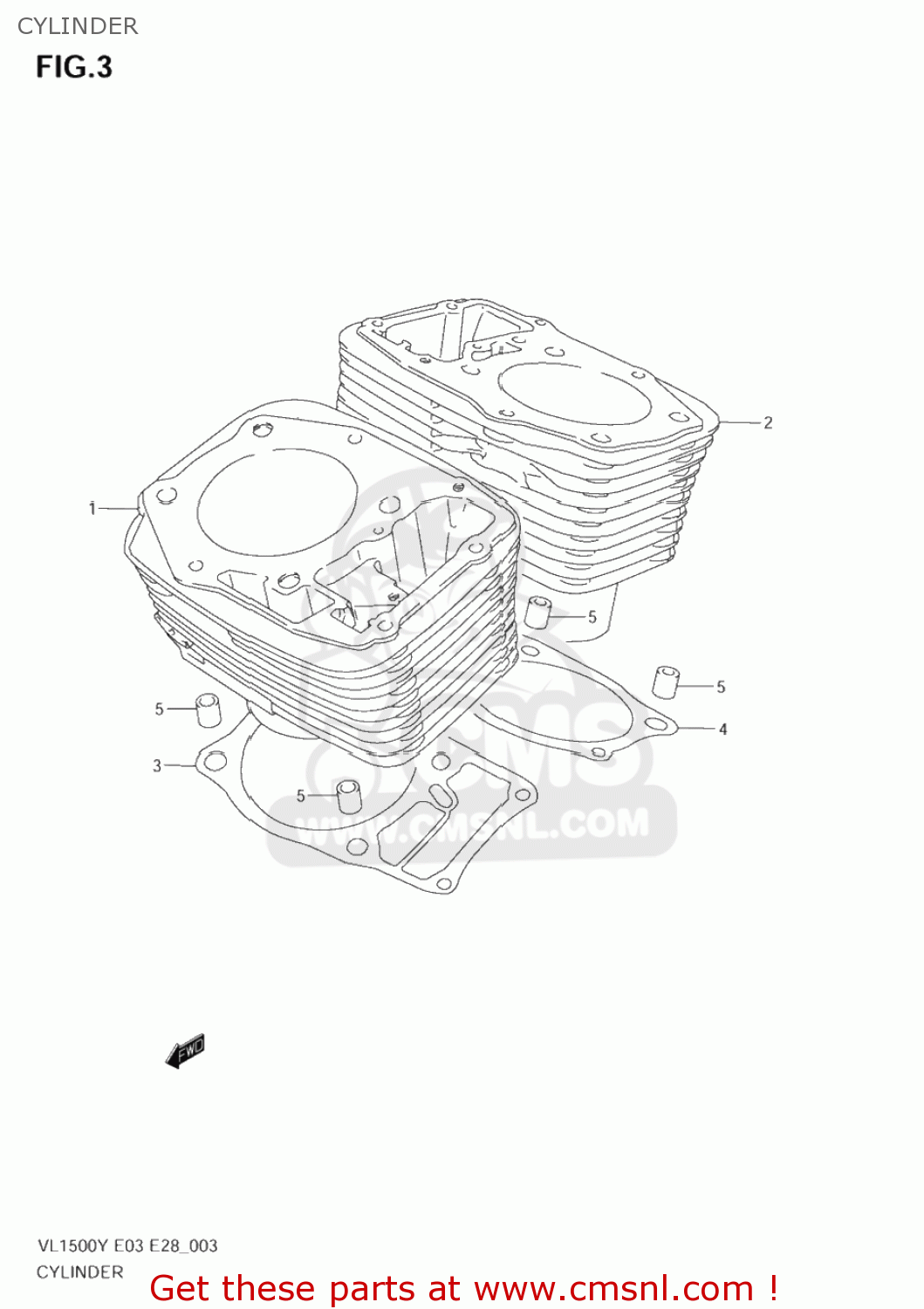

Cylinder diagram VL1500B INTRUDER 2004 (K4) USA (E03)

CYLINDER VL1500B INTRUDER 2004 (K4) USA (E03)
CYLINDER VL1500B INTRUDER 2004 (K4) USA (E03)
CYLINDER VL1500B INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1121110F100F0
ref: 1
CYLINDER,FR
€ 672.00
2
1122110F100F0
ref: 2
CYLINDER,RR
€ 736.00
3
1124110F00
ref: 3
GASKET,CYLINDER FR (NAS)
1124110F00
€ 14.00
4
1124210F00
ref: 4
GASKET,CYLINDER RR (NAS)
1124210F00
€ 14.00
5
0421113189
ref: 5
PIN
0421113189
€ 2.50
