FUEL INLET
VL1500B INTRUDER 2004 (K4) USA (E03)

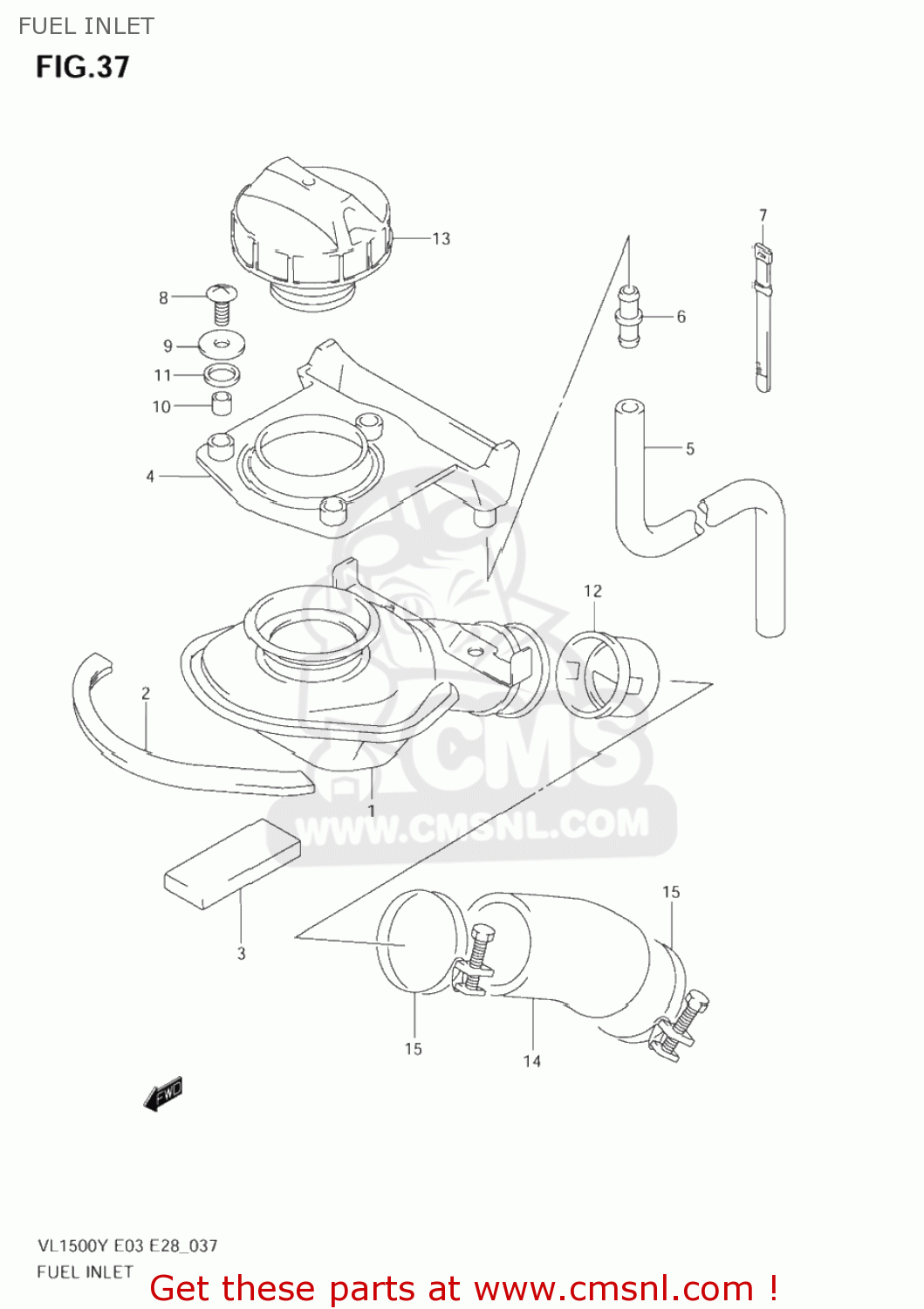

Fuel inlet diagram VL1500B INTRUDER 2004 (K4) USA (E03)
FUEL INLET VL1500B INTRUDER 2004 (K4) USA (E03)
×
prices are in EUR
ref
part #
description
quantity
1
4419010F00
ref: 1
INLET,FUEL TANK
€ 172.50
2
6824104X5000B
ref: 2
MOLDING
€ 23.00
3
1117945D00
ref: 3
CUSHION
€ 4.50
4
4426110F00
ref: 4
TRAY,FUEL TANK INLET
€ 23.00
5
093527010300B
ref: 5
HOSE(7X10.2X2000)
€ 17.50
6
0936708001
ref: 6
JOINT
€ 2.50
7
0940718402
ref: 7
CLAMP(L:165)
€ 2.50
8
0214205163
ref: 8
02142-0516A
SCREW
€ 2.50
9
0916005046
ref: 9
WASHER(5.5X20X1.4)
€ 2.00
10
0918005047
ref: 10
SPACER(5.5X8X7.5)
€ 2.50
11
4455910F00
ref: 11
CUSHION,FUEL TANK INLET UPR
€ 4.50
12
8928050F00
ref: 12
VALVE,FUEL TANK INLET
€ 17.00
13-1
4420010F00
ref: 13-1
44200-10F01
CAP ASSEMBLY,FUEL TANK FILLER
€ 69.00
13-2
4420010F01
ref: 13-2
CAP ASSY,FUEL TANK
€ 69.00
14
4442210F00
ref: 14
HOSE,FUEL TANK FILLER
€ 46.00
15
0940052312
ref: 15
CLAMP
€ 3.00
