SIDE COVER (MODEL W/X)

VL1500B INTRUDER 2004 (K4) USA (E03)

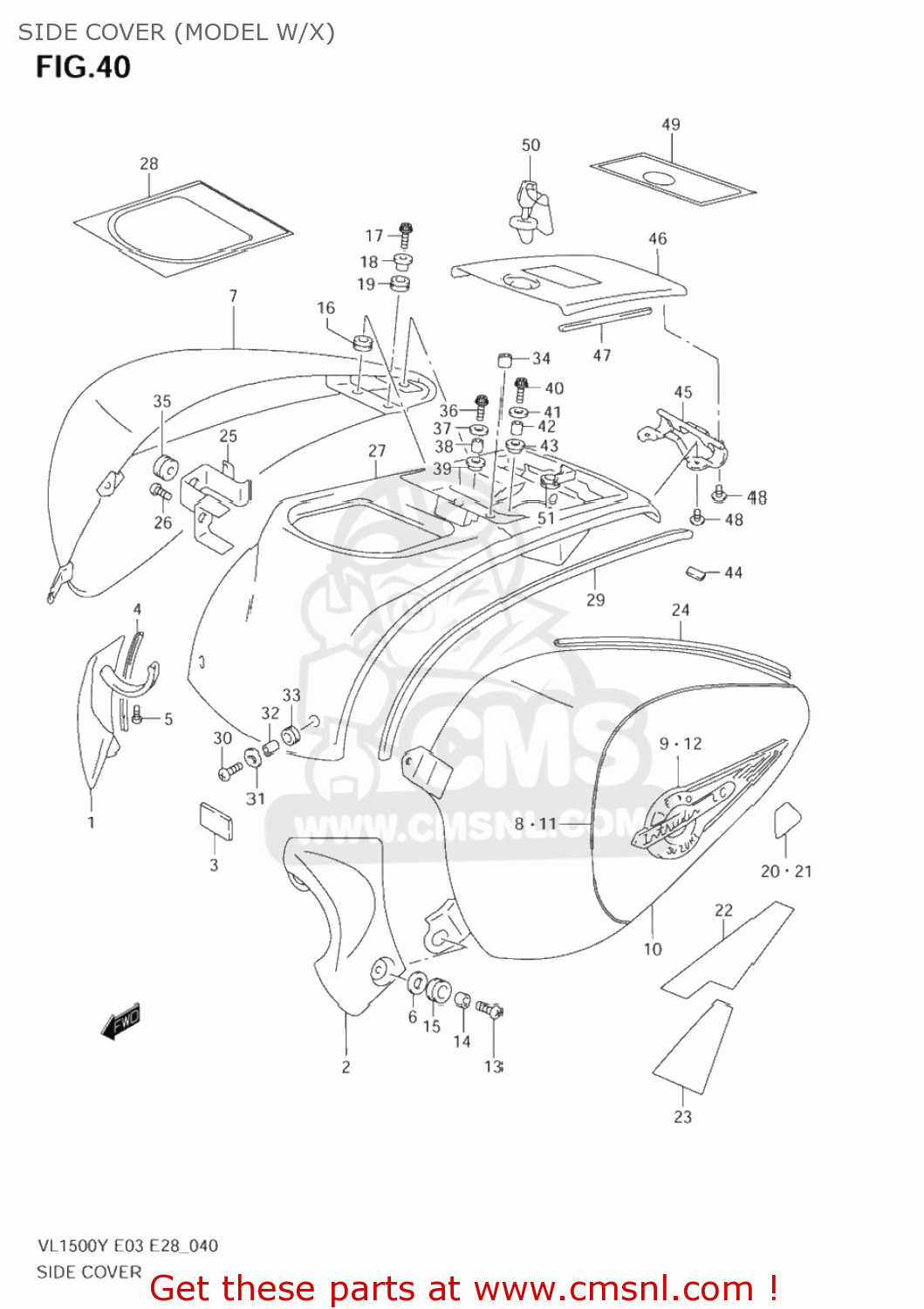

Side cover (model w/x) diagram VL1500B INTRUDER 2004 (K4) USA (E03)

SIDE COVER (MODEL W/X) VL1500B INTRUDER 2004 (K4) USA (E03)
SIDE COVER (MODEL W/X) VL1500B INTRUDER 2004 (K4) USA (E03)
SIDE COVER (MODEL W/X) VL1500B INTRUDER 2004 (K4) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4751010F00
ref: 1
47510-10F01
COVER COMP,FRAME HEAD
€ 120.00
2-1
4752010F00
ref: 2-1
47520-10F02
COVER COMP,FRAME HEAD
€ 120.00
2-2
4752010F01
ref: 2-2
47520-10F02
COVER,FRAME HEAD,LEFT
4752010F01
€ 120.00
3
4782910F00
ref: 3
44612-13600
CUSHION,METER COVER RE
€ 3.00
4
4751410F00
ref: 4
MOLDING,FRAME HEAD COVER
4751410F00
€ 5.50
5
0913906028
ref: 5
SCREW(6X20)
0913906028
€ 3.50
6
0832201063
ref: 6
08322-0106B
WASHER
0832201063
€ 2.00
7-1
4780010F00E6M
ref: 7-1
COVER ASSY,SIDE UPR,R
€ 473.50
7-2
4780010F00K7D
ref: 7-2
COVER ASSY,SIDE UPR,R
4780010F00K7D
€ 489.50
7-3
4780010F00K7E
ref: 7-3
COVER ASSY,SIDE UPR,R
4780010F00K7E
€ 486.50
7-4
4780010F00M4P
ref: 7-4
COVER ASSY,SIDE UPR,R
€ 486.50
7-5
4780010F00M4R
ref: 7-5
COVER ASSY,SIDE UPR,R
€ 486.50
8-1
6813510F00K7W
ref: 8-1
TAPE,SIDE COVER UPR,R
€ 62.00
8-2
6813510F00K7Y
ref: 8-2
TAPE,SIDE COVER,UPPER
€ 61.50
8-3
6813510F00K8A
ref: 8-3
TAPE,SIDE COVER UPR,R
€ 65.00
8-4
6813510F00M5M
ref: 8-4
TAPE,COVER SIDE,UPPER
€ 76.50
8-5
6813510F00M5N
ref: 8-5
TAPE,COVER SIDE UPR,R
€ 65.00
9
6811110F00
ref: 9
EMBLEM,TANK COVER,R
6811110F00
€ 61.00
10-1
4790010F00E6M
ref: 10-1
COVER ASSY,SIDE UPR,L
€ 486.50
10-2
4790010F00K7D
ref: 10-2
COVER ASSEMBLY,SIDE UPPER
€ 534.00
10-3
4790010F00K7E
ref: 10-3
COVER ASSY,SIDE UPR,L
4790010F00K7E
€ 486.50
10-4
4790010F00M4P
ref: 10-4
COVER ASSY,SIDE UPR,L
€ 559.00
10-5
4790010F00M4R
ref: 10-5
COVER ASSY,SIDE UPR,L
€ 486.50
11-1
6814510F00K7W
ref: 11-1
TAPE,SIDE COVER,UPPER
€ 57.50
11-2
6814510F00K7Y
ref: 11-2
TAPE,SIDE COVER,UPPER
€ 65.50
11-3
6814510F00K8A
ref: 11-3
TAPE,SIDE COVER UPR,L
6814510F00K8A
€ 65.00
11-4
6814510F00M5M
ref: 11-4
TAPE,COVER SIDE,UPPER
€ 71.00
11-5
6814510F00M5N
ref: 11-5
TAPE,COVER SIDE UPR,L
€ 65.00
12
6812110F00
ref: 12
EMBLEM,TANK COVER,L
6812110F00
€ 61.00
13
0913906030
ref: 13
SCREW(6X16)
0913906030
€ 3.50
14
0918006260
ref: 14
SPACER(6.5X9X7.2)
0918006260
€ 3.50
15
0932008021
ref: 15
CUSHION
0932008021
€ 4.00
16
4782210F00
ref: 16
CUSHION,SIDE UP METER & FRAME
4782210F00
€ 7.50
17
0712006203
ref: 17
07120-0620B
BOLT
0712006203
€ 3.50
18
4782710F00
ref: 18
WASHER,SIDE UPR COVER
4782710F00
€ 5.00
19
4782610F00
ref: 19
CUSHION,SIDE UPR COVER
4782610F00
€ 7.50
20
4783810F00
ref: 20
TAPE,SIDE COVER UPR,R
€ 7.50
21
4784810F00
ref: 21
TAPE,SIDE COVER UPR,L
€ 7.50
22
4783510F00
ref: 22
CUSHION,SIDE UPR COVER,R
€ 45.00
23
4783610F00
ref: 23
CUSHION,SIDE UPR COVER,R
€ 18.50
24
4783710F00
ref: 24
47837-10FA0
MOLDING,SIDE UPPER COVER
€ 9.50
25
4785010F00
ref: 25
BRACKET,SIDE UPPER COVER
€ 9.00
26
0155006163
ref: 26
01550-0616A
BOLT
0155006163
€ 2.50
27
4782110F00
ref: 27
COVER,METER & FUEL INLET
4782110F00
€ 693.00
28-1
6889710F00
ref: 28-1
TAPE,METER COVER
6889710F00
€ 47.50
28-2
6889710F10
ref: 28-2
EMBLEM,METER COVER
6889710F10
€ 36.50
29
4782410F00
ref: 29
MOLDING,METER COVER
4782410F00
€ 9.00
30
0913906030
ref: 30
SCREW(6X16)
0913906030
€ 3.50
31
0916006036
ref: 31
WASHER(6.5X18X1.5)
0916006036
€ 1.50
32
0918006256
ref: 32
SPACER(6.5X9X5.7)
0918006256
€ 2.00
33
0932008051
ref: 33
09320-08066
CUSHION
0932008051
€ 7.50
34
0932106013
ref: 34
CUSHION
0932106013
€ 2.50
35
0932110007
ref: 35
CUSHION
0932110007
€ 4.50
36
0712006253
ref: 36
07120-0625A
BOLT,OIL PAN
0712006253
€ 2.50
37
0916006084
ref: 37
WASHER(6.5X18X1.6)
0916006084
€ 2.00
38
0918006265
ref: 38
SPACER(6.5X9X11)
0918006265
€ 4.50
39
4782510F00
ref: 39
CUSHION,METER COVER
4782510F00
€ 7.50
40
0712006163
ref: 40
07120-0616B
BOLT MAGNETO S
0712006163
€ 2.50
41
0916006084
ref: 41
WASHER(6.5X18X1.6)
0916006084
€ 2.00
42
0918006256
ref: 42
SPACER(6.5X9X5.7)
0918006256
€ 2.00
43
0932008051
ref: 43
09320-08066
CUSHION
0932008051
€ 7.50
44
4782910F00
ref: 44
44612-13600
CUSHION,METER COVER RE
€ 3.00
45
4738010F00
ref: 45
47380-10F01
HINGE COMP,FUEL LID
€ 16.00
46
4781110F00
ref: 46
LID,FUEL INLET
4781110F00
€ 174.00
47
4781210F00
ref: 47
CUSHION,FUEL LID
4781210F00
€ 4.50
48
0214206123
ref: 48
02142-0612A
SCREW 6X12
0214206123
€ 2.00
49-1
6889810F00
ref: 49-1
TAPE,FUEL LID
6889810F00
€ 24.50
49-2
6889810F10
ref: 49-2
EMBLEM,FUEL LID
€ 31.50
50
9570007860
ref: 50
LOCK SET,COVER
9570007860
€ 76.00
51
4782810F00
ref: 51
CUSHION,RR,L
4782810F00
€ 15.00
