CRANKCASE

VL1500T BOULEVARD C90 2005 (K5) USA (E03)

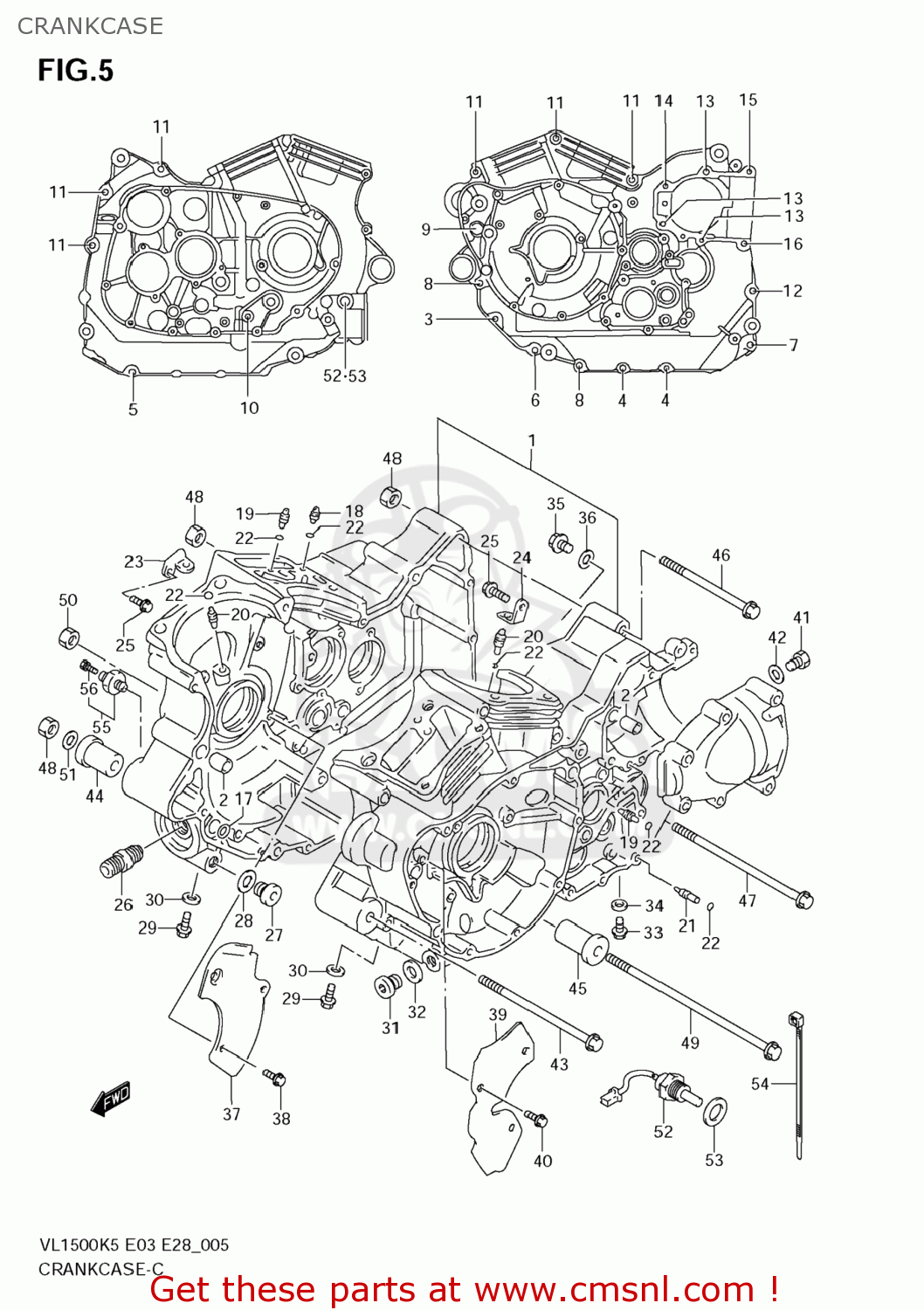

Crankcase diagram VL1500T BOULEVARD C90 2005 (K5) USA (E03)

CRANKCASE VL1500T BOULEVARD C90 2005 (K5) USA (E03)
CRANKCASE VL1500T BOULEVARD C90 2005 (K5) USA (E03)
CRANKCASE VL1500T BOULEVARD C90 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
1130010872
ref: 1
CRANKCASE SET
€ 2,774.50
2
0920611007
ref: 2
PIN(8.4X11X20)
0920611007
€ 1.50
3
015500655B
ref: 3
BOLT
015500655B
€ 2.00
4
015500665B
ref: 4
BOLT
€ 3.00
5
015500685B
ref: 5
BOLT
015500685B
€ 2.50
6
015500855B
ref: 6
BOLT
015500855B
€ 3.00
7
015500865B
ref: 7
BOLT
015500865B
€ 3.00
8
015500870B
ref: 8
BOLT
015500870B
€ 2.50
9
015500890B
ref: 9
BOLT
015500890B
€ 3.50
10
0910308098
ref: 10
BOLT(8X115)
0910308098
€ 3.00
11
0910308164
ref: 11
BOLT(8X95)
0910308164
€ 3.50
12
015500880B
ref: 12
BOLT
015500880B
€ 4.00
13
015500840B
ref: 13
BOLT
015500840B
€ 3.50
14
015500850B
ref: 14
BOLT
015500850B
€ 2.50
15
015500855B
ref: 15
BOLT
015500855B
€ 3.00
16
015500865B
ref: 16
BOLT
015500865B
€ 3.00
17
0928012009
ref: 17
O RING(D:1.9,ID:12.6)
0928012009
€ 2.50
18
0949344002
ref: 18
JET(2.2)
€ 12.00
19
0949328010
ref: 19
JET,AIR(14)
0949328010
€ 10.50
20
0949380009
ref: 20
JET,PISTON COOLING(0.8)
€ 14.00
21
0949324011
ref: 21
JET,MISSION OIL(1.4)
€ 9.00
22
0928004004
ref: 22
O RING(D:1.2,ID:4)
0928004004
€ 2.00
23
1643838B00
ref: 23
PLATE,PISTON JET FR
€ 1.50
24
1643938B00
ref: 24
PLATE,PISTON JET RR
€ 2.00
25
015500612B
ref: 25
BOLT
015500612B
€ 2.50
26
1659106B00
ref: 26
16591-06B01
UNION,OIL STAND
1659106B00
€ 6.00
27
0924816012
ref: 27
PLUG,16X8
0924816012
€ 4.50
28
0916816002
ref: 28
GASKET(16X22X2) (NAS)
0916816002
€ 2.00
29
015500812B
ref: 29
BOLT
015500812B
€ 3.50
30
0916808016
ref: 30
GASKET(8.2X14X1) (NAS)
0916808016
€ 1.00
31
0924814005
ref: 31
PLUG,14X12
0924814005
€ 5.00
32
0916814002
ref: 32
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
33
015500610B
ref: 33
BOLT
015500610B
€ 2.50
34
0916806023
ref: 34
GASKET(5.8X13X1.2) (NAS)
0916806023
€ 2.00
35
0924712006
ref: 35
PLUG(12X10)
0924712006
€ 2.50
36
0916812002
ref: 36
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
37
1152138B01
ref: 37
PLATE,OIL SEPARATOR
€ 4.00
38
0912506110
ref: 38
BOLT(6X12)
0912506110
€ 2.50
39
1152210F00
ref: 39
PLATE,OIL SEPARATOR FR
€ 4.00
40
015470612B
ref: 40
BOLT
015470612B
€ 2.00
41
0924712106
ref: 41
PLUG,12X20
0924712106
€ 2.50
42
0916812002
ref: 42
GASKET(12.1X16.2X3.7) (NAS)
0916812002
€ 2.00
43
0910310145
ref: 43
BOLT(10X205)
0910310145
€ 13.00
44
1162110F10
ref: 44
SPACER,ENG MTG
€ 16.50
45
1161020C00
ref: 45
SPACER,ENGINE MOUNT(L27)
1161020C00
€ 10.00
46
0910310119
ref: 46
BOLT(10X140)
0910310119
€ 7.50
47
0910310278
ref: 47
BOLT(10X160)
0910310278
€ 9.50
48
083193110B
ref: 48
NUT
083193110B
€ 3.00
49
0910310226
ref: 49
BOLT(10X265)
0910310226
€ 12.00
50
0915910047
ref: 50
NUT
0915910047
€ 7.50
51
0916010502
ref: 51
WASHER (10.5X20X3.2)
€ 2.50
51
0916010502
ref: 51
WASHER (10.5X20X3.2)
€ 2.50
52
1365042F10
ref: 52
SENSOR,OIL TEMP
1365042F10
€ 108.00
53
0916814015
ref: 53
GASKET(14X20X1.5) (NAS)
0916814015
€ 1.50
54-1
0940714407
ref: 54-1
CLAMP(L:145)
0940714407
€ 4.00
54-2
0940710404
ref: 54-2
CLAMP(L:100)
0940710404
€ 4.00
55
3782033D10
ref: 55
SWITCH ASSY,OIL PRESSURE
3782033D10
€ 29.00
56
3782233D00
ref: 56
BOLT,OIL PRESSURE SWITCH
3782233D00
€ 3.00
