FRONT FENDER (MODEL K5/K6)

VL1500T BOULEVARD C90 2005 (K5) USA (E03)

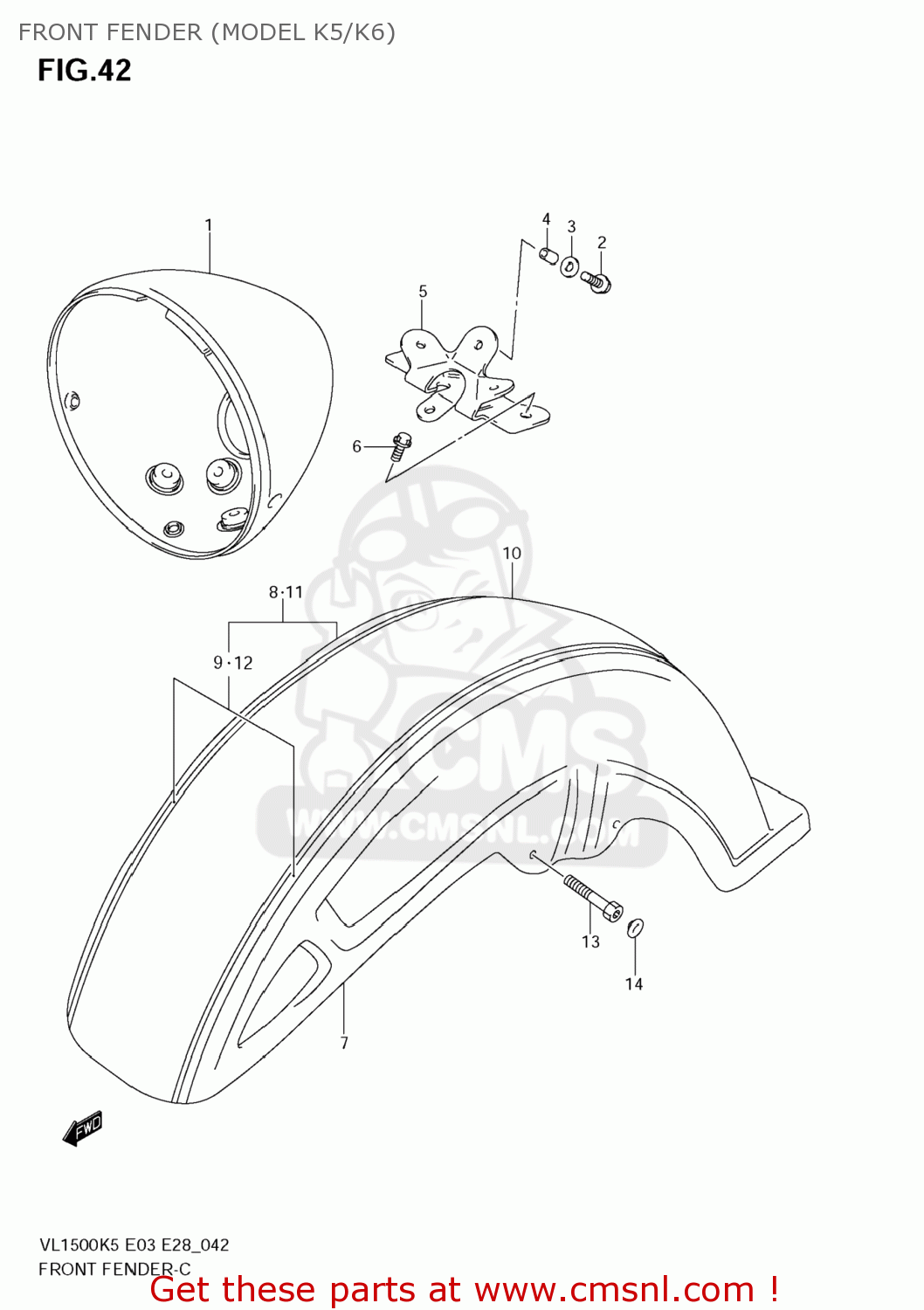

Front fender (model k5/k6) diagram VL1500T BOULEVARD C90 2005 (K5) USA (E03)

prices are in EUR

ref

part #

description

quantity

5180010FA0
ref: 1

HOUSING ASSY,HEADLAMP

€ 225.00

0150006253
ref: 2
01500-0625A

BOLT

€ 2.50

0916006077
ref: 3

WASHER(6.5X20X1.2)

€ 2.00

0918006307
ref: 4

SPACER(6.5X9X10)

€ 3.00

5185010FA0
ref: 5

BRACKET,HEADLAMP HOUSING

€ 34.00

0155006163
ref: 6
01550-0616A

BOLT

€ 2.50

5311010F30YAY
ref: 7

FENDER,FR

€ 732.50

8-1

5310010FA0NY3
ref: 8-1

FENDER ASSY,FR

€ 732.50

8-2

5310010FA0AVU
ref: 8-2

FENDER ASSY,FR

€ 732.50

9-1

6815010FA0BFB
ref: 9-1

TAPE SET,FR FENDER

€ 97.00

9-2

6815010FA0BFC
ref: 9-2

TAPE SET,FR FENDER

€ 74.50

10-1

5311010F30YAY
ref: 10-1

FENDER,FR

€ 732.50

10-2

5311010F30YHF
ref: 10-2

FENDER,FR

€ 0.00

11-1

5310010FB0CFG
ref: 11-1

FENDER ASSY,FR

€ 732.50

11-2

5310010FB0CFH
ref: 11-2

FENDER ASSY,FR

€ 732.50

12-1

6815010F30CFG
ref: 12-1

TAPE SET,FR FENDER

€ 149.00

12-2

6815010F30CLY
ref: 12-2

TAPE SET,FR FENDER

€ 81.50

0713008407
ref: 13

BOLT

€ 3.50

0925006011
ref: 14

CAP(OD:11)

€ 2.50
