Buy Suzuki VL Parts Online


FUEL TANK

VL1500T BOULEVARD C90 2005 (K5) USA (E03)

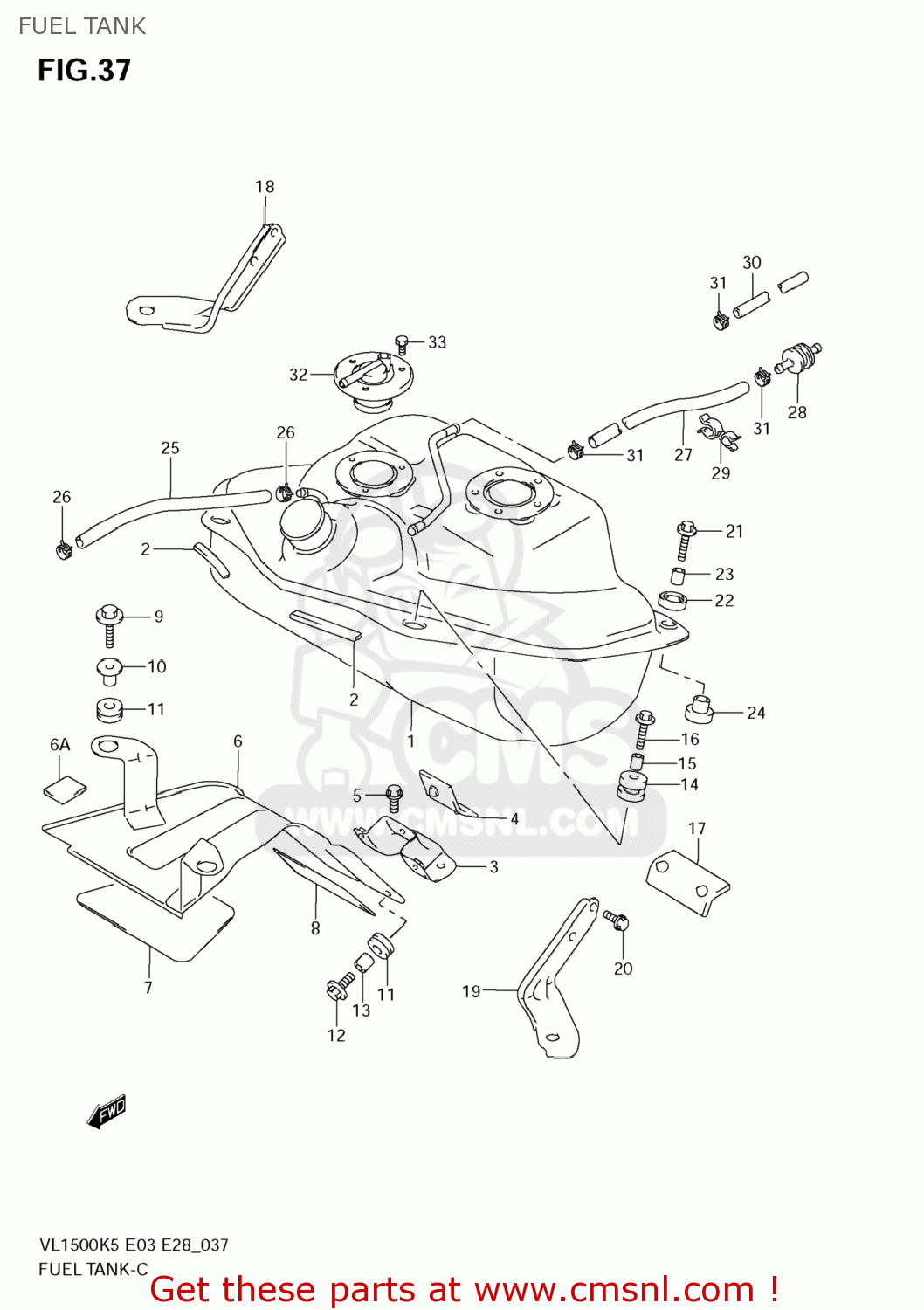

Fuel tank diagram VL1500T BOULEVARD C90 2005 (K5) USA (E03)

FUEL TANK VL1500T BOULEVARD C90 2005 (K5) USA (E03)
FUEL TANK VL1500T BOULEVARD C90 2005 (K5) USA (E03)
FUEL TANK VL1500T BOULEVARD C90 2005 (K5) USA (E03)
prices are in EUR
ref
part #
description
quantity
1
4411010FA0
ref: 1
TANK,FUEL
€ 513.00
2
6824104X50300
ref: 2
MOLDING
6824104X50300
€ 6.00
3
4413010F00
ref: 3
BRACKET,FUEL TANK FR
€ 9.50
4-1
4450010830
ref: 4-1
CUSHION SET,FUEL TANK
€ 8.50
4-2
4451110F10
ref: 4-2
CUSHION,FUEL TANK FR
€ 8.50
5
015500610B
ref: 5
BOLT
015500610B
€ 2.50
6
4427010F02
ref: 6
COVER,FUEL TANK FR
€ 48.50
6A
6154494500
ref: 6A
PAD
6154494500
€ 2.00
7
4426710F00
ref: 7
SHIELD,FR COVER UPR
€ 8.50
8
4426810F00
ref: 8
SHIELD,FR COVER LWR
€ 7.00
9
0911606171
ref: 9
BOLT(6X30)
0911606171
€ 2.50
10
0916906070
ref: 10
WASHER
€ 3.50
11
0932008001
ref: 11
CUSHION
0932008001
€ 3.50
12
0911606115
ref: 12
BOLT(6X20)
0911606115
€ 2.00
13
0918006248
ref: 13
SPACER(6.1X8X9.5)
0918006248
€ 2.50
14
4451210F00
ref: 14
CUSHION,FUEL TANK FR
4451210F00
€ 19.00
15
0918006351
ref: 15
SPACER(6.5X9.1X16.5)
€ 3.00
16-1
0911606172
ref: 16-1
BOLT(6X30)
0911606172
€ 2.50
16-2
0911606214
ref: 16-2
BOLT(6X30)
0911606214
€ 2.00
17
4454110F00
ref: 17
CUSHION,FUEL TANK RR CTR
€ 7.50
18
4415010F00
ref: 18
BRACKET,FUEL TANK RR,R
€ 17.50
19
4416010F00
ref: 19
BRACKET,FUEL TANK RR,L
€ 19.50
20
015500610B
ref: 20
BOLT
015500610B
€ 2.50
21-1
0911606172
ref: 21-1
BOLT(6X30)
0911606172
€ 2.50
21-2
0911606214
ref: 21-2
BOLT(6X30)
0911606214
€ 2.00
22
0932014022
ref: 22
CUSHION
0932014022
€ 4.00
23
0918006271
ref: 23
SPACER(6.5X9X18)
0918006271
€ 2.00
24
0932010020
ref: 24
CUSHION
0932010020
€ 4.00
25
0935511165600
ref: 25
HOSE(11X16X600)
0935511165600
€ 9.00
26
0940115404
ref: 26
CLIP
0940115404
€ 2.50
27-1
0935554116600
ref: 27-1
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
27-2
4443410FB0
ref: 27-2
HOSE,BREATHER TANK & VALVE
€ 0.00
28
8545175100
ref: 28
VALVE,2WAY CHECK
8545175100
€ 27.00
29
0940800140
ref: 29
CLAMP
€ 6.00
30-1
0935554116600
ref: 30-1
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
30-1
0935554116600
ref: 30-1
HOSE(5.4X11.4X600)
0935554116600
€ 12.00
30-2
4443510FB0
ref: 30-2
HOSE,BREATHER VALVE & CANISTER
€ 0.00
31
0940110409
ref: 31
CLIP
0940110409
€ 2.50
32-1
8948565D00
ref: 32-1
VALVE,FUEL CUT
€ 41.00
32-2
8948052DA0
ref: 32-2
VALVE,FUEL CUT
8948052DA0
€ 38.00
33
0911705003
ref: 33
01570-0510B
BOLT 5X10
€ 2.00
up
