FRAME (MODEL K9)

VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

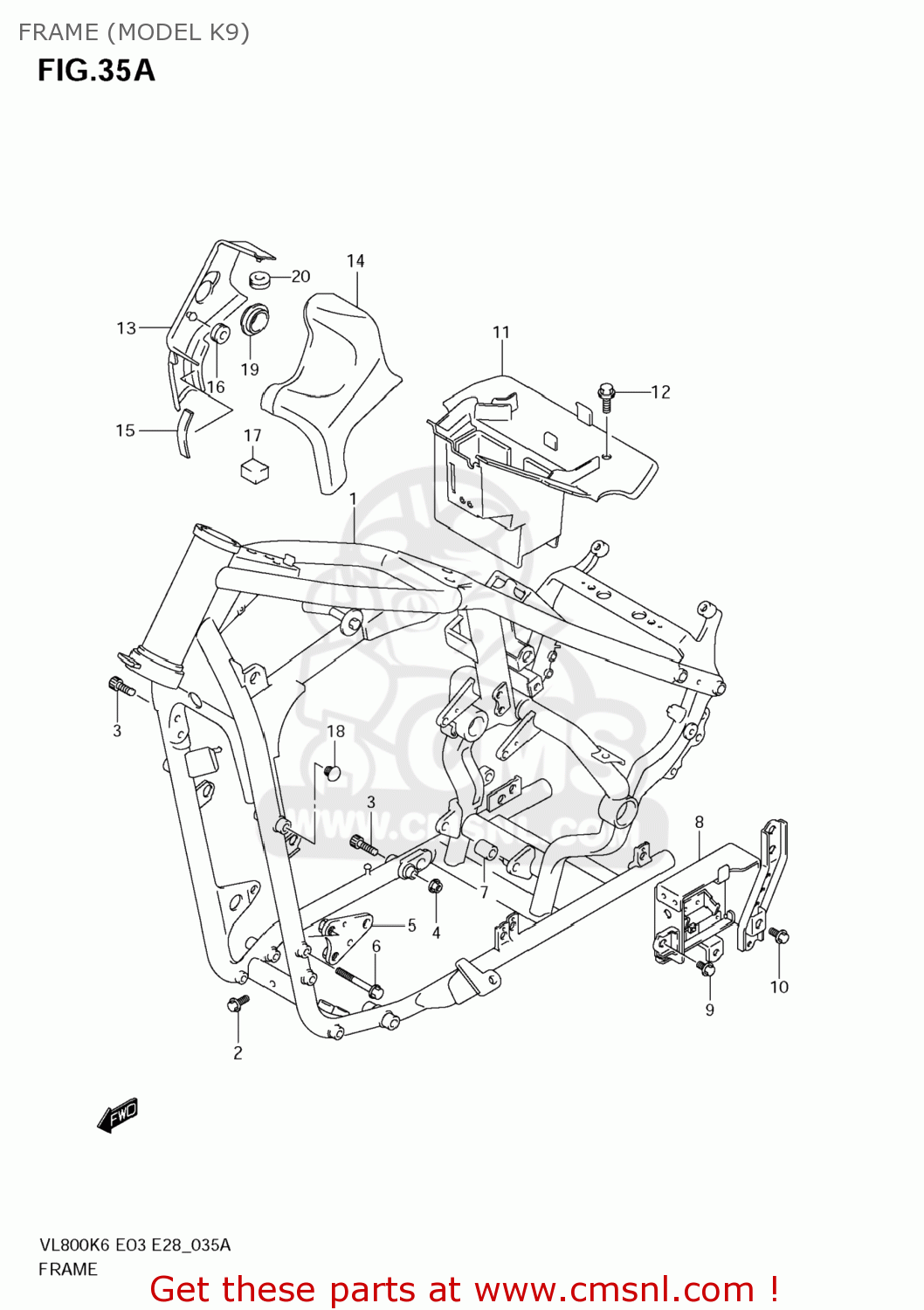

Frame (model k9) diagram VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

FRAME (MODEL K9) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

FRAME (MODEL K9) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4110041F60019
ref: 1

FRAME(BLACK)

€ 2,239.00

2

015500816B
ref: 2

BOLT

€ 3.00

3

071301035B
ref: 3

BOLT

€ 3.50

4

083193110B
ref: 4

NUT

€ 3.00

5

4192041F00
ref: 5

PLATE,ENGINE MOUNT NO.1,L

€ 16.50

6

0911208013
ref: 6

BOLT(8X65)

€ 3.50

7

4194141F00
ref: 7

SPACER,ENG MTG LR

€ 8.00

8

4154041F30
ref: 8

HOLDER,ELECTRIC PARTS

€ 42.00

9

015470612A
ref: 9

BOLT

€ 2.00

10

015470816A
ref: 10

BOLT, HOLDER

€ 0.00

11

4741041F01
ref: 11

HOLDER,ELECTRI

€ 57.00

12

0911306001
ref: 12

BOLT(6X16)

€ 3.00

13

4735041F10019
ref: 13

COVER,FRAME HEAD,R(BLACK)

€ 59.50

14

4736041F10019
ref: 14
47360-41F12-019

COVER COMP,FRA

€ 69.00

15

5314540A00
ref: 15

CUSHION,FR FENDER

€ 1.50

16

0932008018
ref: 16

CUSHION

€ 4.00

17

5314605G00
ref: 17

CUSHION,FR FENDER SIDE

€ 3.00

18

0925009001
ref: 18

CAP(OD:14)

€ 1.00

19

4735541F00
ref: 19
47355-41F01

CAP

€ 3.00

20

0932009501
ref: 20

CUSHION

€ 2.00
