REAR WHEEL (VL800CK6/CK7/CK8/CK9)

VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

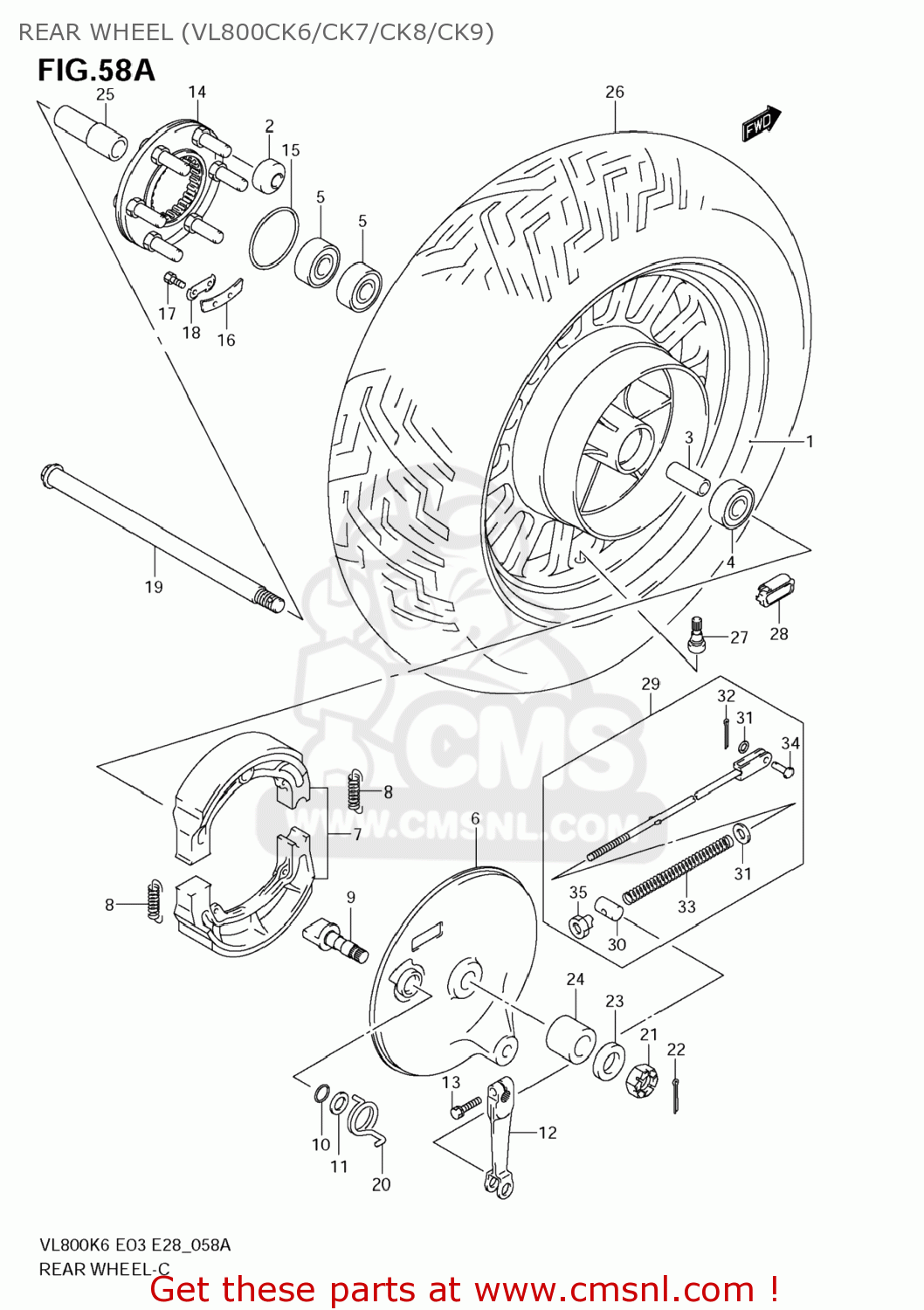

Rear wheel (vl800ck6/ck7/ck8/ck9) diagram VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

REAR WHEEL (VL800CK6/CK7/CK8/CK9) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

REAR WHEEL (VL800CK6/CK7/CK8/CK9) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

6415041F0020H
ref: 1

WHEEL,RR(15M/CXMT4.00)

€ 1,363.50

2

0931912019
ref: 2

BUSH

€ 10.50

3

0918017112
ref: 3

SPACER(17.3X25X99)

€ 20.50

4

0812363037
ref: 4

BEARING

€ 16.00

5

0814363037
ref: 5

BEARING

€ 23.00

6

6421038A60
ref: 6

PANEEL.REMANKER

€ 152.00

7

6440038820
ref: 7

SHOE SET,BRAKE (NAS)

€ 61.00

8

5542030000
ref: 8

SPRING,BRAKE SHOE

€ 3.50

9

6444138A20
ref: 9

CAM,RR BRAKE

€ 21.50

10

0928015003
ref: 10

O RING(D:2.4,ID:14.8)

€ 2.00

11

0916015048
ref: 11

WASHER(15.5X24X1.6)

€ 2.50

12

6445138A01
ref: 12

LEVER,RR BRAKE CAM

€ 33.00

13

0157006257
ref: 13

BOLT

€ 2.50

14

6468045113
ref: 14

JOINT ASSY,RR HUB DRIVEN

€ 181.50

15

0928065003
ref: 15

O RING(D:2.1,ID:65)

€ 2.50

16

6467745110
ref: 16

WASHER,THRUST(T:1.6)

€ 2.50

17

0911906049
ref: 17

BOLT(6X16)

€ 1.50

18

0916906030
ref: 18

WASHER

€ 2.00

19-1

6471119F10
ref: 19-1

AXLE,RR

€ 71.00

19-2

6471119F00
ref: 19-2

AXLE,RR

€ 51.00

20

0944833006
ref: 20

SPRING

€ 11.00

21-1

0914116007
ref: 21-1

NUT

€ 8.00

21-2

083192116A
ref: 21-2

NUT

€ 5.00

22

041114030A
ref: 22

PIN

€ 1.50

23

0916017050
ref: 23

WASHER(17X30X3.2)

€ 2.00

24

6474141F00
ref: 24

SPACER,RR AXLE,R

€ 9.00

25

6477234201
ref: 25

SPACER,RR AXLE,L

€ 14.50

26

6511041F20
ref: 26

TIRE,RR(170/80 15M/C 77H)

€ 189.50

27

4313024A00
ref: 27

VALVE ASSY,WHEEL RIM(TR412)

€ 7.00

28-1

4322273H10
ref: 28-1

WEIGHT,WHEEL BALANCE 10G

€ 4.00

28-2

4322473H10
ref: 28-2

WEIGHT,WHEEL BALANCE 20G

€ 5.00

28-3

4322673H10
ref: 28-3

WEIGHT,WHEEL BALANCE 30G

€ 6.00

29

4330041F00
ref: 29

ROD ASSY,RR BRAKE

€ 22.00

30

0920913018
ref: 30

PIN(13X18)

€ 3.50

31

083220106B
ref: 31

WASHER

€ 2.00

32

041112015A
ref: 32

PIN

€ 1.50

33

0944009004
ref: 33

SPRING

€ 2.00

34

0920006013
ref: 34

PIN(L:13.5)

€ 2.00

35

0915006010
ref: 35

NUT

€ 3.50
