FRONT FENDER (VL800K6/TK6/CK6/K7/TK7)

VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

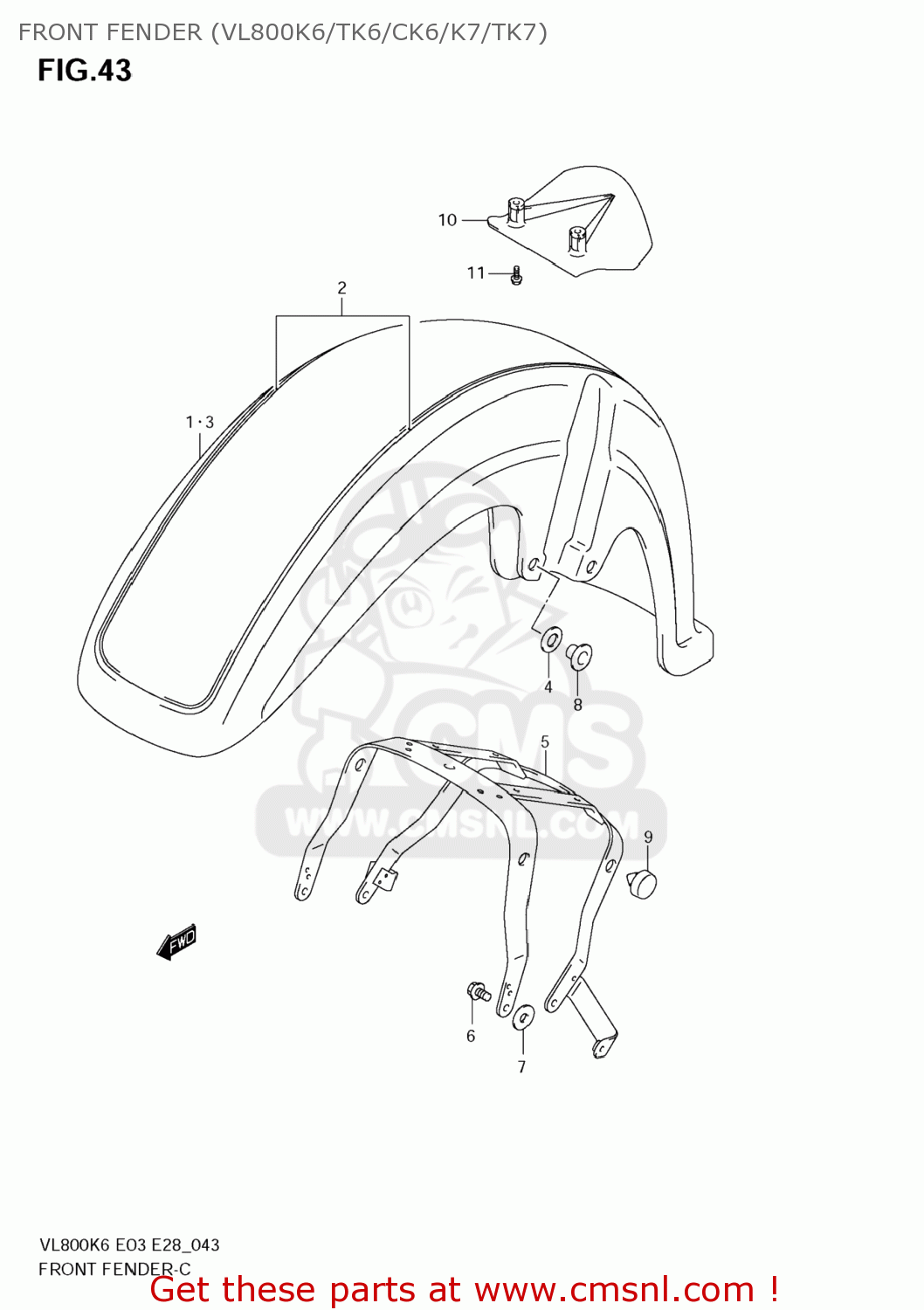

Front fender (vl800k6/tk6/ck6/k7/tk7) diagram VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT FENDER (VL800K6/TK6/CK6/K7/TK7) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

FRONT FENDER (VL800K6/TK6/CK6/K7/TK7) VL800 BOULEVARD C50 2009 (K9) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

5311041F30CFG
ref: 1-1

FENDER,FR

€ 476.00

1-2

5311041F30CFH
ref: 1-2

FENDER,FR

€ 574.50

1-3

5311041FA0CZW
ref: 1-3

FENDER,FR

€ 618.00

1-4

5311041FA0CZZ
ref: 1-4

FENDER,FR

€ 414.50

2-1

6815041F10CGY
ref: 2-1

TAPE SET,FR FENDER

€ 109.00

2-2

6815041F10CGZ
ref: 2-2

TAPE SET,FR FENDER

€ 162.00

2-3

6815041F10DNU
ref: 2-3

TAPE SET,FR FENDER

€ 129.50

2-4

6815041F10DNT
ref: 2-4

TAPE SET,FR FENDER

€ 129.50

3-1

5311141F00YAY
ref: 3-1

FENDER,FR

€ 325.50

3-2

5311141F00YHF
ref: 3-2

FENDER,FR

€ 265.00

3-3

5311041F80YAY
ref: 3-3

FENDER,FR

€ 269.50

3-4

5311041F70YC3
ref: 3-4

FENDER,FR

€ 0.00

4

5312141FA0
ref: 4

CUSHION,FR FENDER

€ 2.50

5

5312041F12
ref: 5

BRACE,FR FENDER

€ 75.00

6

0155006203
ref: 6
01550-0620A

BOLT

€ 2.50

7

5327641F00
ref: 7

WASHER,FR FENDER

€ 6.00

8

5327641F10
ref: 8

WASHER,FR FENDER

€ 4.00

9

0932110007
ref: 9

CUSHION

€ 4.50

10

5318141F00
ref: 10

WING,FR

€ 7.00

11

0911306001
ref: 11

BOLT(6X16)

€ 3.00
