FRAME

VL800 VOLUSIA 2001 (K1) USA (E03)

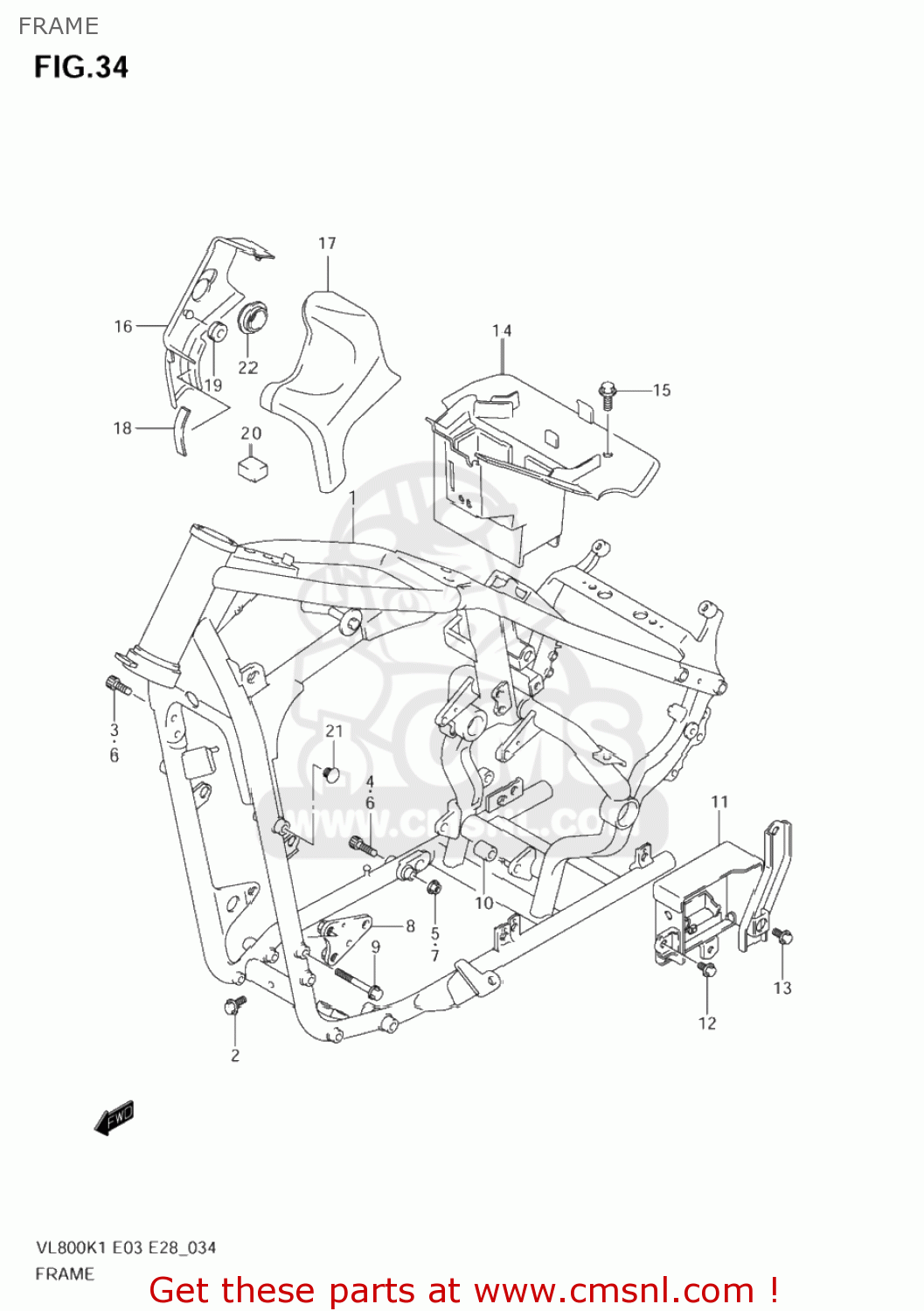

Frame diagram VL800 VOLUSIA 2001 (K1) USA (E03)

FRAME VL800 VOLUSIA 2001 (K1) USA (E03)

FRAME VL800 VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

1-1

4110041F00019
ref: 1-1
41100-41F22-019

FRAME (BLACK)

€ 1,974.00

1-2

4110041F10019
ref: 1-2
41100-41F11-019

FRAME GSX1400

€ 2,546.50

2

0155008163
ref: 2
01550-0816A

BOLT

€ 3.00

3

0713010253
ref: 3
07130-1025B

BOLT

€ 3.50

4

0713010353
ref: 4
07130-1035B

BOLT

€ 3.50

5

0831931103
ref: 5
08319-3110A

NUT

€ 3.00

6

0713010353
ref: 6
07130-1035B

BOLT

€ 3.50

7

0831931103
ref: 7
08319-3110A

NUT

€ 3.00

8

4192041F00
ref: 8

PLATE,ENGINE MOUNT NO.1,L

€ 16.50

9-1

0158008653
ref: 9-1

BOLT

€ 3.00

9-2

0911208013
ref: 9-2

BOLT(8X65)

€ 3.50

10

4194141F00
ref: 10

SPACER,ENG MTG LR

€ 8.00

11-1

4154041F00
ref: 11-1

HOLDER,ELECTRIC PARTS

€ 41.00

11-2

4154041F10
ref: 11-2

HOLDER COMP,EL

€ 42.00

12

0155006123
ref: 12
01550-0612A

BOLT

€ 2.50

13

0155008163
ref: 13
01550-0816A

BOLT

€ 3.00

14

4741041F00
ref: 14
47410-41F01

HOLDER COMP,EL

€ 57.00

15

0911306001
ref: 15

BOLT(6X16)

€ 3.00

16

4735141F00019
ref: 16
47351-41F01-019

COVER,FRAME HEAD,R(BLACK)

€ 49.00

17

4736141F00019
ref: 17
47361-41F02-019

COVER,FRAME HE

€ 49.00

18

5314540A00
ref: 18

CUSHION,FR FENDER

€ 1.50

19

0932008018
ref: 19

CUSHION

€ 4.00

20

1712916F00
ref: 20
17798-39G00

CUSHION

€ 5.50

21

0925009001
ref: 21

CAP(OD:14)

€ 1.00

22

4735541F00
ref: 22
47355-41F01

CAP

€ 3.00
