HEADLAMP HOUSING (MODEL K5)

VL800 VOLUSIA 2001 (K1) USA (E03)

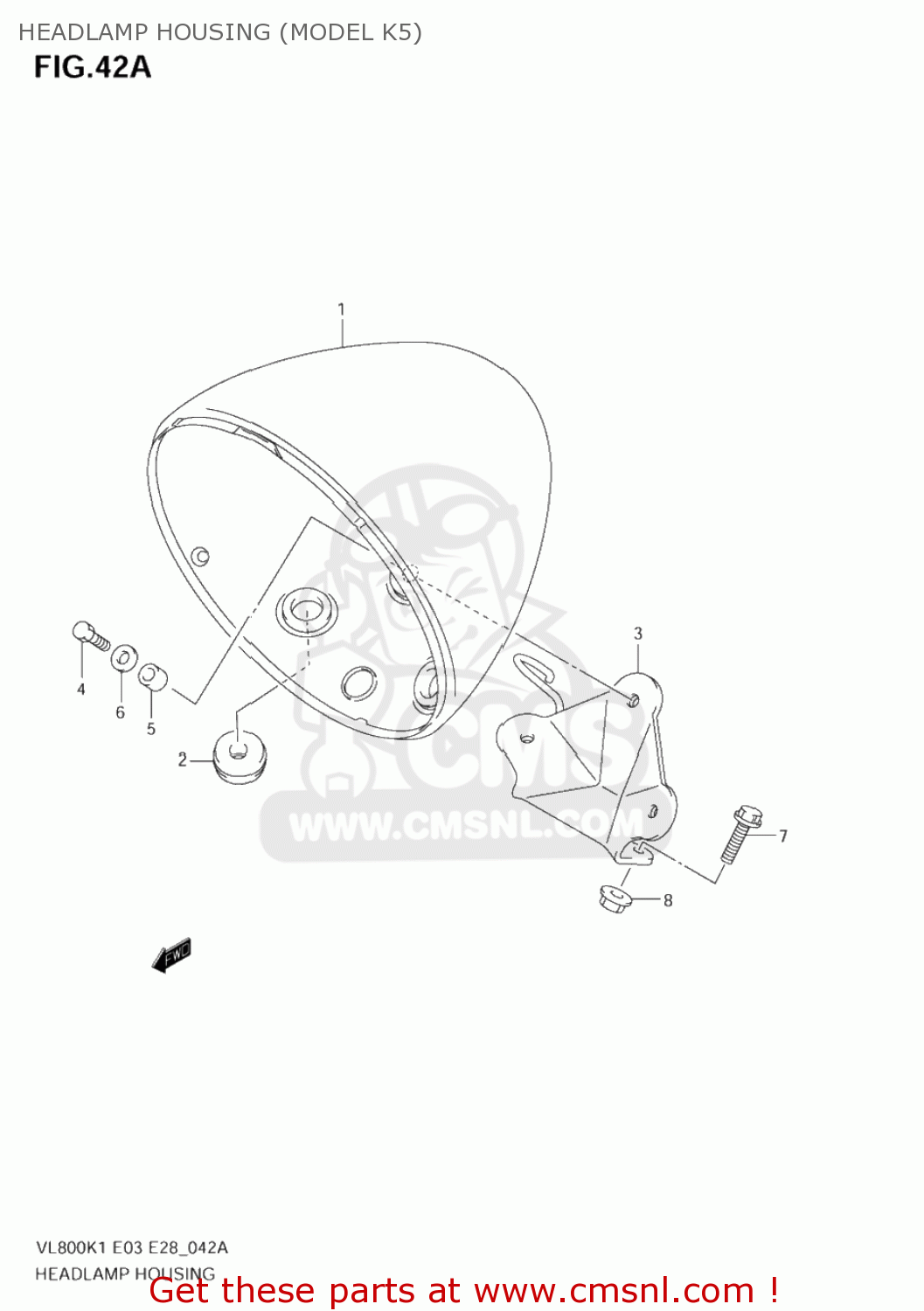

Headlamp housing (model k5) diagram VL800 VOLUSIA 2001 (K1) USA (E03)

prices are in EUR

ref

part #

description

quantity

5180010FA0
ref: 1

HOUSING ASSY,HEADLAMP

€ 225.00

0932009010
ref: 2

CUSHION

€ 2.50

5185041FA0
ref: 3

BRACKET,HEADLAMP HOUSING

€ 294.00

0150006253
ref: 4
01500-0625A

BOLT

€ 2.50

0918006307
ref: 5

SPACER(6.5X9X10)

€ 3.00

0916006077
ref: 6

WASHER(6.5X20X1.2)

€ 2.00

0155008253
ref: 7
01550-0825A

BOLT

€ 2.50

0831931083
ref: 8
08319-3108A

NUT

€ 2.50
