PROPELLER SHAFT - FINAL DRIVE GEAR

VL800 VOLUSIA 2001 (K1) USA (E03)

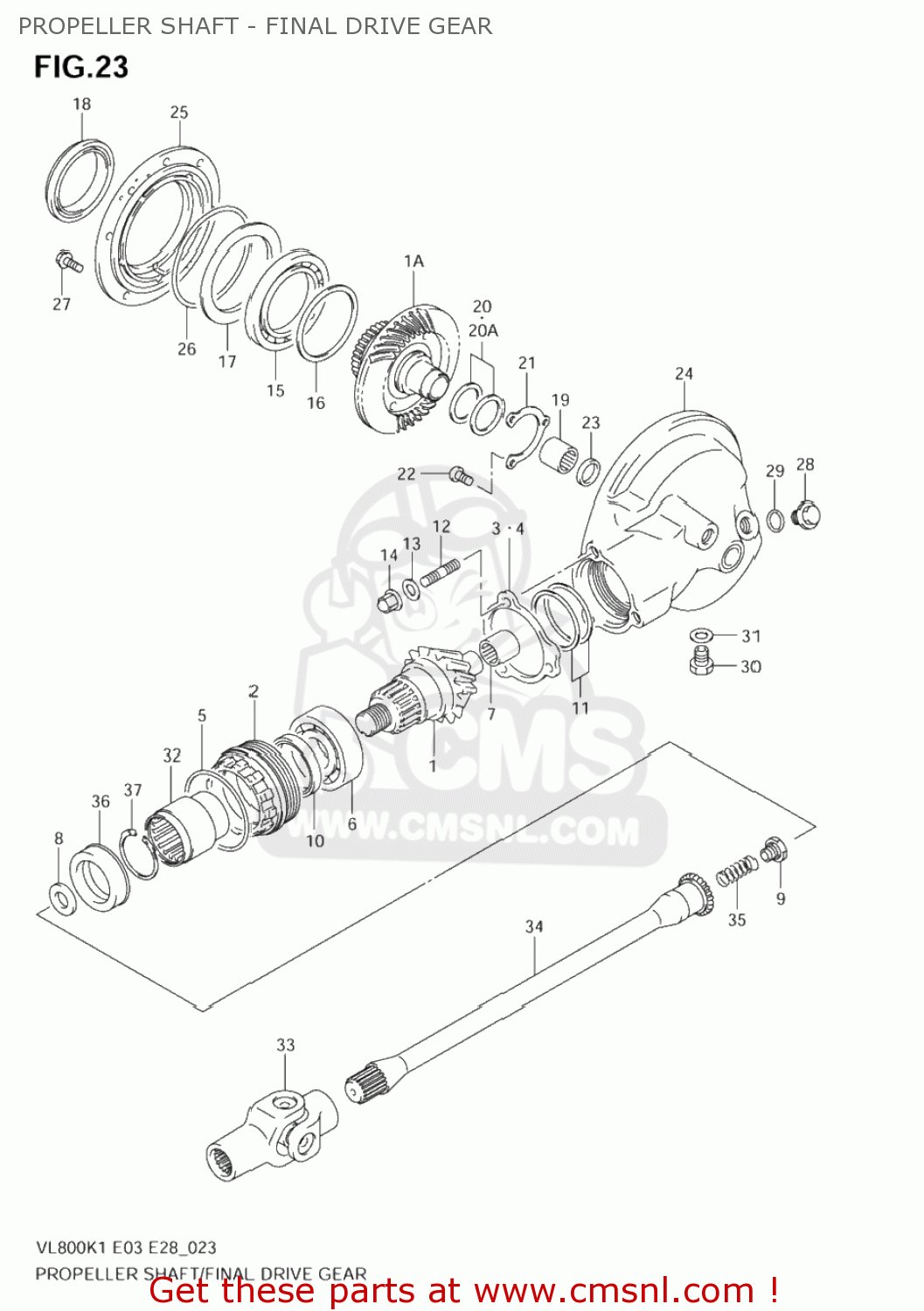

Propeller shaft - final drive gear diagram VL800 VOLUSIA 2001 (K1) USA (E03)

PROPELLER SHAFT - FINAL DRIVE GEAR VL800 VOLUSIA 2001 (K1) USA (E03)
PROPELLER SHAFT - FINAL DRIVE GEAR VL800 VOLUSIA 2001 (K1) USA (E03)
PROPELLER SHAFT - FINAL DRIVE GEAR VL800 VOLUSIA 2001 (K1) USA (E03)
prices are in EUR
ref
part #
description
quantity

2730038850
ref:
27300-38851
GEAR&CASE SET,
€ 2,424.00
1
2731138A00
ref: 1
GEAR,FINAL DRIVE BEVEL(NT:11)
2731138A00
€ 219.50
1A
2732045C01
ref: 1A
GEAR,FINAL DRIVEN BEVEL(NT:34)
2732045C01
€ 321.00
2
2731238A00
ref: 2
STOPPER,FINAL DRIVE BEARING
2731238A00
€ 38.50
3
2731338A00
ref: 3
PLATE,BEARING STOPPER
2731338A00
€ 4.00
4
2731338A10
ref: 4
PLATE,BEARING STOPPER
2731338A10
€ 4.00
5
0928062002
ref: 5
O RING(D:1.9,ID:61.6)
0928062002
€ 3.00
6
0926730005
ref: 6
BEARING(30X62X23.8)
€ 58.00
7
0926317028
ref: 7
BEARING(17X32X16)
0926317028
€ 26.50
8
0916016029
ref: 8
WASHER(16X29X4)
0916016029
€ 6.00
9
0915916010
ref: 9
NUT
0915916010
€ 9.00
10
0928338009
ref: 10
SEAL,OIL(38X54X6)
0928338009
€ 11.50
11
2744538810
ref: 11
SHIM SET,FINAL DRIVE GEAR
2744538810
€ 14.50
11
2744538810
ref: 11
SHIM SET,FINAL DRIVE GEAR
2744538810
€ 14.50
12
0910810095
ref: 12
BOLT,STUD
0910810095
€ 4.00
13
0916410008
ref: 13
WASHER
0916410008
€ 1.50
14
0915910026
ref: 14
NUT
0915910026
€ 6.00
15
0926270001
ref: 15
BEARING(70X110X13)
0926270001
€ 78.50
16
2732734810
ref: 16
SHIM SET,DRIVEN GEAR BEARING
2732734810
€ 20.00
16
2732734810
ref: 16
SHIM SET,DRIVEN GEAR BEARING
2732734810
€ 20.00
17
2732834200
ref: 17
PLATE,FINAL DRIVEN BRG OIL
2732834200
€ 4.00
18
0928970001
ref: 18
SEAL,OIL(70X96X16)
0928970001
€ 41.50
19
0926332007
ref: 19
BEARING(32X46X17.7)
0926332007
€ 44.00
20
2732634820
ref: 20
SHIM SET,FINAL DRIVEN GEAR
2732634820
€ 12.50
20
2732634820
ref: 20
SHIM SET,FINAL DRIVEN GEAR
2732634820
€ 12.50
20A
2732634810
ref: 20A
SHIM SET,FINAL DRIVE GEAR
2732634810
€ 8.00
21
2732934200
ref: 21
RETAINER,FINAL DRIVEN GEAR BRG
€ 4.50
22
0211206123
ref: 22
02112-0612A
SCREW
0211206123
€ 1.50
23
0928330028
ref: 23
SEAL,OIL(30X42X7)
0928330028
€ 7.50
24
2745038A12
ref: 24
CASE,FINAL
2745038A12
€ 815.50
25
2746007A01
ref: 25
CASE,FINAL GEAR BEARING
2746007A01
€ 118.50
26
0928000015
ref: 26
O RING(D:3.5,ID:131.6)
0928000015
€ 9.50
27
0155008253
ref: 27
01550-0825A
BOLT
0155008253
€ 2.50
28
0924718001
ref: 28
PLUG
0924718001
€ 8.00
29
0928018004
ref: 29
O RING(D:2.4,ID:17.8)
0928018004
€ 5.50
30
0924714002
ref: 30
PLUG(MAGNETO)
0924714002
€ 5.00
31
0916814002
ref: 31
09168-14004
GASKET(13.8X18.8X4.8) (NAS)
0916814002
€ 2.50
32
2717238A00
ref: 32
COUPLING,FINAL DRIVE GEAR
2717238A00
€ 41.50
33
2710038A50
ref: 33
27100-38A60
YOKE COMP,UNIVERSAL JOINT
€ 247.00
34
2715141F00
ref: 34
SHAFT,PROPELLER
2715141F00
€ 149.50
35
0944018019
ref: 35
SPRING
0944018019
€ 3.00
36
0928330051
ref: 36
SEAL,OIL(28.4X48X15)
0928330051
€ 9.00
37
0938140003
ref: 37
CIRCLIP
0938140003
€ 5.00
