FUEL TANK (VL800K6/TK6)

VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

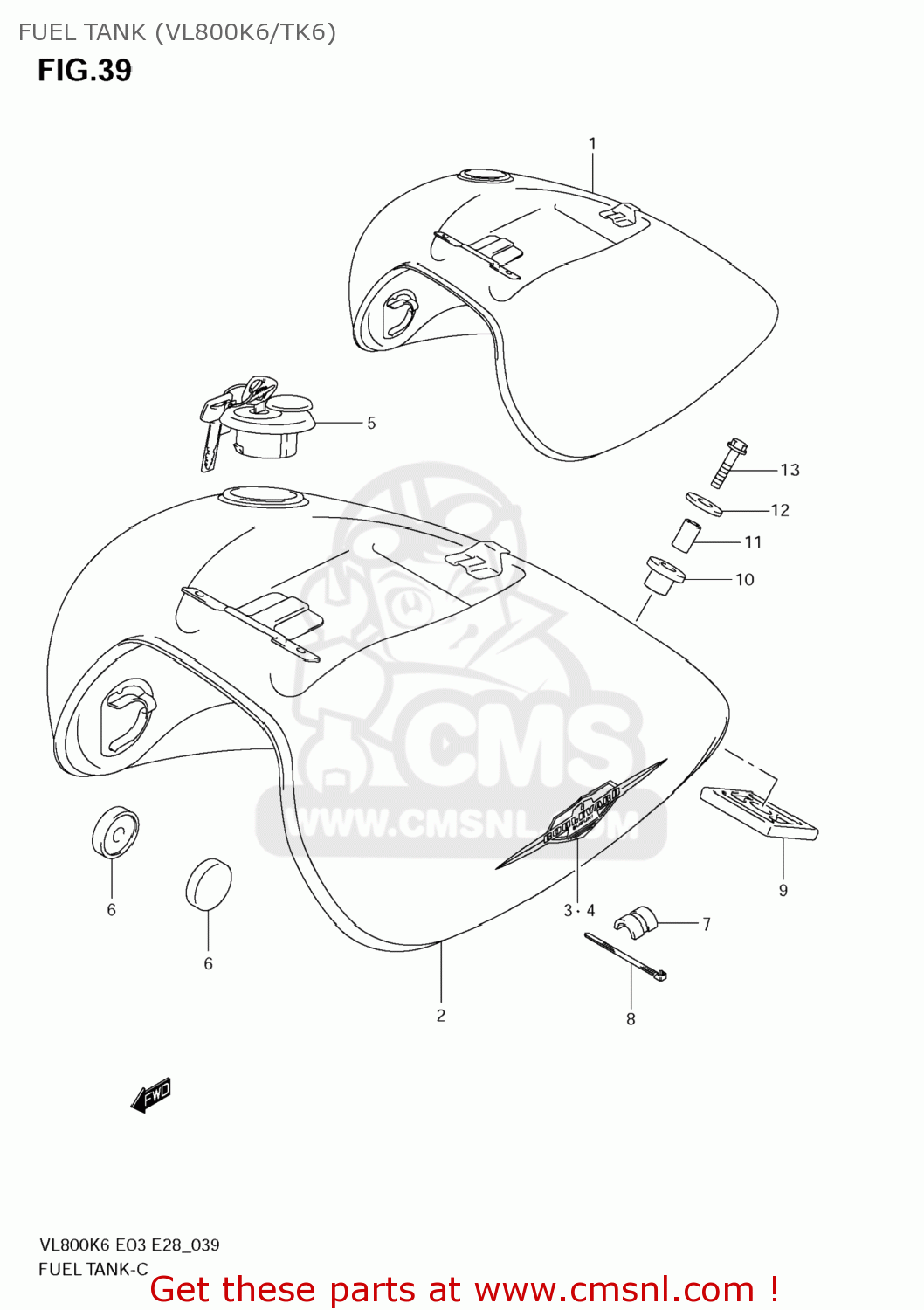

Fuel tank (vl800k6/tk6) diagram VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

FUEL TANK (VL800K6/TK6) VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

FUEL TANK (VL800K6/TK6) VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4410041FD0YAY
ref: 1-1

TANK ASSY,FUEL(BLACK)

€ 0.00

1-2

4410041FF0YAY
ref: 1-2

TANK ASSY,FUEL(BLACK)

€ 0.00

1-3

4410041FD0YHF
ref: 1-3

TANK ASSY,FUEL(GRAY)

€ 0.00

1-4

4410041FF0YHF
ref: 1-4

TANK ASSY, FUEL (GRAY)

€ 0.00

2-1

4410041FK0YHG
ref: 2-1

TANK ASSY,FUEL(GRAY)

€ 0.00

2-2

4410041FK0YAR
ref: 2-2

TANK ASSY,FUEL(BLUE)

€ 0.00

2-3

4410041FM0YHG
ref: 2-3

TANK ASSY,FUEL(GRAY)

€ 0.00

2-4

4410041FM0YAR
ref: 2-4

TANK ASSY,FUEL(BLUE)

€ 0.00

3

6811141F30
ref: 3
68111-41F31

EMBLEM, RH

€ 43.00

4

6812141F30
ref: 4
68121-41F31

EMBLEM, LH

€ 43.00

5-1

4420041810
ref: 5-1

CAP SET,FUEL TANK

€ 153.00

5-2

4420041820
ref: 5-2

CAP SET,FUEL TANK

€ 131.50

6

0932910007
ref: 6

CUSHION

€ 3.00

7

4454114F10
ref: 7

CUSHION,FUEL TANK LWR

€ 5.00

8

0940725402
ref: 8

CLAMP(L:250)

€ 4.50

9

4454241F00
ref: 9

CUSHION,FUEL TANK RR LWR

€ 8.00

10

4454141F01
ref: 10

CUSHION,FUEL TANK RR UPR

€ 6.50

11

0918008057
ref: 11

SPACER (8.2X12.5X23.5)

€ 2.00

12

0916008140
ref: 12
09160-08146

WASHER (8.5X33X1.6)

€ 3.00

13

0155008353
ref: 13
01550-0835A

BOLT

€ 3.50
