SEAT (VL800TK6/CK6/TK7/TK8)

VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

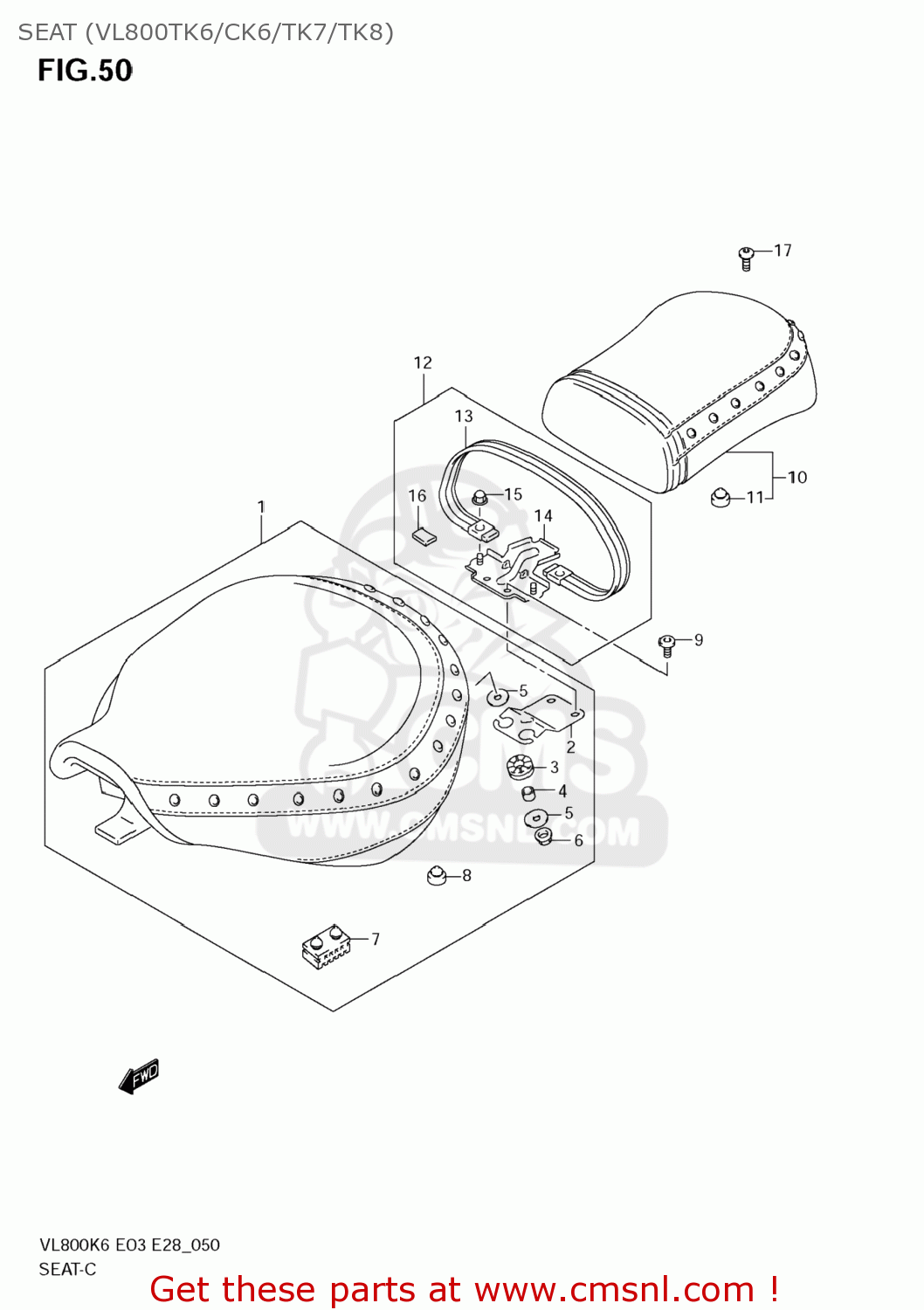

Seat (vl800tk6/ck6/tk7/tk8) diagram VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

SEAT (VL800TK6/CK6/TK7/TK8) VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

SEAT (VL800TK6/CK6/TK7/TK8) VL800T BOULEVARD C50 2007 (K7) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4510041F2148H
ref: 1

SEAT ASSY(BLACK)

€ 277.00

2

4511541F00
ref: 2

BRACKET,SEAT

€ 16.00

3

4514941F00
ref: 3

CUSHION

€ 6.50

4

0918007004
ref: 4

SPACER(6.5X10.5X12)

€ 2.50

5

0916006501
ref: 5

WASHER(6.5X24X1.6)

€ 2.00

6

083161006B
ref: 6

NUT

€ 2.50

7

4514931300
ref: 7

CUSHION,SEAT(40X20X15)

€ 2.00

8

0932110002
ref: 8

CUSHION(11.5X22X20)

€ 2.00

9

0910606064
ref: 9

BOLT(6X18)

€ 6.00

10

4530041F2048H
ref: 10

SEAT ASSY,PILLION

€ 221.00

11

0932110002
ref: 11

CUSHION(11.5X22X20)

€ 2.00

12

4518041F0148H
ref: 12

BAND ASSY,SEAT(BLACK)

€ 61.00

13

4518141F01
ref: 13

BAND,SEAT

€ 25.50

14

4518541F00
ref: 14

BRACKET,SEAT BAND

€ 41.00

15

083132006B
ref: 15

NUT

€ 2.00

16

6154494500
ref: 16

PAD

€ 2.00

17

0910608140
ref: 17

BOLT(8X16)

€ 6.00
