AIR CLEANER (MODEL K6/K7/K8)

VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

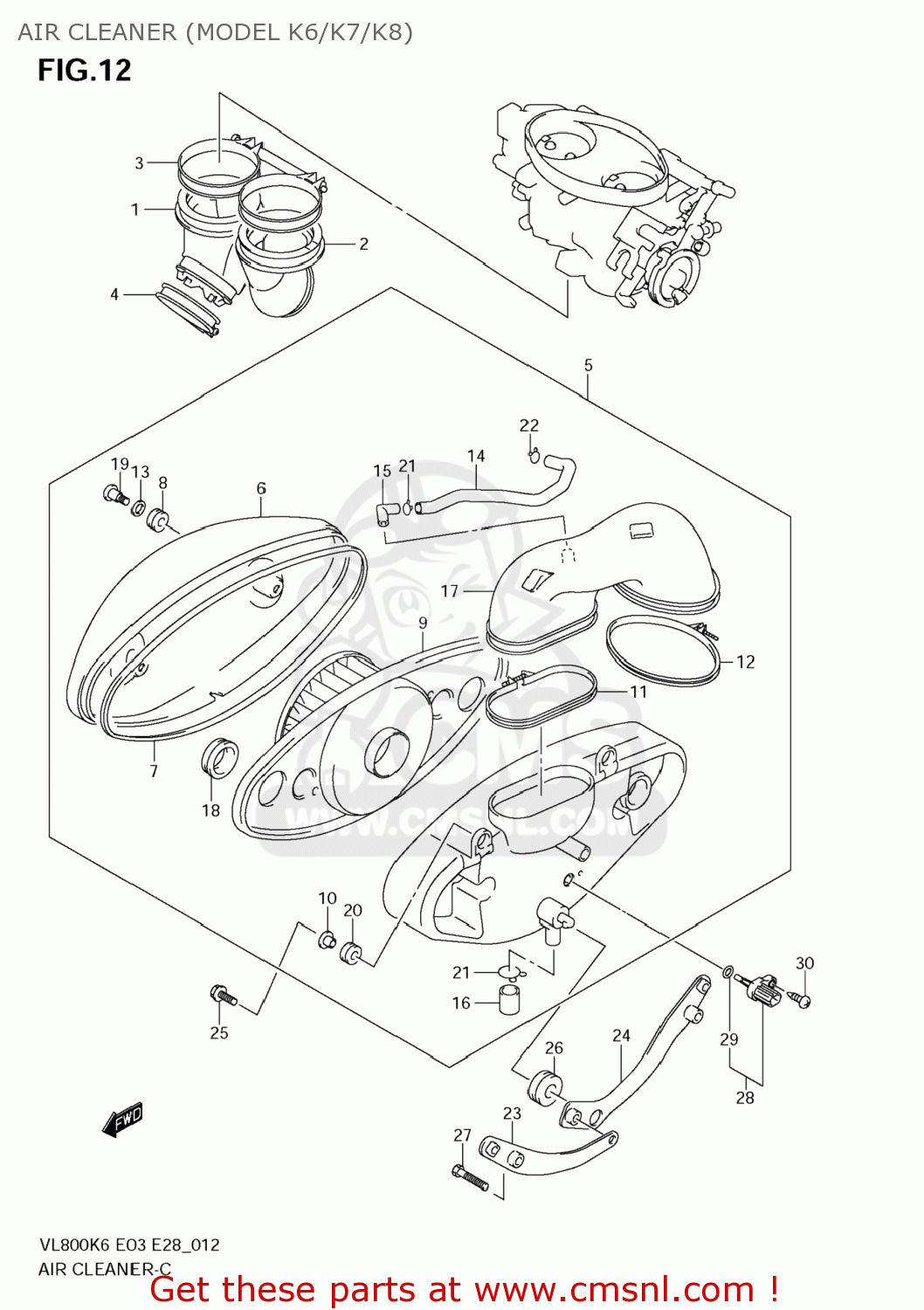

Air cleaner (model k6/k7/k8) diagram VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K6/K7/K8) VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

AIR CLEANER (MODEL K6/K7/K8) VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

1311141F00
ref: 1

PIPE,INTAKE NO.1

€ 26.00

2

1312141F00
ref: 2

PIPE,INTAKE NO.2

€ 26.00

3

1317041F00
ref: 3

CLAMP,INTAKE PIPE

€ 27.00

4

1317015G00
ref: 4

CLAMP,INTAKE PIPE

€ 4.00

5

1370041F20
ref: 5

CLEANER ASSY,AIR

€ 408.00

6

1374141F00
ref: 6

CAP,AIR CLEANER

€ 186.50

7

1374641F00
ref: 7

GASKET (NAS)

€ 13.50

8

1374741F00
ref: 8

CUSHION

€ 2.50

9

1378041F20
ref: 9

FILTER ASSY

€ 52.00

10

1381229C50
ref: 10

COLLAR,CLEANER CASE

€ 1.50

11

1382641F00
ref: 11

CLAMP

€ 18.00

12

1382641F11
ref: 12

CLAMP

€ 26.50

13

1383341F00
ref: 13

WASHER

€ 3.50

14

1385341F10
ref: 14

TUBE,BREATHER

€ 21.50

15

1385814D20
ref: 15

JOINT

€ 6.00

16

1385941B10
ref: 16

PLUG

€ 5.50

17

1388141F10
ref: 17

TUBE,OUTLET

€ 89.00

18

1389141F20
ref: 18

TUBE,INLET

€ 7.50

19

0913906087
ref: 19
09139-06126

SCREW(6X20)

€ 4.00

20

0932009016
ref: 20

CUSHION

€ 2.50

21

0940114301
ref: 21

CLIP

€ 2.00

22

0940116301
ref: 22

CLAMP

€ 2.50

23

1376041F00
ref: 23

BRACKET,AIR CLEANER FR

€ 15.50

24

1377041F00
ref: 24

BRACKET,AIR CLEANER RR

€ 22.50

25

0913906063
ref: 25

SCREW(6X20)

€ 4.00

26

0932008018
ref: 26

CUSHION

€ 4.00

27

015000625B
ref: 27

BOLT

€ 2.50

28

1365041F10
ref: 28

SENSOR,AIR TEMP

€ 41.50

29

1365541F10
ref: 29

O RING

€ 7.00

30

035110516B
ref: 30

SCREW

€ 2.50
