Buy Suzuki VL Parts Online


FRONT FENDER (VL800TK8)

VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

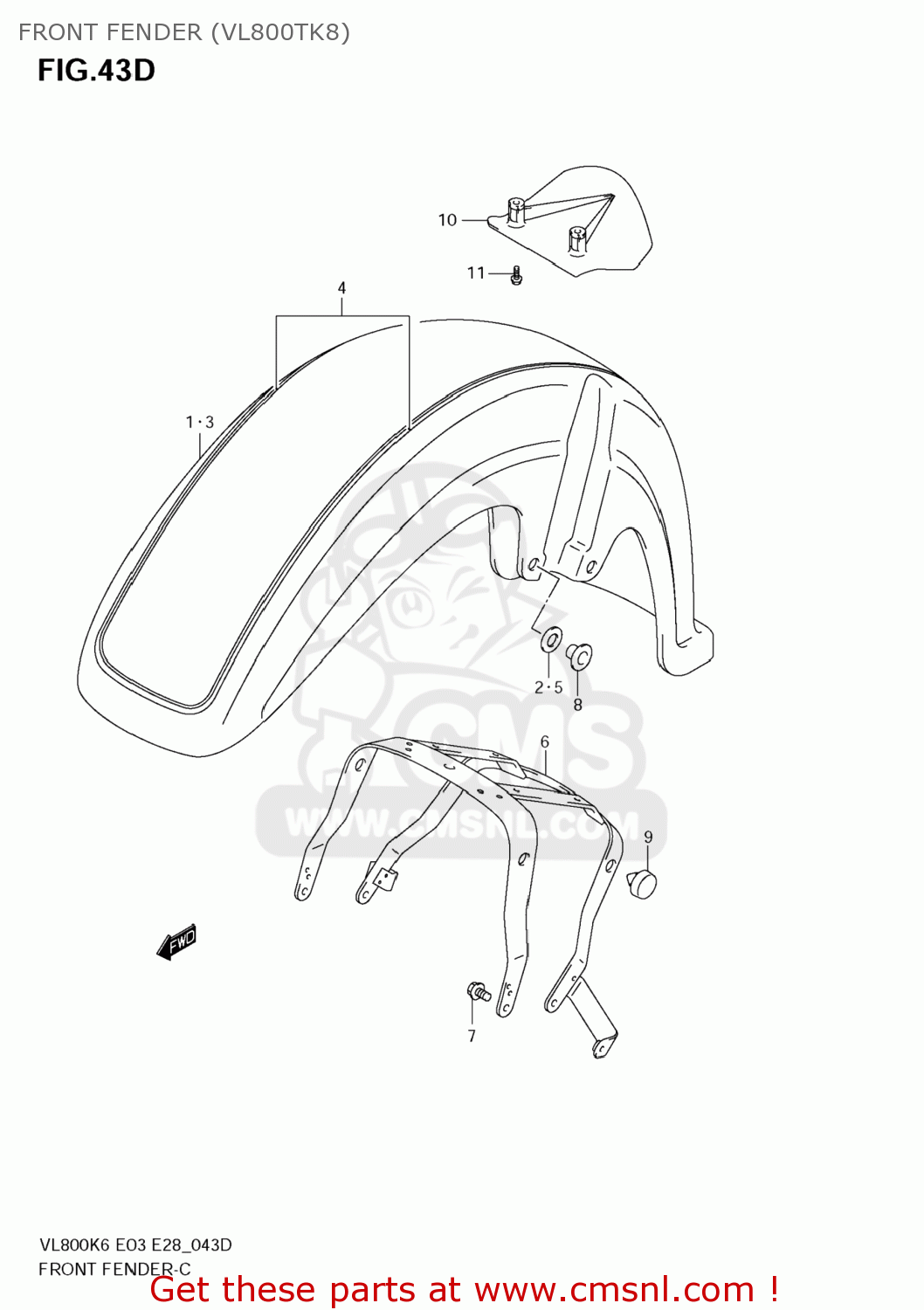

Front fender (vl800tk8) diagram VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

FRONT FENDER (VL800TK8) VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
FRONT FENDER (VL800TK8) VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
FRONT FENDER (VL800TK8) VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
5311041F80YAY
ref: 1
FENDER,FR
5311041F80YAY
€ 269.50
2
5312141FA0
ref: 2
CUSHION,FR FENDER
5312141FA0
€ 2.50
3
5311041FC0EUB
ref: 3
FENDER,FR
€ 420.00
4
6815041F60EVV
ref: 4
TAPE SET,FR FENDER
€ 127.50
5
5312141FA0
ref: 5
CUSHION,FR FENDER
5312141FA0
€ 2.50
6
5312041F12
ref: 6
BRACE,FR FENDER
€ 75.00
7
015500620B
ref: 7
BOLT
015500620B
€ 2.50
8
5327641F10
ref: 8
WASHER,FR FENDER
5327641F10
€ 4.00
9
0932110007
ref: 9
CUSHION
0932110007
€ 4.50
10
5318141F00
ref: 10
WING,FR
€ 7.00
11
0911306001
ref: 11
BOLT(6X16)
0911306001
€ 3.00
up
