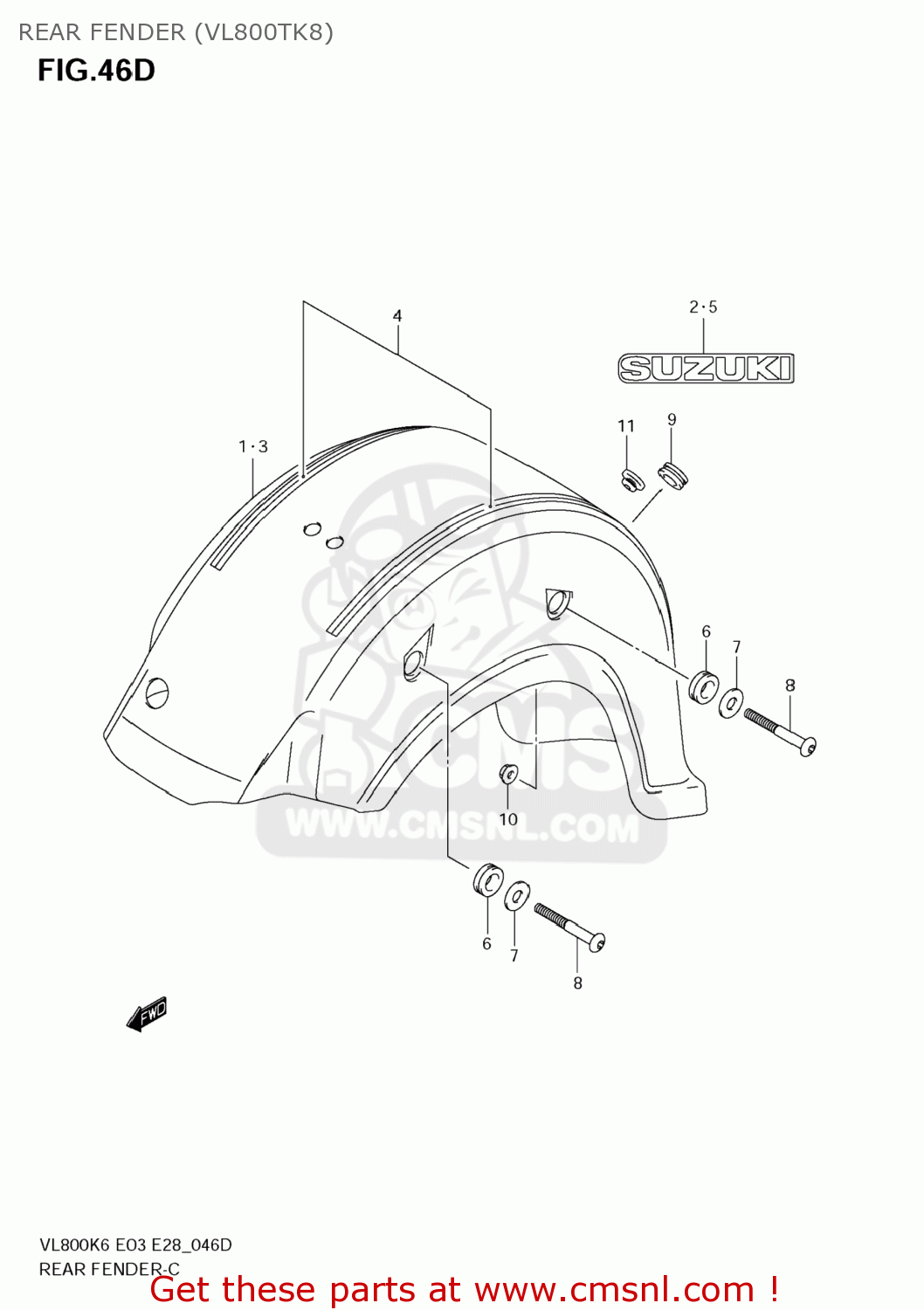

REAR FENDER (VL800TK8)

VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

Rear fender (vl800tk8) diagram VL800T BOULEVARD C50 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

6311041F70YAY
ref: 1

FENDER,RR

€ 498.50

6827134A00YES
ref: 2

EMBLEM,SUZUKI

€ 6.50

6311041FH0EUB
ref: 3

FENDER,RR

€ 458.00

6817041F70EVV
ref: 4

TAPE SET,RR FENDER

€ 101.50

6827134A00YJH
ref: 5

EMBLEM,SUZUKI

€ 8.50

4719124F00
ref: 6

CUSHION,FRAME COVER UPR RR

€ 3.00

0916015002
ref: 7

WASHER(15.5X26X2.3)

€ 2.00

6316141F00
ref: 8

BOLT,RR FENDER

€ 5.00

0932015008
ref: 9

CUSHION

€ 3.50

083161008B
ref: 10

NUT

€ 3.00

0932110007
ref: 11

CUSHION

€ 4.50
