CLUTCH

VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

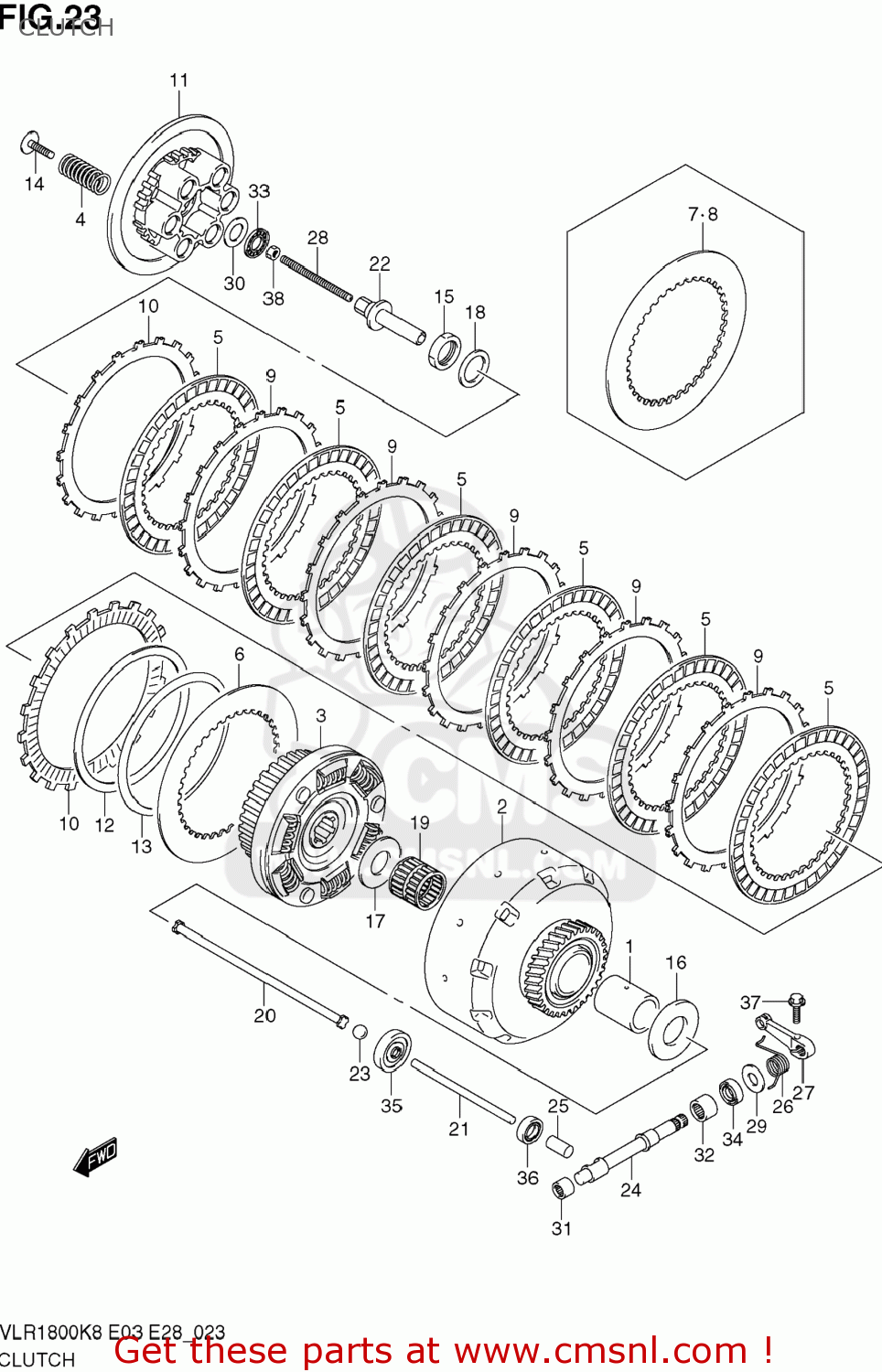

Clutch diagram VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

CLUTCH VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
CLUTCH VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
CLUTCH VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)
prices are in EUR
ref
part #
description
quantity
1
2115148G00
ref: 1
SPACER,PRIMARY DRIVE GEAR
2115148G00
€ 30.50
2
2110048G01
ref: 2
GEAR ASSY,PRIMARY DRIVE
2110048G01
€ 212.50
3
2141048G00
ref: 3
HUB,CLUTCH SLEEVE
2141048G00
€ 505.00
4
2141335F10
ref: 4
SPRING,CLUTCH
2141335F10
€ 6.50
5
2144122H00
ref: 5
PLATE,CLUTCH DRIVE NO.1 (NAS)
2144122H00
€ 26.00
6
2144148G10
ref: 6
21441-48G40
PLATE,CLUTCH D
2144148G10
€ 9.50
7
2144148G20
ref: 7
21441-48G50
PLATE,CLUTCH D
2144148G20
€ 10.50
8
2144148G30
ref: 8
21441-48G60
PLATE,CLUTCH D
2144148G30
€ 10.50
9
2145122H00
ref: 9
PLATE,CLUTCH DRIVEN NO.1 (NAS)
2145122H00
€ 10.50
10
2145148G10
ref: 10
PLATE,CLUTCH DRIVEN NO.2 (NAS)
2145148G10
€ 19.00
11
2146248G00
ref: 11
DISC,CLUTCH PRESSURE
2146248G00
€ 42.00
12
2147148G00
ref: 12
SEAT,WAVE WASHER
2147148G00
€ 12.00
13
2147248G00
ref: 13
21472-48G10
WASHER,CLUTCH
2147248G00
€ 22.00
14
2148241G00
ref: 14
BOLT,CLUTCH SPRING
2148241G00
€ 3.00
15
0915924010
ref: 15
NUT
0915924010
€ 11.00
16
0916025056
ref: 16
WASHER(25X50X2.5)
0916025056
€ 9.50
17
0916025056
ref: 17
WASHER(25X50X2.5)
0916025056
€ 9.50
18
0916420008
ref: 18
WASHER
0916420008
€ 3.50
19
0926332020
ref: 19
BEARING(32X37X38.3)
0926332020
€ 28.00
20
2311024F00
ref: 20
ROD,CLUTCH
2311024F00
€ 17.50
21
2311148G00
ref: 21
ROD,CLUTCH PUSH,L
2311148G00
€ 12.50
22
2312141G00
ref: 22
PIECE,CLUTCH PUSH
2312141G00
€ 33.00
23
2312202FR0
ref: 23
BALL,CLUTCH PUSH PIECE
€ 61.00
24
2312248G00
ref: 24
CAMSHAFT,CLUTCH RELEASE
2312248G00
€ 36.50
25
2312341G00
ref: 25
CAP,CLUTCH PUSH ROD
2312341G00
€ 9.00
26
2312548G00
ref: 26
SPRING,CLUTCH RELEASE RETURN
2312548G00
€ 2.50
27
2327148G00
ref: 27
ARM,CLUTCH RELEASE
2327148G00
€ 48.50
28
0913406015
ref: 28
SCREW(6X73)
0913406015
€ 5.50
29
0916010020
ref: 29
WASHER(10.5X24X1)
0916010020
€ 2.00
30
0916015045
ref: 30
WASHER(15.5X28X1)
0916015045
€ 4.00
31
0926310014
ref: 31
BEARING(10X14X10)
0926310014
€ 12.00
32
0926312027
ref: 32
BEARING(12X18X12)
0926312027
€ 6.00
33
0926315003
ref: 33
BEARING(15X28X2)
0926315003
€ 7.00
34
0928210012
ref: 34
SEAL,OIL(10X20X6)
0928210012
€ 7.50
35
0928306010
ref: 35
SEAL,OIL(6X34X10.5)
0928306010
€ 14.00
36
0928510004
ref: 36
SEAL,OIL(10X17X5)
0928510004
€ 3.50
37
015500620A
ref: 37
BOLT
015500620A
€ 2.50
38
083100006A
ref: 38
NUT
083100006A
€ 2.00
