EVAP SYSTEM (E33)

VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

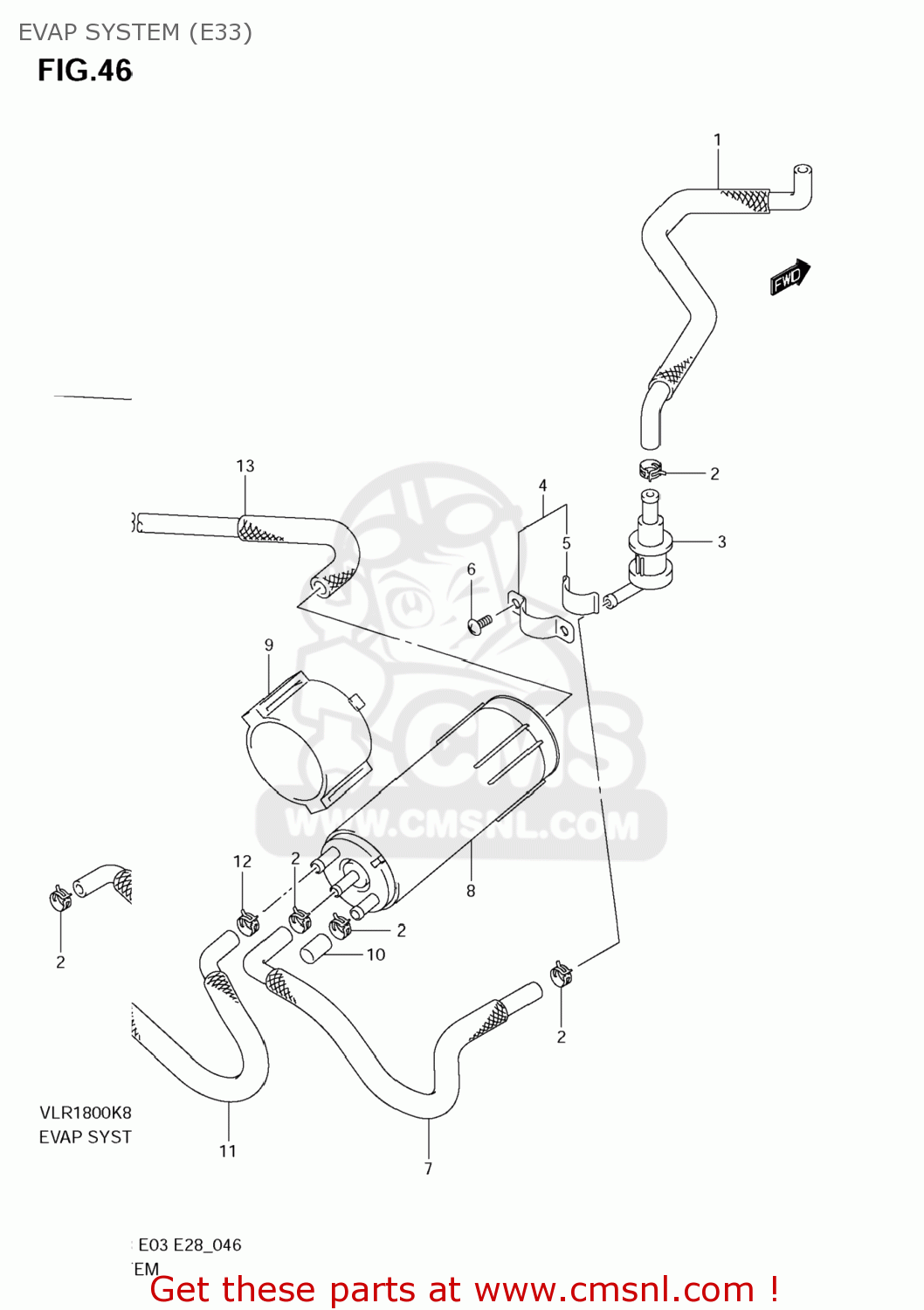

Evap system (e33) diagram VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

EVAP SYSTEM (E33) VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

EVAP SYSTEM (E33) VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1

4443422H00
ref: 1

HOSE,TANK & BREATHER VALVE

€ 29.00

2

0940111413
ref: 2

CLIP

€ 2.50

3

4424017C00
ref: 3

VALVE,FUEL TANK BREATHER

€ 40.00

4

4489224A00
ref: 4

PLATE,FUEL TANK BREATHER NO.2

€ 3.00

5

4489424A00
ref: 5

CUSHION

€ 1.50

6

021420408A
ref: 6

SCREW

€ 1.00

7

4443522H00
ref: 7

HOSE,BREATHER VALVE & CANISTER

€ 30.00

8

1721015H00
ref: 8

CANISTER ASSY,CHARCOAL

€ 201.50

9

4488322H00
ref: 9

CUSHION,CANISTER

€ 10.50

10

0925107005
ref: 10

CAP

€ 5.50

11

4443622H00
ref: 11

HOSE,CSTR PURGE

€ 35.00

12

0940112404
ref: 12

CLIP

€ 2.50

13

4443822H00
ref: 13

HOSE,DRAIN

€ 14.00
