FUEL TANK (VLR1800K8/K9)

VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

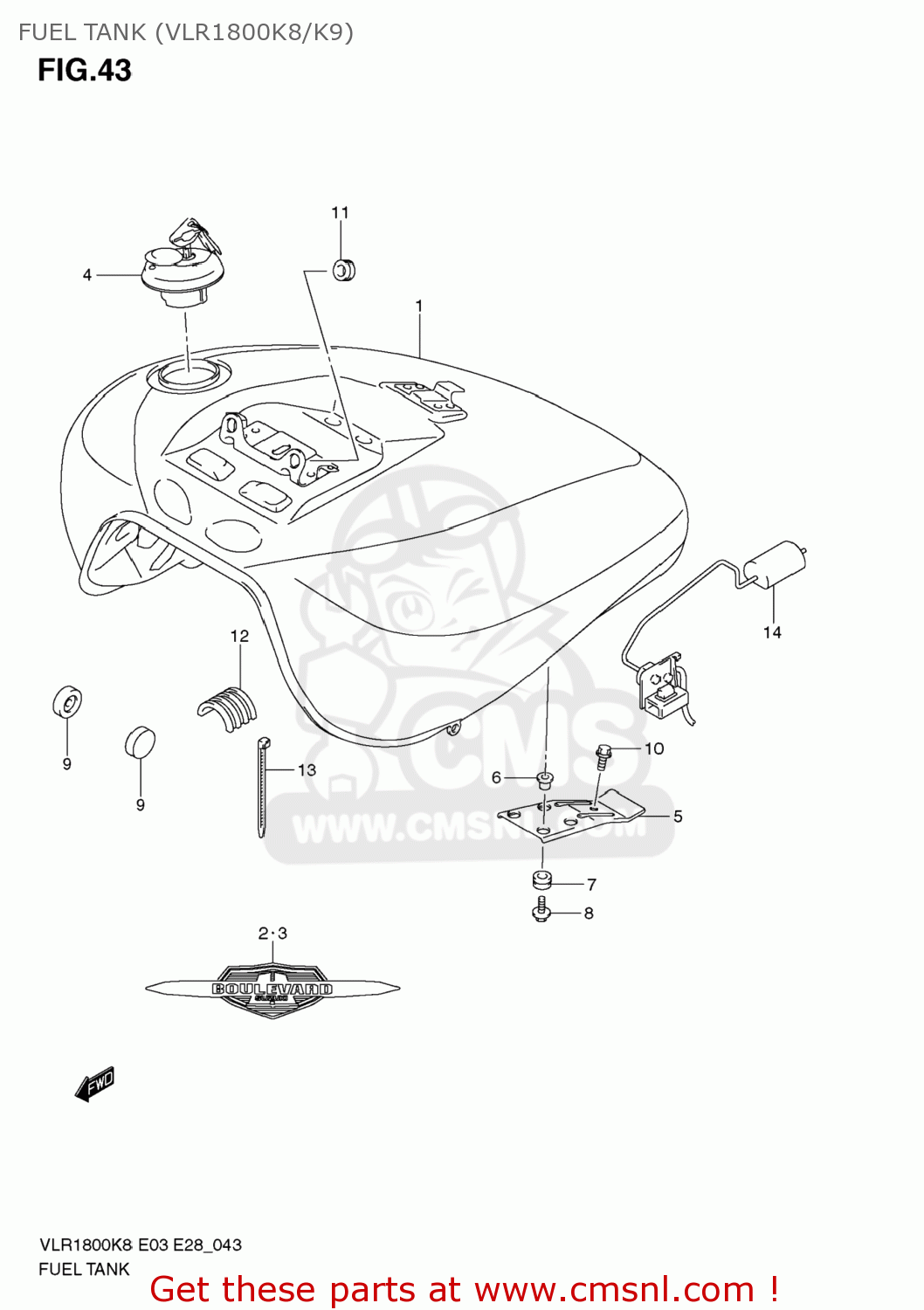

Fuel tank (vlr1800k8/k9) diagram VLR1800 BOULEVARD C109R 2008 (K8) USA CALIFORNIA (E03 E33)

prices are in EUR

ref

part #

description

quantity

1-1

4410022H00YAY
ref: 1-1
44100-22H31-YAY

TANK ASSY,FUEL(BLACK)

€ 977.50

1-2

4410022H00YMK
ref: 1-2
44100-22H30-YMK

TANK ASSY,FUEL(RED)

€ 902.00

1-3

4410022H00YKZ
ref: 1-3

TANK ASSY,FUEL(BLUE)

€ 902.00

1-4

4410022H20YAY
ref: 1-4

TANK ASSY,FUEL(BLACK)

€ 902.00

1-5

4410022H20YMK
ref: 1-5

TANK ASSY,FUEL(RED)

€ 902.00

1-6

4410022H20YKZ
ref: 1-6

TANK ASSY,FUEL(BLUE)

€ 0.00

6811122H00
ref: 2

EMBLEM,FUEL TANK,R

€ 64.50

6812122H00
ref: 3

EMBLEM,FUEL TANK,L

€ 64.50

4-1

4420041830
ref: 4-1

CAP SET,FUEL TANK

€ 164.50

4-2

4420041840
ref: 4-2

CAP SET,FUEL TANK

€ 114.00

4453022H00
ref: 5

BRACKET,FUEL TANK RR

€ 17.50

0916906062
ref: 6

WASHER

€ 3.00

0932008001
ref: 7

CUSHION

€ 3.50

0911606192
ref: 8

BOLT(6X20)

€ 2.00

0932910007
ref: 9

CUSHION

€ 3.00

015500812A
ref: 10

BOLT

€ 2.50

0932008013
ref: 11

CUSHION

€ 4.00

4454122H00
ref: 12

CUSHION,FUEL TANK SIDE

€ 10.50

0940730402
ref: 13

CLAMP(L:300)

€ 3.50

3481022H00
ref: 14

GAUGE ASSY,FUEL LEVEL SENDER

€ 129.00
