CYLINDER

VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

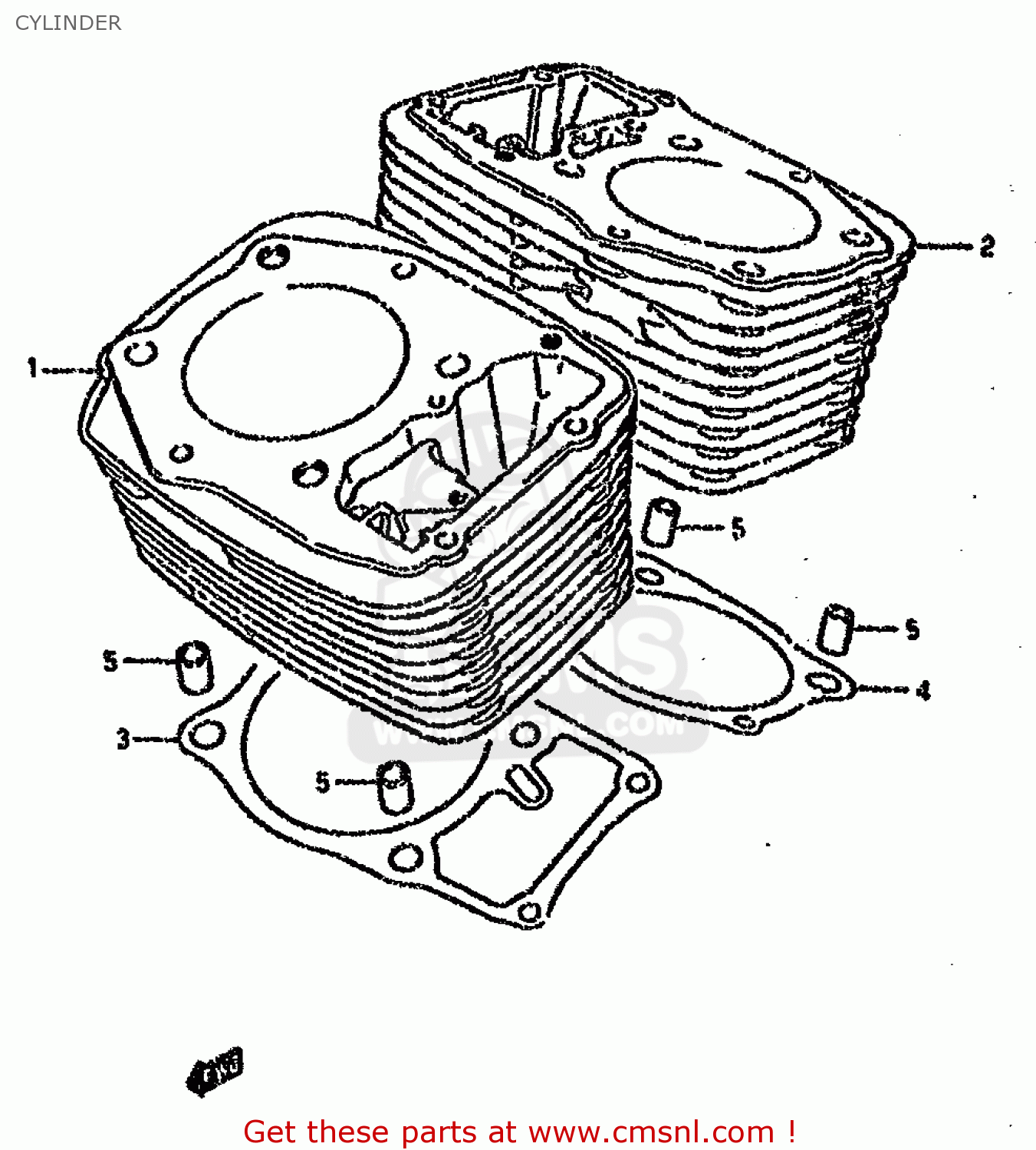

Cylinder diagram VS1400GLF 1988 (J) (E01 E02 E04 E15 E16 E17 E18 E22 25 34 39 77)

prices are in EUR

ref

part #

description

quantity

1-1

1121038B01
ref: 1-1
MODEL H/J/K/L/M/N/P

CYLINDER

€ 666.50

1-2

1121038B02
ref: 1-2
MODEL R/S

CYLINDER,FRONT

€ 666.50

2-1

1122038B01
ref: 2-1
MODEL H/J/K/L/M/N/P

CYLINDER

€ 563.50

2-2

1122038B02
ref: 2-2
MODEL R/S

CYLINDER,REAR

€ 563.50

1124138B00H17
ref: 3

GASKET,CYLINDER FR (NAS)

€ 26.00

1124238B00H17
ref: 4

GASKET,CYLINDER RR (NAS)

€ 23.50

5-1

0920613001
ref: 5-1
MODEL H/J/K/L/M/N/P

PIN

€ 2.50

5-2

0421113189
ref: 5-2
MODEL R/S

PIN

€ 2.50
